ALDP105

Panasonic PCB relay series LD-P

  • relays in a slim design for PCB mounting

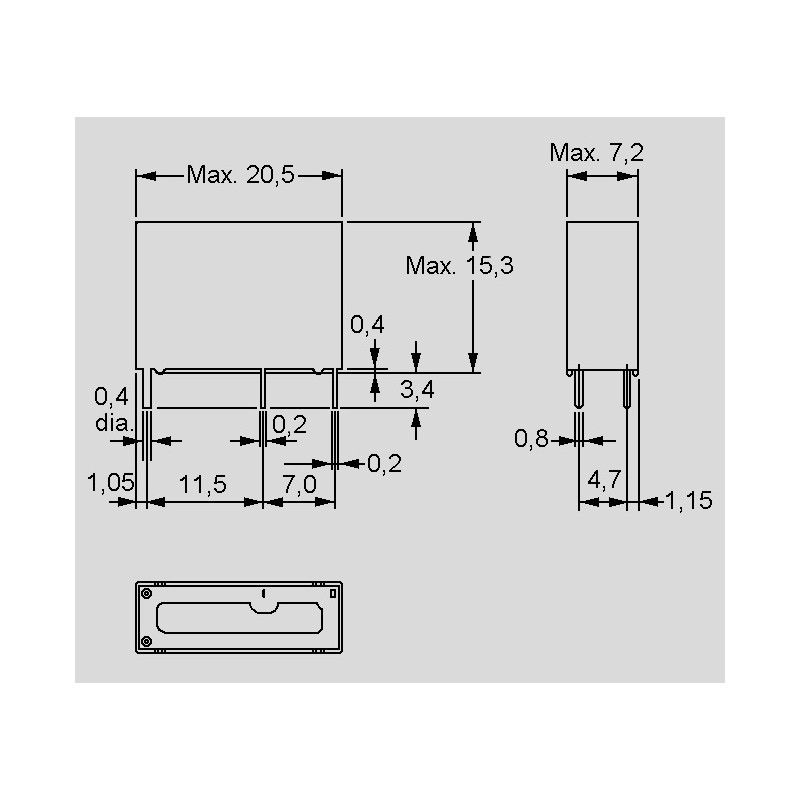

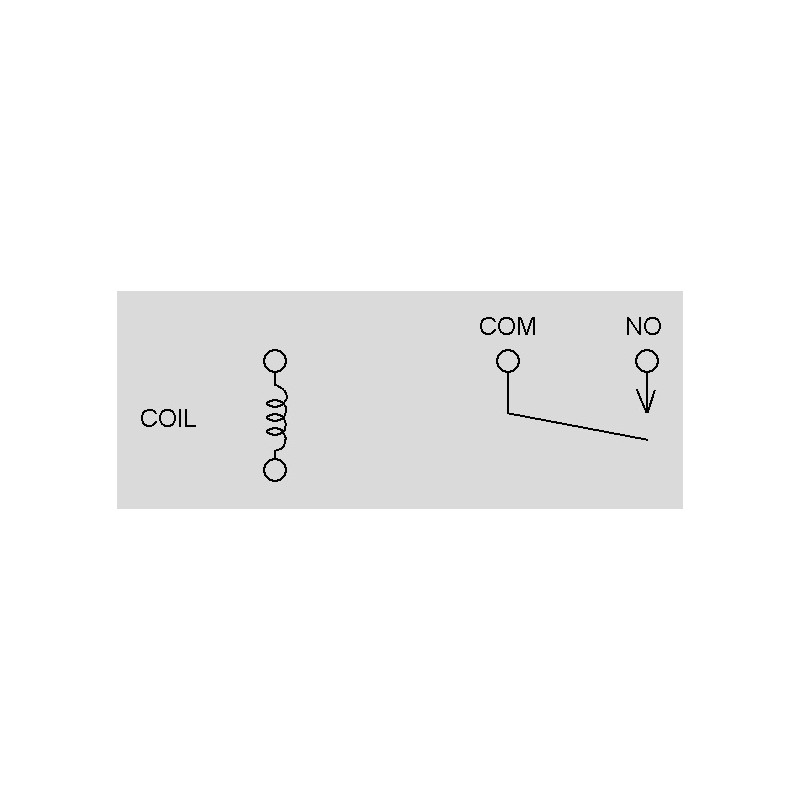

  • with a normally open contact, a high insulation and a depth of 7,2mm
  • dielectric strength of >10000V between contacts and coil
  • contact material: AgNi
  • switching current: 5A

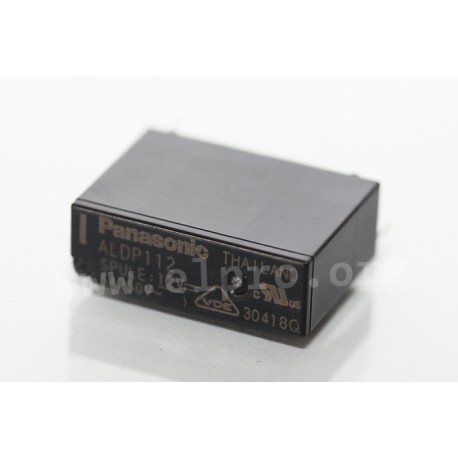

LD-P series by Panasonic

ALDP105

114250 ALDP105 ALDP105 Panasonic PCB relay series LD-P. relays in a slim design for PCB mounting with a normally open contact, a high insulation and a depth of 7,2mm dielectric strength of >10000V between contacts and coil contact material: AgNi switching current: 5A

Specifications

manufacturer
Manufacturer's name ALDP105
Nominal voltage [V] 5
Nominal resistance [Ω] 125
Switching current [A] 5
Nominal capacity [mW] 200
Data Sheet

Unit price

0,689 €

Stock: 660
Further delivery:
CW 06/2025

Minimum order quantity 10 units or
multiples of 10.
