EEFJX0E471RE

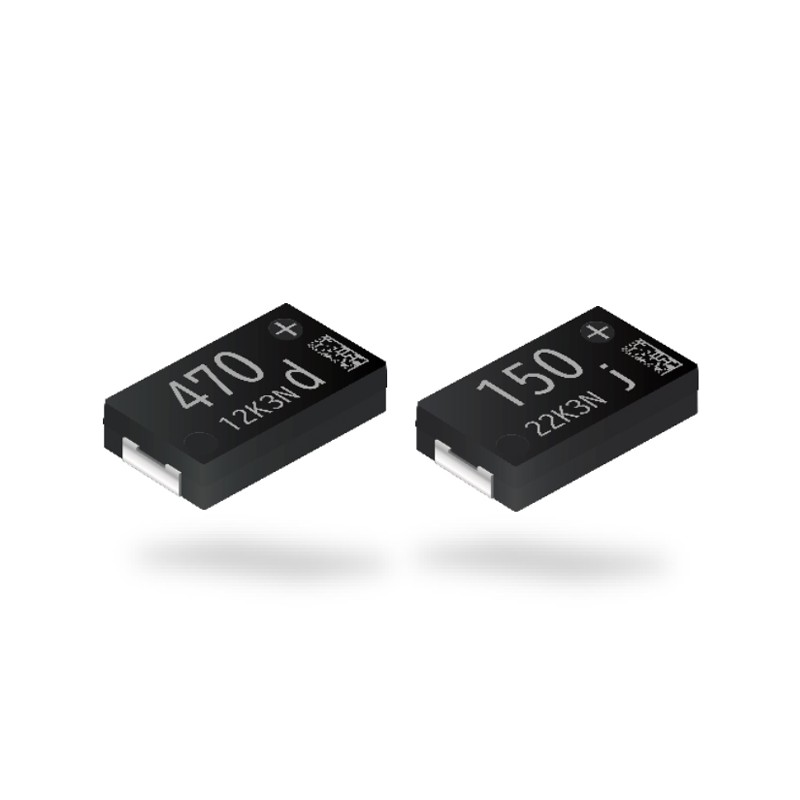

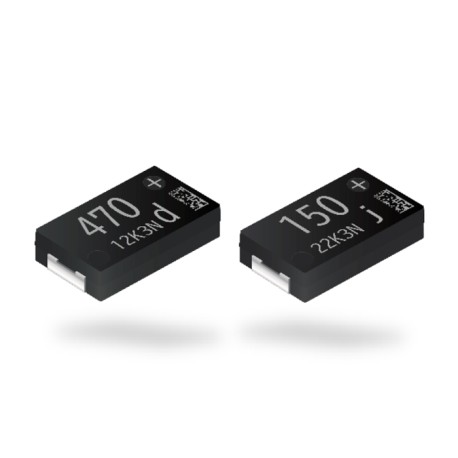

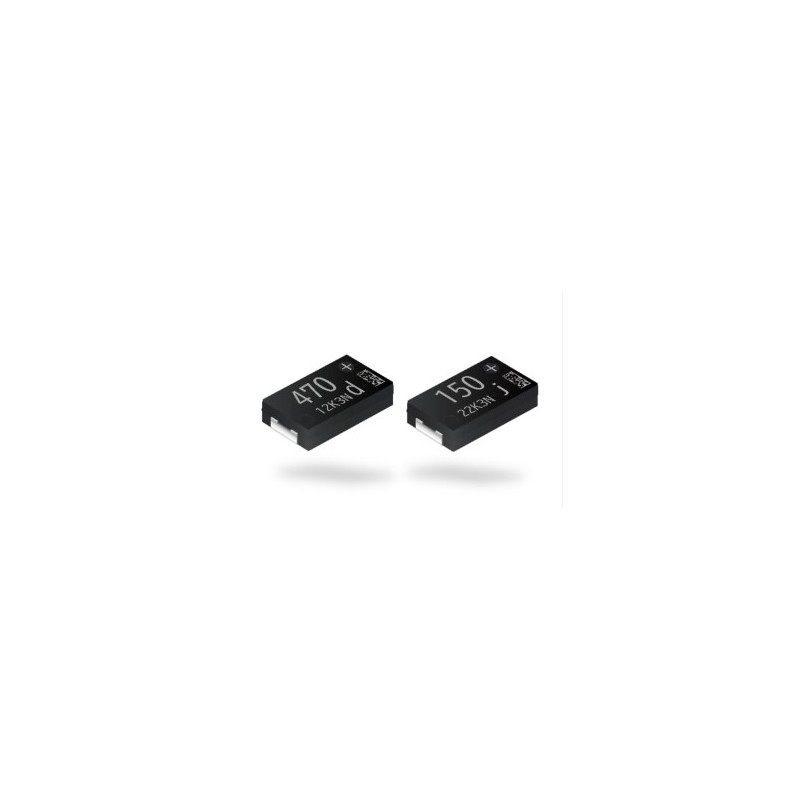

Panasonic electrolytic capacitor series JX

Polymer aluminium electrolytic capacitors in an SMD housing with a very low ESR (3 to 15mΩ) and a long service life (3000h at +125°C). These caps have a low profile and a high reliability. They are suitable for temperatures of up to +125°C and have a tolerance of ±20%. We offer the following types of this Panasonic series: EEFJX0E221RE, EEFJX0E331RE, EEFJX0E471RE, EEFJX0E471RC, EEFJX0E471RB and EEFJX0J151RF.

  • rated voltage: 2,5 to 6,3V DC
  • capacitance tolerance: ±20%
  • operating temperature: -55 to +125°C
  • taped
EEFJX0E471RE, Panasonic electrolytic capacitors, SMD, 125°C, low ESR, polymer aluminium, SP-Cap, JX series

EEFJX0E471RE

246136 EEFJX0E471RE EEFJX0E471RE Panasonic electrolytic capacitor series JX. Polymer aluminium electrolytic capacitors in an SMD housing with a very low ESR (3 to 15mΩ) and a long service life (3000h at +125°C). These caps have a low profile and a high reliability. They are suitable for temperatures of up to +125°C and have a tolerance of ±20%. We offer the following types of this Panasonic series: EEFJX0E221RE, EEFJX0E331RE, EEFJX0E471RE, EEFJX0E471RC, EEFJX0E471RB and EEFJX0J151RF. rated voltage: 2,5 to 6,3V DC capacitance tolerance: ±20% operating temperature: -55 to +125°C taped

Specifications

manufacturer
Manufacturer's name EEFJX0E471RE
Nominal voltage [V DC] 2,5
Impedance [mΩ] 9
Capacity [µF] 470
Tolerance [%] ±20
Data Sheet

Unit price

1,24 €

Stock: 50
Further delivery:
CW 40/2025

Minimum order quantity 50 units or
multiples of 50.
