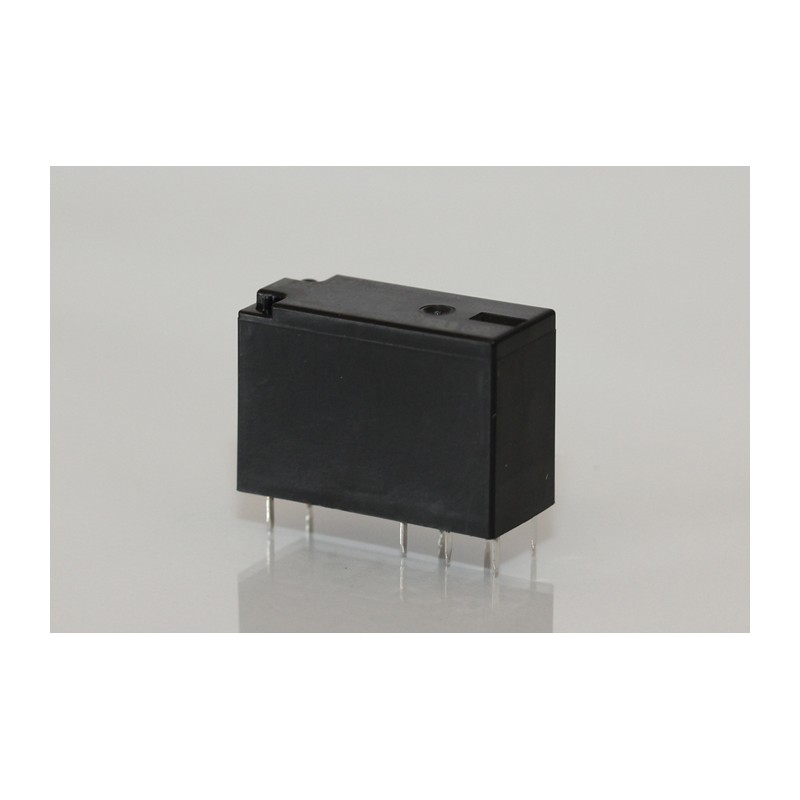

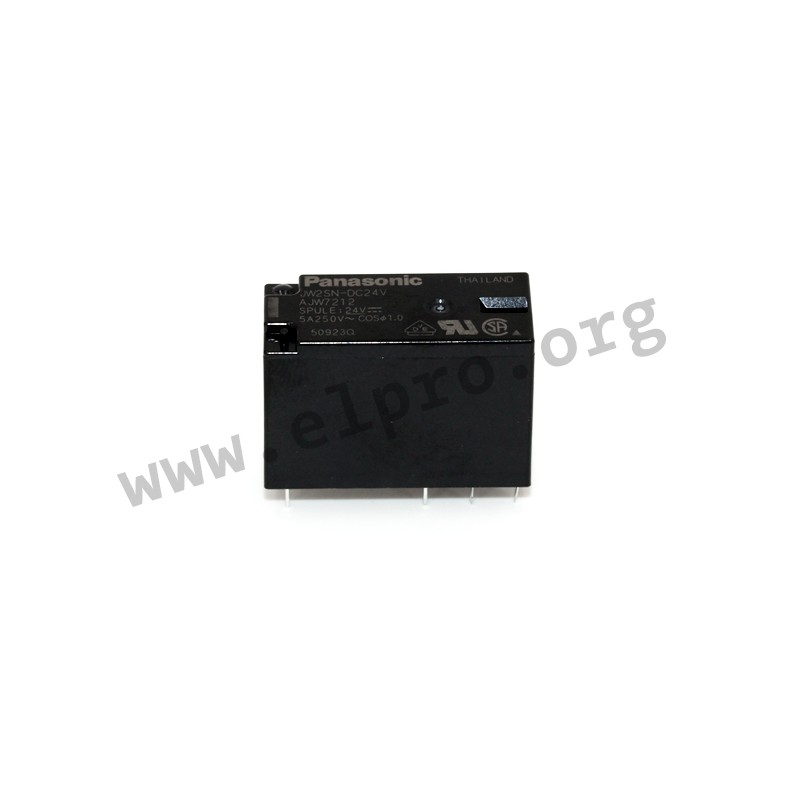

JW2SN-DC24V

PCB relays 5A, JW2SN by Panasonic

* series: JW
* contact: DPDT
* housing: 28.6x12.8x20mm
* small power relay
* high dielectric resistance for overvoltage protection
* 10,000V surge in µs between coil and contact
* typical applications: home appliances, office machines and industrial equipment
* contact material: AgNi
* max. switching current: 5A
* max. switching voltage: 250V AC/30V DC
* max. switching power: 1250VA, 150W
* operate/release time: 15/5ms
* testing voltage coil/contact (1min.): 5000V AC
* testing voltage open contacts (1min.): 1000V AC
* min. lifetime mechanical: 5x106 operations
* min. lifetime electrical: 105 operations
* operating temperature: -40...+85°C
* by Panasonic
* weight approx.: 13g

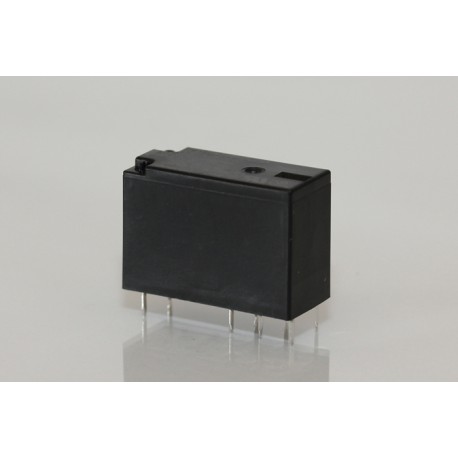

JW2SNDC24V, Panasonic PCB relays, 5A, 2 changeover contacts, JW series

JW2SN-DC24V

44221 JW2SN-DC24V JW2SNDC24V JW2SNDC24V PCB relays 5A, JW2SN by Panasonic. * series: JW* contact: DPDT* housing: 28.6x12.8x20mm* small power relay* high dielectric resistance for overvoltage protection* 10,000V surge in µs between coil and contact* typical applications: home appliances, office machines and industrial equipment* contact material: AgNi* max. switching current: 5A* max. switching voltage: 250V AC/30V DC* max. switching power: 1250VA, 150W* operate/release time: 15/5ms* testing voltage coil/contact (1min.): 5000V AC* testing voltage open contacts (1min.): 1000V AC* min. lifetime mechanical: 5x106 operations* min. lifetime electrical: 105 operations* operating temperature: -40...+85°C* by Panasonic* weight approx.: 13g

Specifications

manufacturer
Manufacturer's name JW2SNDC24V
Rated current [mA] 22
Nominal resistance [Ω] 1100
Nominal capacity [mW] 530
Data Sheet

Unit price

1,49 €

Stock: 702
Next incoming goods:
CW 06/2025
200 units

Further delivery:
CW 17/2025

Minimum order quantity 1 to 2 units or multiples of 5 plus 0 to 2 .
