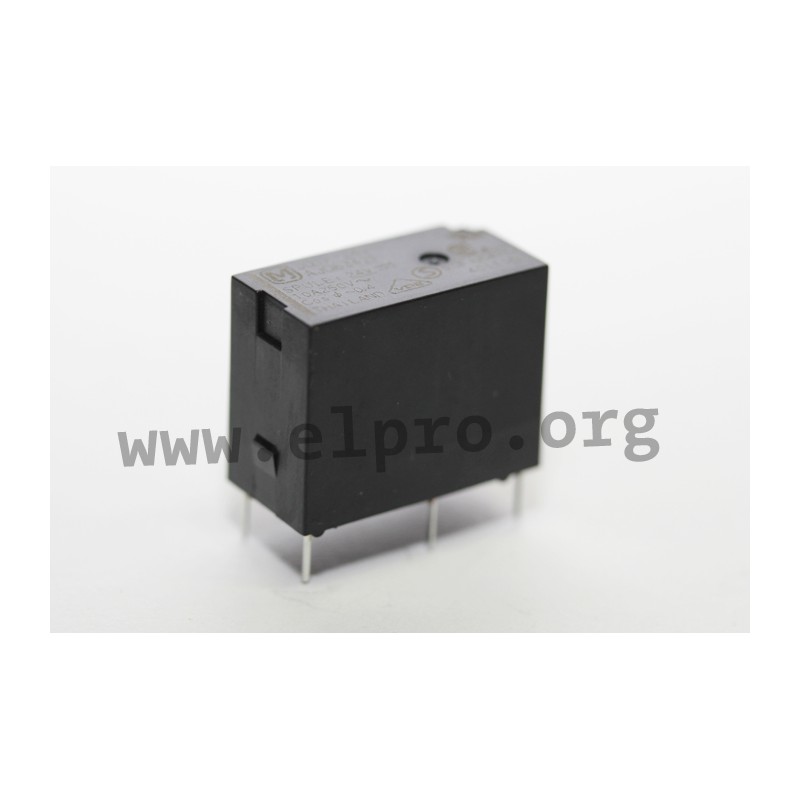

JQ1P-24V-F

PCB relays 5A, JQ by Panasonic

* series: JQ
* SPDT

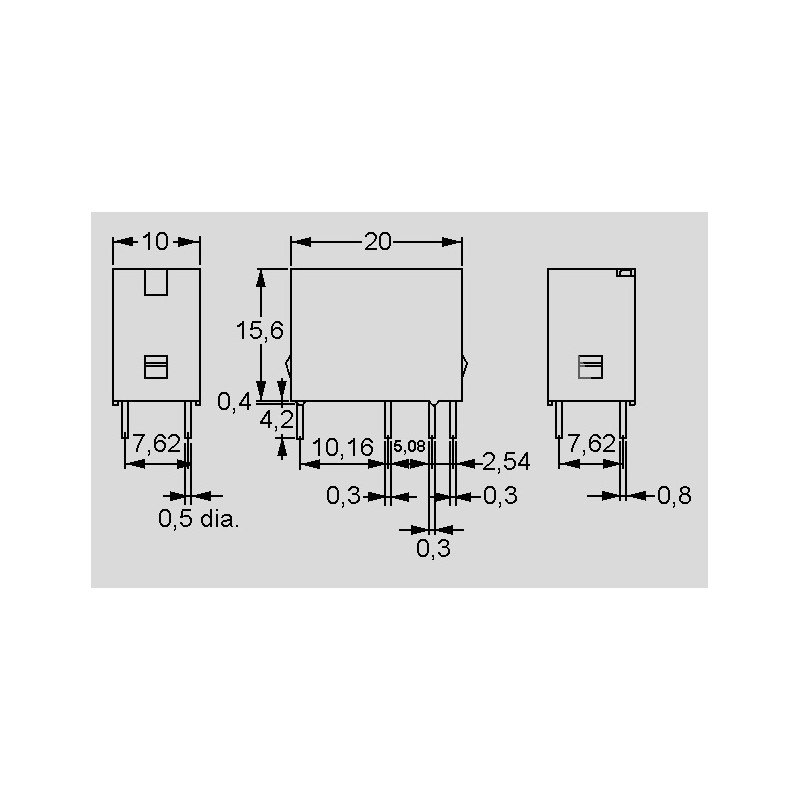

* housing: 20x10x15.6mm
* high electrical noise immunity
* high switching capacity in a compact housing
* high sensitivity: 400mW
* high surge voltage: 8000V between coil and contacts
* high insulation min. 4mm between coil and contact
* contact material: AgSnO2
* rated current: 5A
* max. switching current (N.Ω./N.C.): 10A/3A
* max. switching voltage: 250V AC
* rated power: 400mW
* max. switching power
N.Ω. side: 1250VA/150W
N.C. side: 500VA/30W
* min. insulation resistance.: 1000MΩ
* max. operate/release time: 20/10ms
* testing voltage coil/contact (1 min.): 4000V AC
* testing voltage open contacts (1 min.): 750V AC
* max. operating speed: 20 operations/min.
* min. lifetime, mechanical: 10x106 operations
* operating temperature: -40...+70°C
* by Panasonic
* weight approx.: 7g

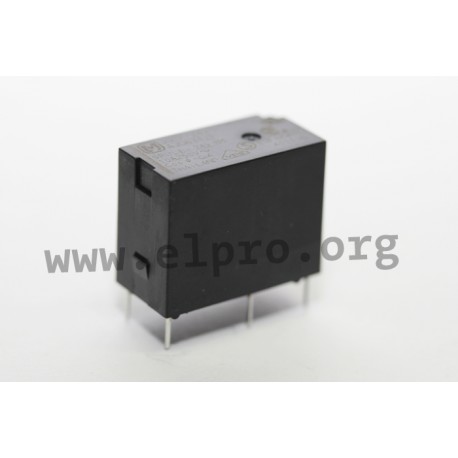

JQ series by Panasonic

JQ1P-24V-F

41592 JQ1P-24V-F JQ1P-24V-F PCB relays 5A, JQ by Panasonic. * series: JQ* SPDT* housing: 20x10x15.6mm* high electrical noise immunity* high switching capacity in a compact housing* high sensitivity: 400mW* high surge voltage: 8000V between coil and contacts* high insulation min. 4mm between coil and contact* contact material: AgSnO2* rated current: 5A* max. switching current (N.Ω./N.C.): 10A/3A* max. switching voltage: 250V AC* rated power: 400mW* max. switching powerN.Ω. side: 1250VA/150WN.C. side: 500VA/30W* min. insulation resistance.: 1000MΩ* max. operate/release time: 20/10ms* testing voltage coil/contact (1 min.): 4000V AC* testing voltage open contacts (1 min.): 750V AC* max. operating speed: 20 operations/min.* min. lifetime, mechanical: 10x106 operations* operating temperature: -40...+70°C* by Panasonic* weight approx.: 7g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name JQ1P-24V-F
Response voltage [V] 19,2

Unit price

0,85 €

Stock: 8
