> Passive elements>Capacitors>Electrolytic capacitors>Panasonic electrolytic capacitors, SMD, 105°C, 5000h, HC and HD series>EEEHC1C100R

Manufacturers

EEEHC1C100R

Panasonic capacitor series HC and HD

High temperature electrolytic capacitors with a long service life. These caps are taped and are suitable for direct PCB mounting. We offer various types of this Panasonic series.

  • lead-free reflow (EEEH_A_)
  • capacitance tolerance: ±20%
  • operating temperature: -55/-40 to +105°C
  • service life (at 105°C) EEEHC_: 3000 to 5000h
  • service life (at 105°C) EEEHD_: 5000h

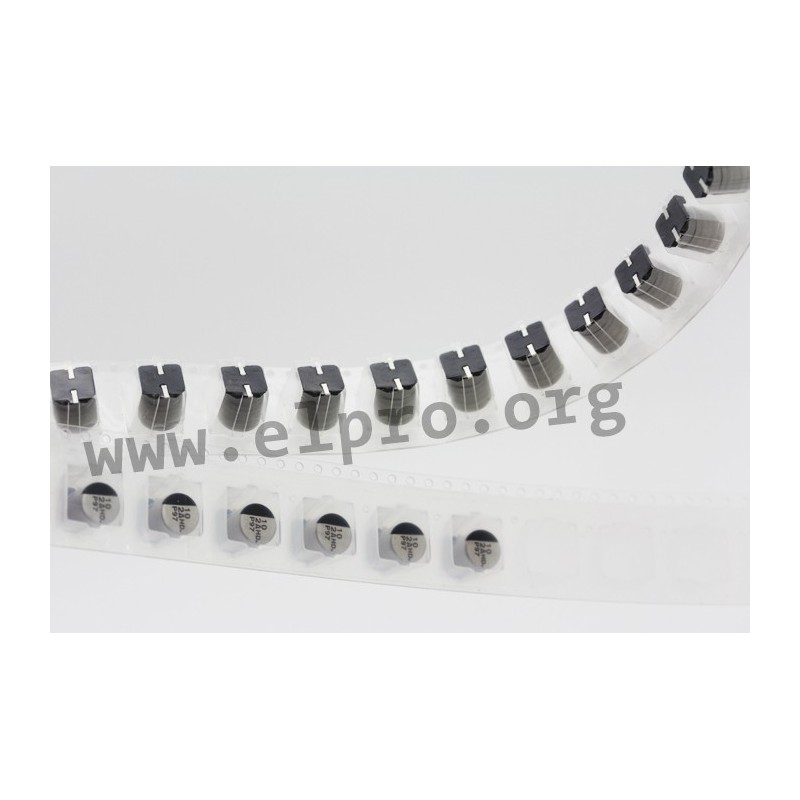

EEEHC1C100R, Panasonic electrolytic capacitors, SMD, 105°C, 5000h, HC and HD series

EEEHC1C100R

240846 EEEHC1C100R EEEHC1C100R Panasonic capacitor series HC and HD. High temperature electrolytic capacitors with a long service life. These caps are taped and are suitable for direct PCB mounting. We offer various types of this Panasonic series.  lead-free reflow (EEEH_A_) capacitance tolerance: ±20% operating temperature: -55/-40 to +105°C service life (at 105°C) EEEHC_: 3000 to 5000h service life (at 105°C) EEEHD_: 5000h

Specifications

manufacturer
Manufacturer's name EEEHC1C100R
Nominal voltage [V DC] 16
Rated capacitance [µF] 10
Data Sheet

Unit price

0,10 €

Stock: 200
Next incoming goods:
CW 09/2025
2000 units

Further delivery:
CW 18/2025

Minimum order quantity 100 units or
multiples of 100.
