EEEHC1V221P

Panasonic capacitor series HC and HD

High temperature electrolytic capacitors with a long service life. These caps are taped and are suitable for direct PCB mounting. We offer various types of this Panasonic series.

  • lead-free reflow (EEEH_A_)
  • capacitance tolerance: ±20%
  • operating temperature: -55/-40 to +105°C
  • service life (at 105°C) EEEHC_: 3000 to 5000h
  • service life (at 105°C) EEEHD_: 5000h

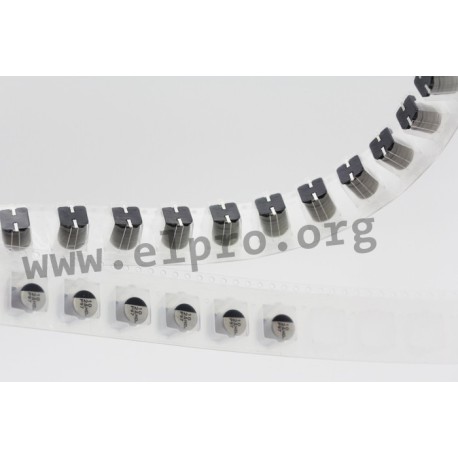

EEEHC1V221P, Panasonic electrolytic capacitors, SMD, 105°C, 5000h, HC and HD series

EEEHC1V221P

119343 EEEHC1V221P EEEHC1V221P Panasonic capacitor series HC and HD. High temperature electrolytic capacitors with a long service life. These caps are taped and are suitable for direct PCB mounting. We offer various types of this Panasonic series.  lead-free reflow (EEEH_A_) capacitance tolerance: ±20% operating temperature: -55/-40 to +105°C service life (at 105°C) EEEHC_: 3000 to 5000h service life (at 105°C) EEEHD_: 5000h

Specifications

manufacturer
Manufacturer's name EEEHC1V221P
Design G
Reverse current [mA] 220
Nominal voltage [V DC] 35
Rated capacitance [µF] 220
Loss factor at 120Hz, 20°C 0,14
Diameter [mm] 10
Length [mm] 10,2
Data Sheet

Unit price

0,333 €

Stock: 3500
Further delivery:
CW 18/2025

Minimum order quantity 100 units or
multiples of 100.
