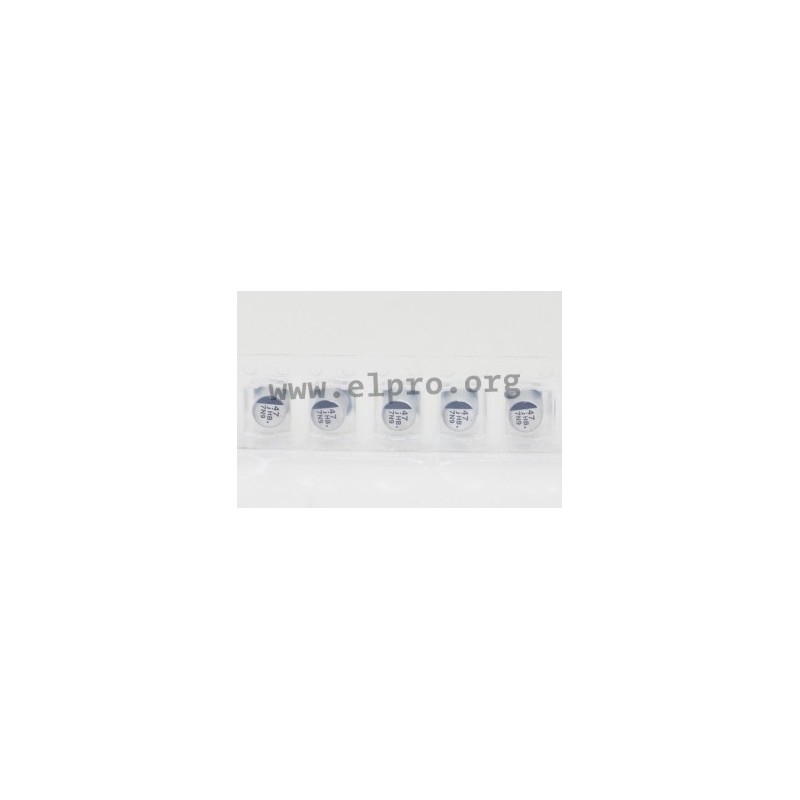

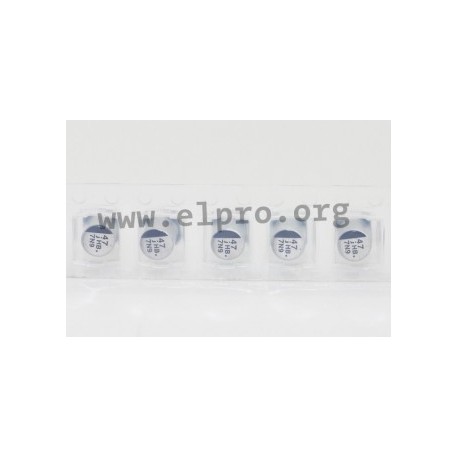

EEEHBC471UAP

Panasonic electrolytic capacitor series HB

Taped aluminium caps with a high endurance at high temperatures (2000h at 105°C). These long life caps are suitable for direct PCB mounting as well as partly for lead-free relfow soldering (EEEHB_A_). We offer various types of this Panasonic series.

  • capacitance tolerance: ±20%
  • operating temperature: -40 to +105°C
  • service life (at 105°C): 2000h
EEEHBJ470UAR, Panasonic electrolytic capacitors, SMD, 105°, 2000h, HB series

EEEHBC471UAP

234168 EEEHBC471UAP EEEHBC471UAP Panasonic electrolytic capacitor series HB. Taped aluminium caps with a high endurance at high temperatures (2000h at 105°C). These long life caps are suitable for direct PCB mounting as well as partly for lead-free relfow soldering (EEEHB_A_). We offer various types of this Panasonic series. capacitance tolerance: ±20% operating temperature: -40 to +105°C service life (at 105°C): 2000h

Specifications

manufacturer
Manufacturer's name EEEHBC471UAP
Reverse current [mA] 240
Nominal voltage [V DC] 16
Rated capacitance [µF] 470
Loss factor at 120Hz, 20°C 0,4
Diameter [mm] 8
Length [mm] 10,2
Data Sheet

Unit price

0,316 €

Stock: 1200
Further delivery:
CW 18/2025

Minimum order quantity 100 units or
multiples of 100.
