EEEHBE100UAR

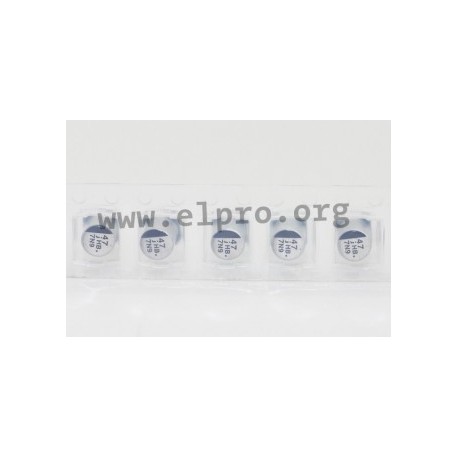

Panasonic electrolytic capacitor series HB

Taped aluminium caps with a high endurance at high temperatures (2000h at 105°C). These long life caps are suitable for direct PCB mounting as well as partly for lead-free relfow soldering (EEEHB_A_). We offer various types of this Panasonic series.

  • capacitance tolerance: ±20%
  • operating temperature: -40 to +105°C
  • service life (at 105°C): 2000h
EEEHBJ470UAR, Panasonic electrolytic capacitors, SMD, 105°, 2000h, HB series

EEEHBE100UAR

119339 EEEHBE100UAR EEEHBE100UAR Panasonic electrolytic capacitor series HB. Taped aluminium caps with a high endurance at high temperatures (2000h at 105°C). These long life caps are suitable for direct PCB mounting as well as partly for lead-free relfow soldering (EEEHB_A_). We offer various types of this Panasonic series. capacitance tolerance: ±20% operating temperature: -40 to +105°C service life (at 105°C): 2000h

Specifications

manufacturer
Manufacturer's name EEEHBE100UAR
Design B
Reverse current [mA] 28
Nominal voltage [V DC] 25
Rated capacitance [µF] 10
Loss factor at 120Hz, 20°C 0,16
Diameter [mm] 4
Length [mm] 5,8
Data Sheet

Unit price

0,134 €

Stock: 3900
Further delivery:
CW 22/2025

Minimum order quantity 100 units or
multiples of 100.
