> Passive elements>Capacitors>Electrolytic capacitors>Panasonic electrolytic capacitors, SMD, 105°, reflow, low ESR, 2000h, FT series>EEEFT1H221GP

Manufacturers

EEEFT1H221GP

105°C, SMD, low ESR, miniaturized

• SMD electrolytic capacitors
• by Panasonic
• series FT
• taped
• low ESR
• miniaturized
• capacitance tolerance: ±20%
• temperature range: -55°C to +105°C
• operating life (at 105°C): 5000h

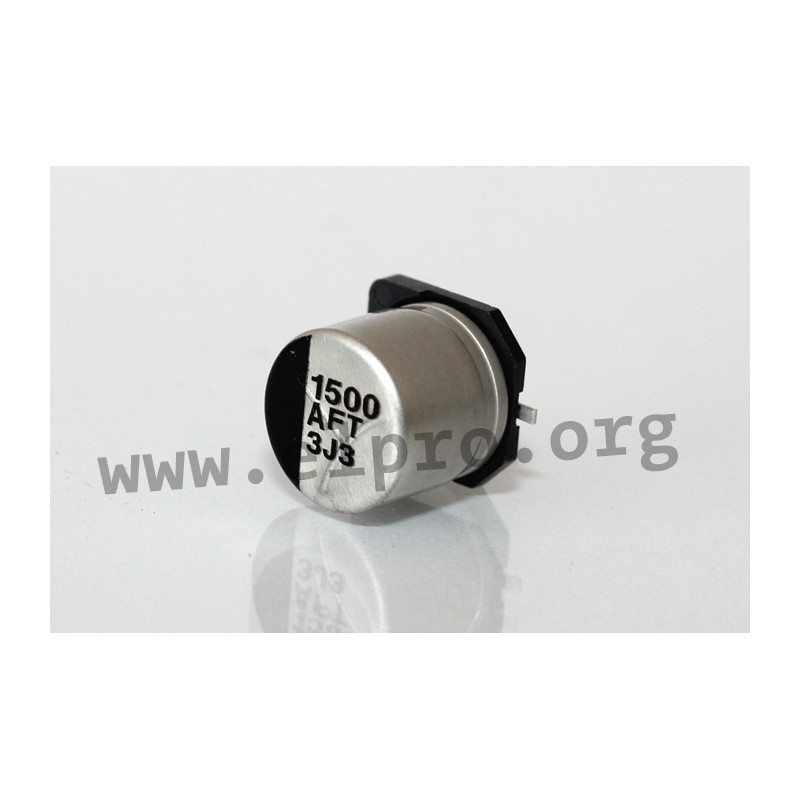

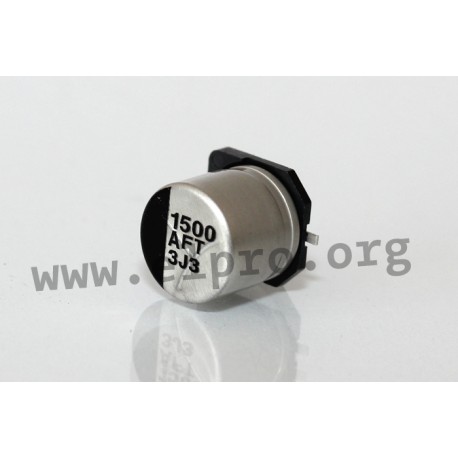

SMD-electrolytic capacitors series FT

EEEFT1H221GP

109896 EEEFT1H221GP EEEFT1H221GP 105°C, SMD, low ESR, miniaturized. • SMD electrolytic capacitors• by Panasonic• series FT• taped• low ESR• miniaturized• capacitance tolerance: ±20%• temperature range: -55°C to +105°C• operating life (at 105°C): 5000h

Specifications

manufacturer
Manufacturer's name EEEFT1H221GP
Reverse current [mA] 670
Nominal voltage [V DC] 50
Impedance [Ω] 0,18
Data Sheet

Unit price

0,363 €

Stock: 2500
Further delivery:
CW 18/2025

Minimum order quantity 100 units or
multiples of 100.
