EEEFKV121XSP

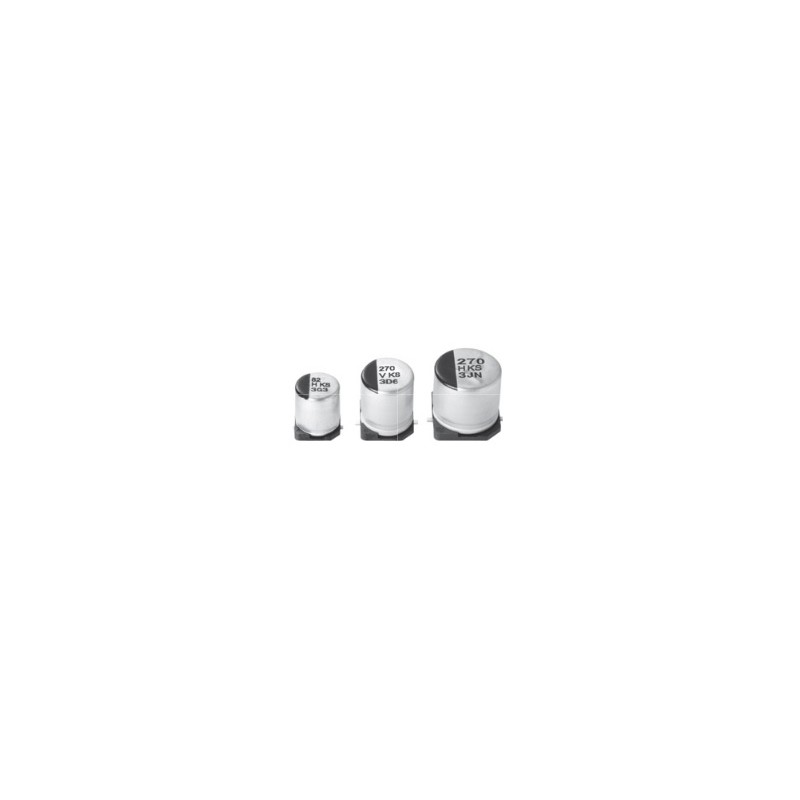

SMD electrolytic capacitors series FKS by Panasonic

This miniature version of the FKS-series by Panasonic is characterized by a high reliability and has a three times higher capacity in comparison to the same doses size FK-series. We are offering the following types by Panasonic: EEEFK0J271SP, EEEFKJ471XSP, EEEFK0J182SP, EEEFK1A221SP, EEEFKA331XSP, EEEFK1A821SP, EEEFK1A122SP, EEEFK1C151SP, EEEFKC271XSP, EEEFK1C561SP, EEEFK1C102SP, EEEFK1E101SP, EEEFKE151XSP, EEEFKE181XSP, EEEFK1E391SP, EEEFK1E681SP, EEEFK1V680SP, EEEFK1V820SP, EEEFKV121XSP, EEEFK1V271SP, EEEFK1V471SP, EEEFK1H390SP, EEEFKH820XSP, EEEFK1H181SP and EEEFK1H271SP.

• rated voltage, max.: 6,3 to 50V DC
• capacitance tolerance: ±20%
• temperature range: -55°C to +105°C
• operating life (at 105°C): 2000h

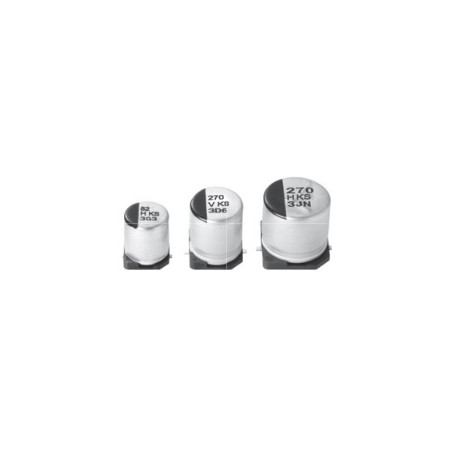

SMD-electrolytic capacitors series FKS

EEEFKV121XSP

109887 EEEFKV121XSP EEEFKV121XSP SMD electrolytic capacitors series FKS by Panasonic. This miniature version of the FKS-series by Panasonic is characterized by a high reliability and has a three times higher capacity in comparison to the same doses size FK-series. We are offering the following types by Panasonic: EEEFK0J271SP, EEEFKJ471XSP, EEEFK0J182SP, EEEFK1A221SP, EEEFKA331XSP, EEEFK1A821SP, EEEFK1A122SP, EEEFK1C151SP, EEEFKC271XSP, EEEFK1C561SP, EEEFK1C102SP, EEEFK1E101SP, EEEFKE151XSP, EEEFKE181XSP, EEEFK1E391SP, EEEFK1E681SP, EEEFK1V680SP, EEEFK1V820SP, EEEFKV121XSP, EEEFK1V271SP, EEEFK1V471SP, EEEFK1H390SP, EEEFKH820XSP, EEEFK1H181SP and EEEFK1H271SP. • rated voltage, max.: 6,3 to 50V DC• capacitance tolerance: ±20%• temperature range: -55°C to +105°C• operating life (at 105°C): 2000h

Specifications

manufacturer
Manufacturer's name EEEFKV121XSP
Reverse current [mA] 280
Nominal voltage [V DC] 35
Impedance [mΩ] 0,34
Capacity [µF] 120
Data Sheet

Unit price

0,192 €

Stock: 4000
Further delivery:
CW 18/2025

Minimum order quantity 100 units or
multiples of 100.
