EEEFK0J271SP

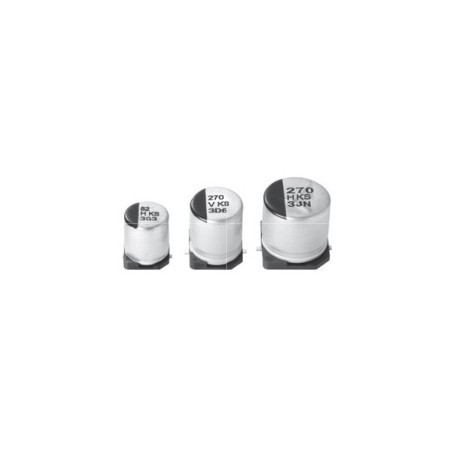

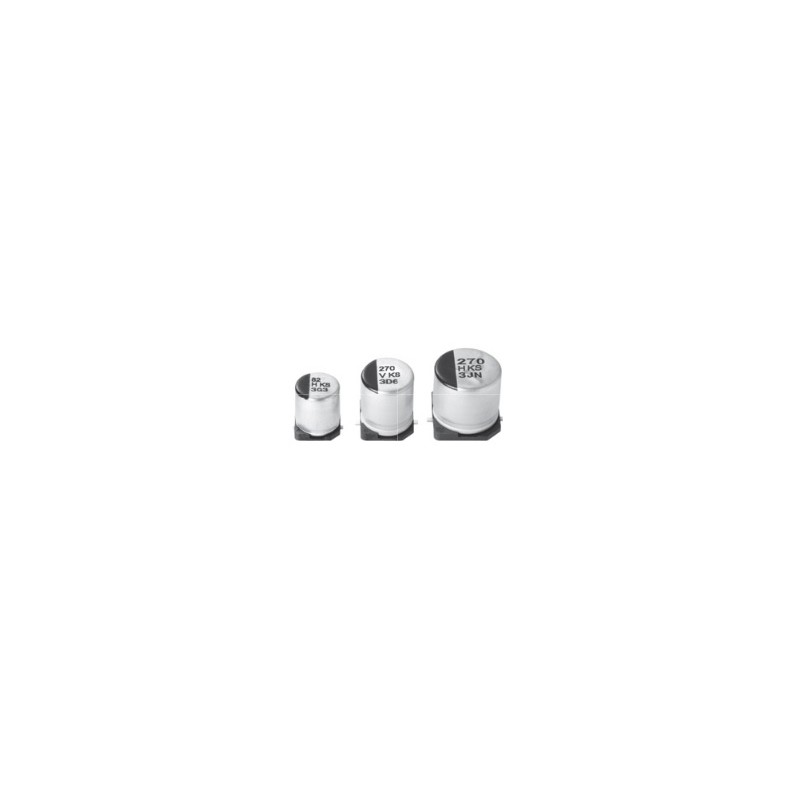

SMD electrolytic capacitors series FKS by Panasonic

This miniature version of the FKS-series by Panasonic is characterized by a high reliability and has a three times higher capacity in comparison to the same doses size FK-series. We are offering the following types by Panasonic: EEEFK0J271SP, EEEFKJ471XSP, EEEFK0J182SP, EEEFK1A221SP, EEEFKA331XSP, EEEFK1A821SP, EEEFK1A122SP, EEEFK1C151SP, EEEFKC271XSP, EEEFK1C561SP, EEEFK1C102SP, EEEFK1E101SP, EEEFKE151XSP, EEEFKE181XSP, EEEFK1E391SP, EEEFK1E681SP, EEEFK1V680SP, EEEFK1V820SP, EEEFKV121XSP, EEEFK1V271SP, EEEFK1V471SP, EEEFK1H390SP, EEEFKH820XSP, EEEFK1H181SP and EEEFK1H271SP.

• capacitance tolerance: ±20%
• temperature range: -55°C to +105°C
• operating life (at 105°C): 2000h


SMD-electrolytic capacitors series FKS

EEEFK0J271SP

109864 EEEFK0J271SP EEEFK0J271SP SMD electrolytic capacitors series FKS by Panasonic. This miniature version of the FKS-series by Panasonic is characterized by a high reliability and has a three times higher capacity in comparison to the same doses size FK-series. We are offering the following types by Panasonic: EEEFK0J271SP, EEEFKJ471XSP, EEEFK0J182SP, EEEFK1A221SP, EEEFKA331XSP, EEEFK1A821SP, EEEFK1A122SP, EEEFK1C151SP, EEEFKC271XSP, EEEFK1C561SP, EEEFK1C102SP, EEEFK1E101SP, EEEFKE151XSP, EEEFKE181XSP, EEEFK1E391SP, EEEFK1E681SP, EEEFK1V680SP, EEEFK1V820SP, EEEFKV121XSP, EEEFK1V271SP, EEEFK1V471SP, EEEFK1H390SP, EEEFKH820XSP, EEEFK1H181SP and EEEFK1H271SP. • capacitance tolerance: ±20%• temperature range: -55°C to +105°C• operating life (at 105°C): 2000h

Specifications

manufacturer
Manufacturer's name EEEFK0J271SP
Reverse current [mA] 240
Nominal voltage [V DC] 6,3
Impedance [mΩ] 0,36
Loss factor at 120Hz, 20°C 0,26
Data Sheet

Unit price

0,142 €

Stock: 0
Further delivery:
CW 18/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
