EEEFKC221XAP

Panasonic capacitor series FK

  • low ESR electrolytic capacitors (SMD)
  • suitable for high temperature lead-free reflow soldering
  • operating temperature: -55 to +105°C
  • capacitance tolerance: ±20%
  • service life (at 105°C) EEEFK_AP/EEEFK_AR: 2000h
  • service life (at 105°C) EEEFK_AQ/EEEFK_AM: 1000h
  • taped

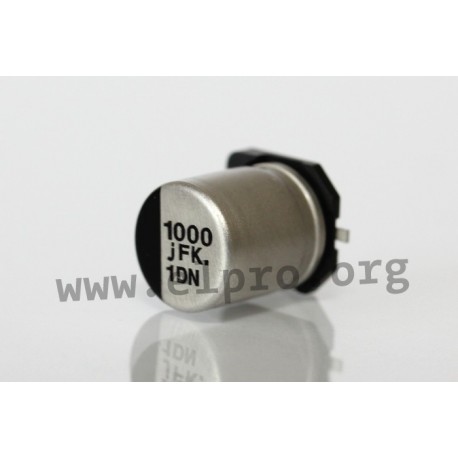

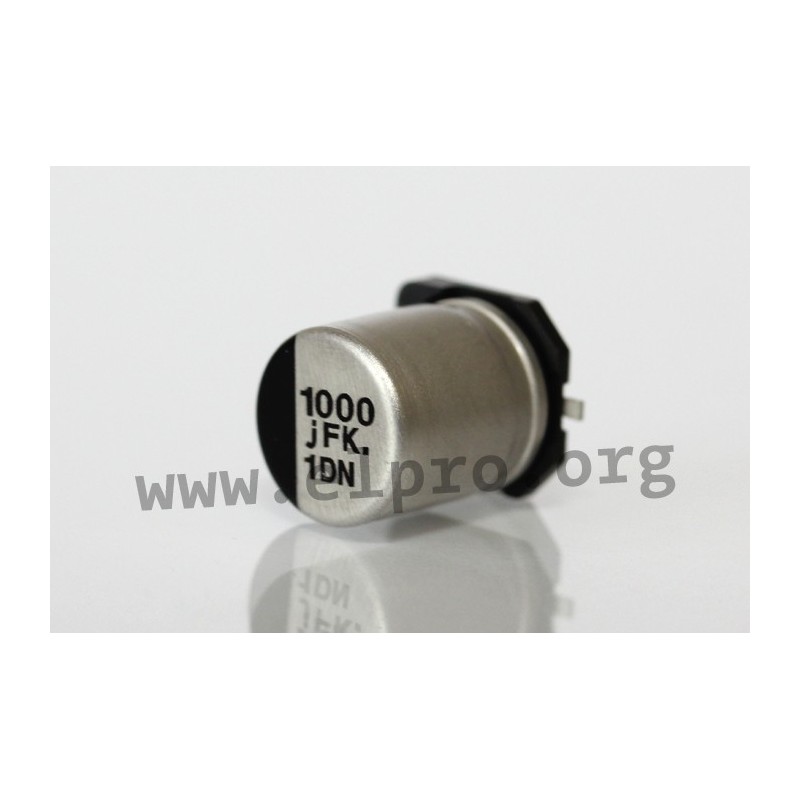

EEEFKC221XAP, Panasonic electrolytic capacitors, SMD, 105°, reflow, low ESR, 2000h, FK series

EEEFKC221XAP

110822 EEEFKC221XAP EEEFKC221XAP Panasonic capacitor series FK. low ESR electrolytic capacitors (SMD) suitable for high temperature lead-free reflow soldering operating temperature: -55 to +105°C capacitance tolerance: ±20% service life (at 105°C) EEEFK_AP/EEEFK_AR: 2000h service life (at 105°C) EEEFK_AQ/EEEFK_AM: 1000h taped

Specifications

manufacturer
Manufacturer's name EEEFKC221XAP
Nominal voltage [V DC] 16
Impedance [Ω] 0,34
Loss factor at 120Hz, 20°C 0,16
Reverse current [µA] 280
Capacity [µF] 220
Data Sheet

Unit price

0,18 €

Stock: 1200
Further delivery:
CW 18/2025

Minimum order quantity 100 units or
multiples of 100.
