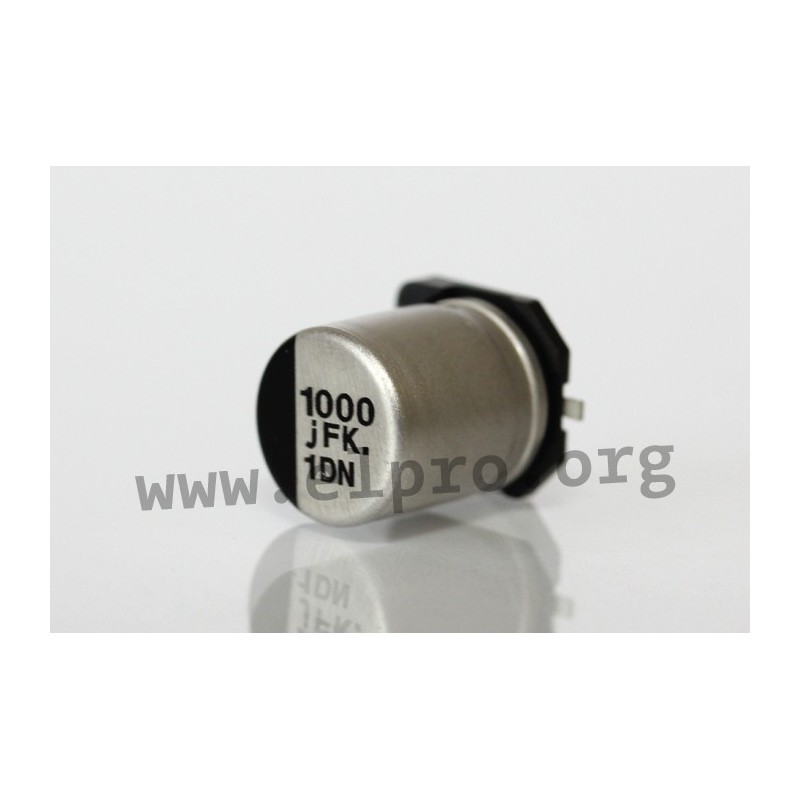

EEEFK1H471AM

Panasonic capacitor series FK

  • low ESR electrolytic capacitors (SMD)
  • suitable for high temperature lead-free reflow soldering
  • operating temperature: -55 to +105°C
  • capacitance tolerance: ±20%
  • service life (at 105°C) EEEFK_AP/EEEFK_AR: 2000h
  • service life (at 105°C) EEEFK_AQ/EEEFK_AM: 1000h
  • taped

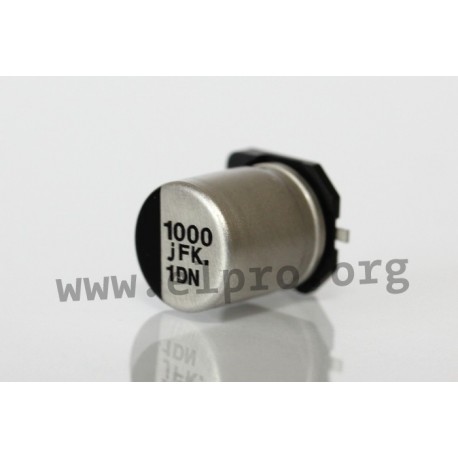

EEEFK1H471AM, Panasonic electrolytic capacitors, SMD, 105°, reflow, low ESR, 2000h, FK series

EEEFK1H471AM

110812 EEEFK1H471AM EEEFK1H471AM Panasonic capacitor series FK. low ESR electrolytic capacitors (SMD) suitable for high temperature lead-free reflow soldering operating temperature: -55 to +105°C capacitance tolerance: ±20% service life (at 105°C) EEEFK_AP/EEEFK_AR: 2000h service life (at 105°C) EEEFK_AQ/EEEFK_AM: 1000h taped

Specifications

manufacturer
Manufacturer's name EEEFK1H471AM
Reverse current [mA] 1610
Nominal voltage [V DC] 50
Impedance [Ω] 0,073
Capacity [µF] 470
D [mm] 16
Length [mm] 16,5
Data Sheet

Unit price

1,35 €

Stock: 950
Next incoming goods:
CW 01/2025
500 units

Further delivery:
CW 18/2025

Minimum order quantity 100 units or
multiples of 100.
