> Passive elements>Capacitors>Electrolytic capacitors>Panasonic electrolytic capacitors, SMD, 105°C, low ESR, 1000h, FC series>EEEFC1V4R7R

Manufacturers

EEEFC1V4R7R

Panasonic electrolytic capacitor series FC

  • SMD electrolytic capacitors
  • with a service life of 1000h (at 105°C)
  • suitable for high temperature lead-free reflow soldering (EEEFC_AP/EEEFC_AR) as well as for direct PCB mounting
  • low ESR
  • operating temperature: -40 to +105°C
  • capacitance tolerance: ±20%
  • taped

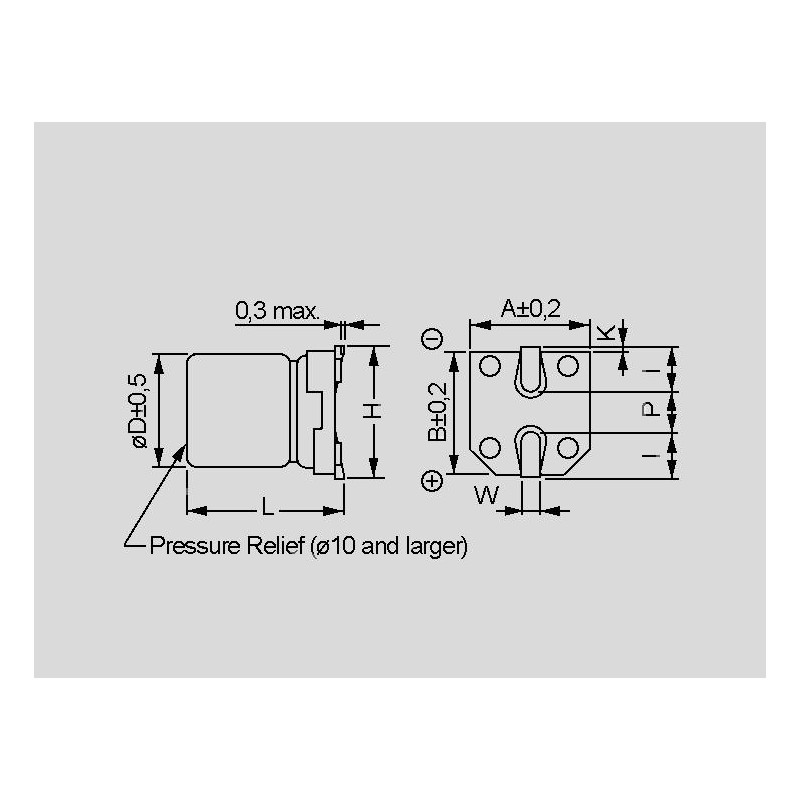

dimensions

EEEFC1V4R7R

36700 EEEFC1V4R7R EEEFC1V4R7R Panasonic electrolytic capacitor series FC. SMD electrolytic capacitors with a service life of 1000h (at 105°C) suitable for high temperature lead-free reflow soldering (EEEFC_AP/EEEFC_AR) as well as for direct PCB mounting low ESR operating temperature: -40 to +105°C capacitance tolerance: ±20% taped

Specifications

manufacturer
Manufacturer's name EEEFC1V4R7R
Reverse current [mA] 60
Nominal voltage [V DC] 35
Impedance [Ω] 3
Capacity [µF] 4,7
D [mm] 4
Length [mm] 5,4
Data Sheet

Unit price

0,082 €

Stock: 13600
Further delivery:
CW 18/2025

Minimum order quantity 100 units or
multiples of 100.
