EEEFC1V101P

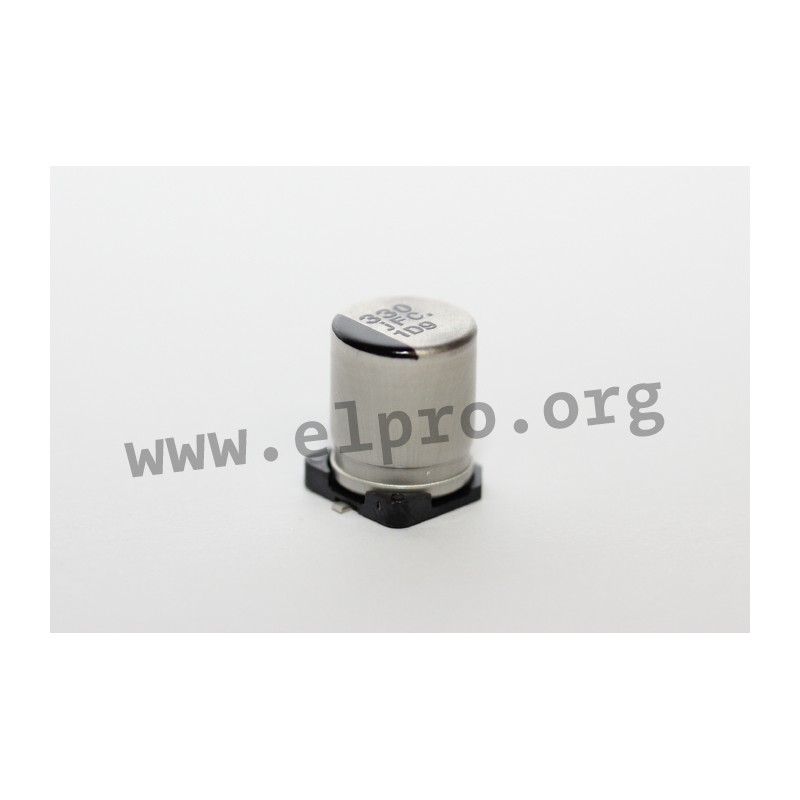

Panasonic electrolytic capacitor series FC

  • SMD electrolytic capacitors
  • with a service life of 1000h (at 105°C)
  • suitable for high temperature lead-free reflow soldering (EEEFC_AP/EEEFC_AR) as well as for direct PCB mounting
  • low ESR
  • operating temperature: -40 to +105°C
  • capacitance tolerance: ±20%
  • taped
EEEFC1V101P

EEEFC1V101P

36695 EEEFC1V101P EEEFC1V101P Panasonic electrolytic capacitor series FC. SMD electrolytic capacitors with a service life of 1000h (at 105°C) suitable for high temperature lead-free reflow soldering (EEEFC_AP/EEEFC_AR) as well as for direct PCB mounting low ESR operating temperature: -40 to +105°C capacitance tolerance: ±20% taped

Specifications

manufacturer
Manufacturer's name EEEFC1V101P
Reverse current [mA] 670
Nominal voltage [V DC] 35
Impedance [Ω] 0,15
Capacity [µF] 100
Data Sheet

Unit price

0,328 €

Stock: 12400
Further delivery:
CW 18/2025

Minimum order quantity 100 units or
multiples of 100.
