> Passive elements>Capacitors>Electrolytic capacitors>Panasonic electrolytic capacitors, SMD, 105°C, low ESR, 1000h, FC series>EEEFC1H2R2R

Manufacturers

EEEFC1H2R2R

Panasonic electrolytic capacitor series FC

  • SMD electrolytic capacitors
  • with a service life of 1000h (at 105°C)
  • suitable for high temperature lead-free reflow soldering (EEEFC_AP/EEEFC_AR) as well as for direct PCB mounting
  • low ESR
  • operating temperature: -40 to +105°C
  • capacitance tolerance: ±20%
  • taped

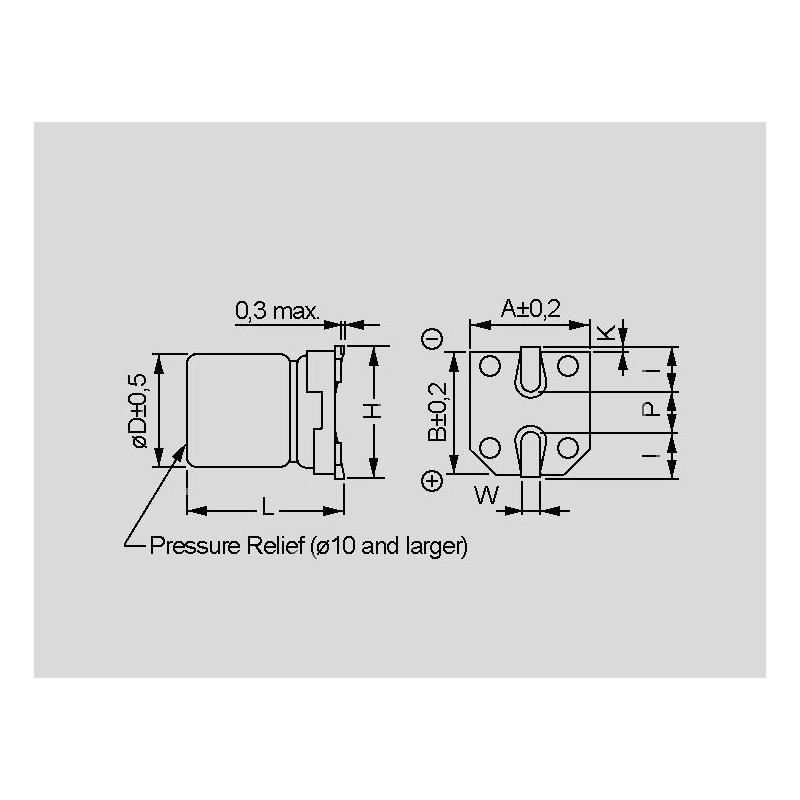

dimensions

EEEFC1H2R2R

36690 EEEFC1H2R2R EEEFC1H2R2R Panasonic electrolytic capacitor series FC. SMD electrolytic capacitors with a service life of 1000h (at 105°C) suitable for high temperature lead-free reflow soldering (EEEFC_AP/EEEFC_AR) as well as for direct PCB mounting low ESR operating temperature: -40 to +105°C capacitance tolerance: ±20% taped

Specifications

manufacturer
Manufacturer's name EEEFC1H2R2R
Reverse current [mA] 30
Nominal voltage [V DC] 50
Impedance [Ω] 5
Capacity [µF] 2,2
D [mm] 4
Length [mm] 5,4
Data Sheet

Unit price

0,102 €

Stock: 7800
Further delivery:
CW 18/2025

Minimum order quantity 100 units or
multiples of 100.
