EEEFC1H100P

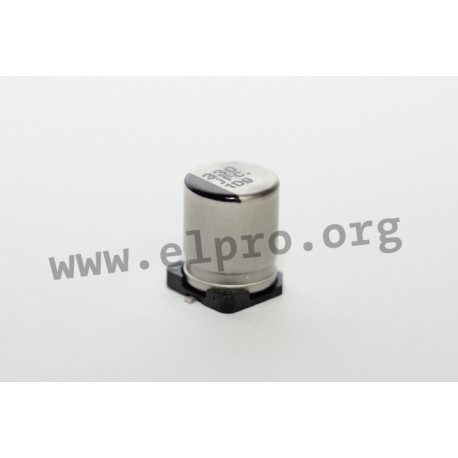

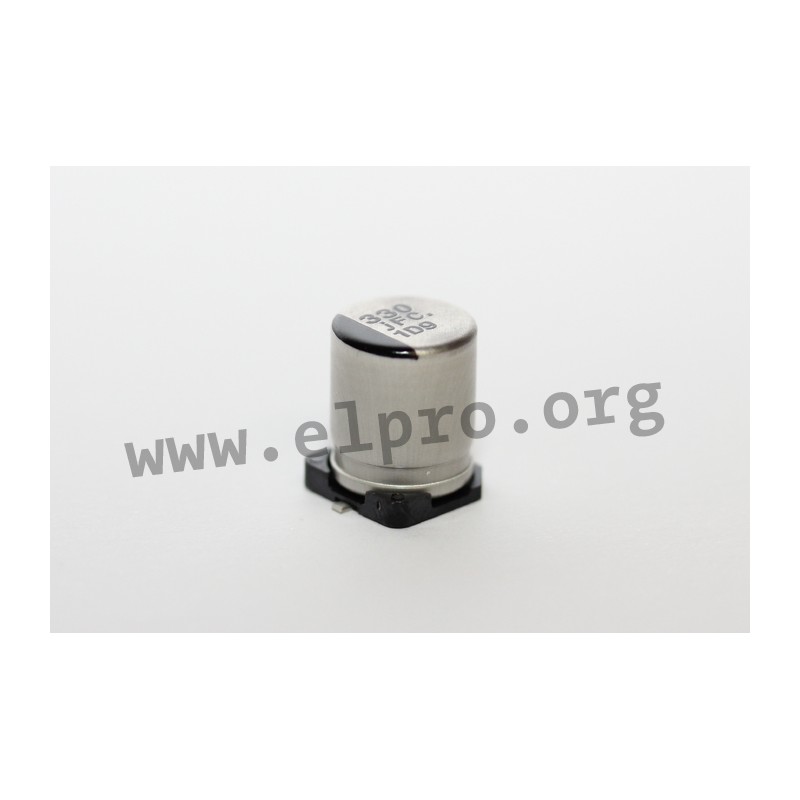

Panasonic electrolytic capacitor series FC

  • SMD electrolytic capacitors
  • with a service life of 1000h (at 105°C)
  • suitable for high temperature lead-free reflow soldering (EEEFC_AP/EEEFC_AR) as well as for direct PCB mounting
  • low ESR
  • operating temperature: -40 to +105°C
  • capacitance tolerance: ±20%
  • taped

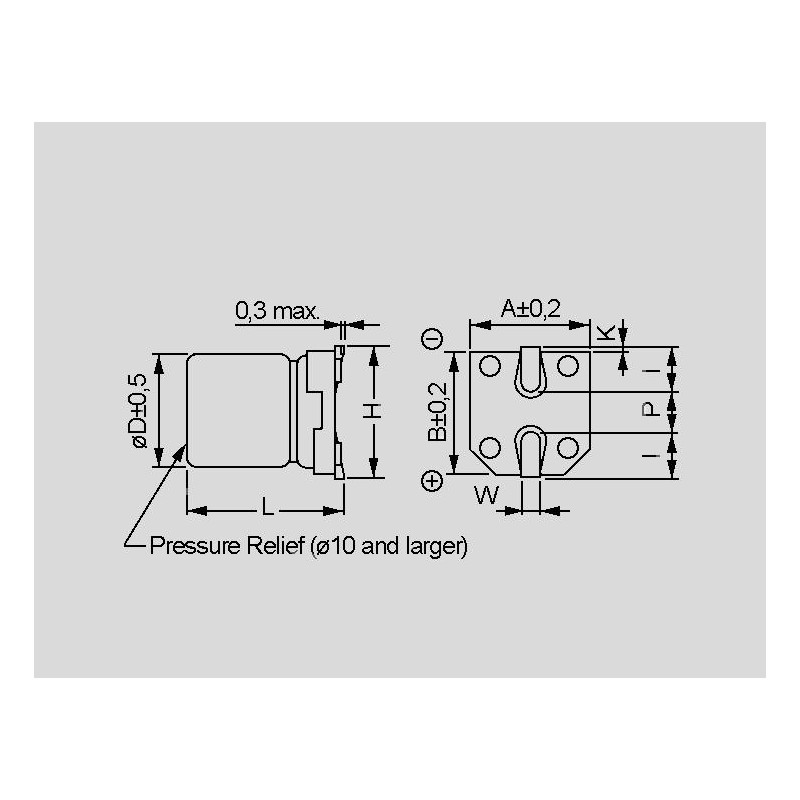

dimensions

EEEFC1H100P

36687 EEEFC1H100P EEEFC1H100P Panasonic electrolytic capacitor series FC. SMD electrolytic capacitors with a service life of 1000h (at 105°C) suitable for high temperature lead-free reflow soldering (EEEFC_AP/EEEFC_AR) as well as for direct PCB mounting low ESR operating temperature: -40 to +105°C capacitance tolerance: ±20% taped

Specifications

manufacturer
Manufacturer's name EEEFC1H100P
Reverse current [mA] 70
Nominal voltage [V DC] 50
Impedance [Ω] 2
Capacity [µF] 10
Length [mm] 5,4
Data Sheet

Unit price

0,134 €

Stock: 5100
Further delivery:
CW 18/2025

Minimum order quantity 100 units or
multiples of 100.
