EEEFC1C100R

Panasonic electrolytic capacitor series FC

  • SMD electrolytic capacitors
  • with a service life of 1000h (at 105°C)
  • suitable for high temperature lead-free reflow soldering (EEEFC_AP/EEEFC_AR) as well as for direct PCB mounting
  • low ESR
  • operating temperature: -40 to +105°C
  • capacitance tolerance: ±20%
  • taped

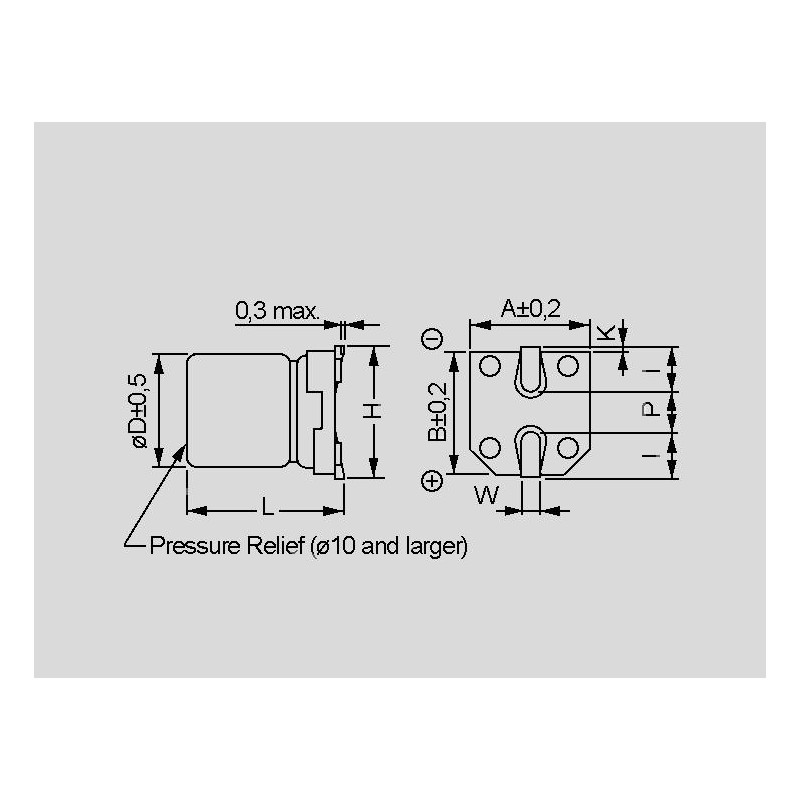

dimensions

EEEFC1C100R

36676 EEEFC1C100R EEEFC1C100R Panasonic electrolytic capacitor series FC. SMD electrolytic capacitors with a service life of 1000h (at 105°C) suitable for high temperature lead-free reflow soldering (EEEFC_AP/EEEFC_AR) as well as for direct PCB mounting low ESR operating temperature: -40 to +105°C capacitance tolerance: ±20% taped

Specifications

manufacturer
Manufacturer's name EEEFC1C100R
Reverse current [mA] 60
Nominal voltage [V DC] 16
Impedance [Ω] 3
Loss factor at 120Hz, 20°C 0,16
Capacity [µF] 10
D [mm] 4
Length [mm] 5,4
Data Sheet

Unit price

0,082 €

Stock: 14899
Further delivery:
CW 18/2025

Minimum order quantity 1 to 99 units or multiples of 100 plus 0 to 99 .
