> Passive elements>Capacitors>Electrolytic capacitors>Panasonic electrolytic capacitors, SMD, 105°C, low ESR, 1000h, FC series>EEEFC0J221P

Manufacturers

EEEFC0J221P

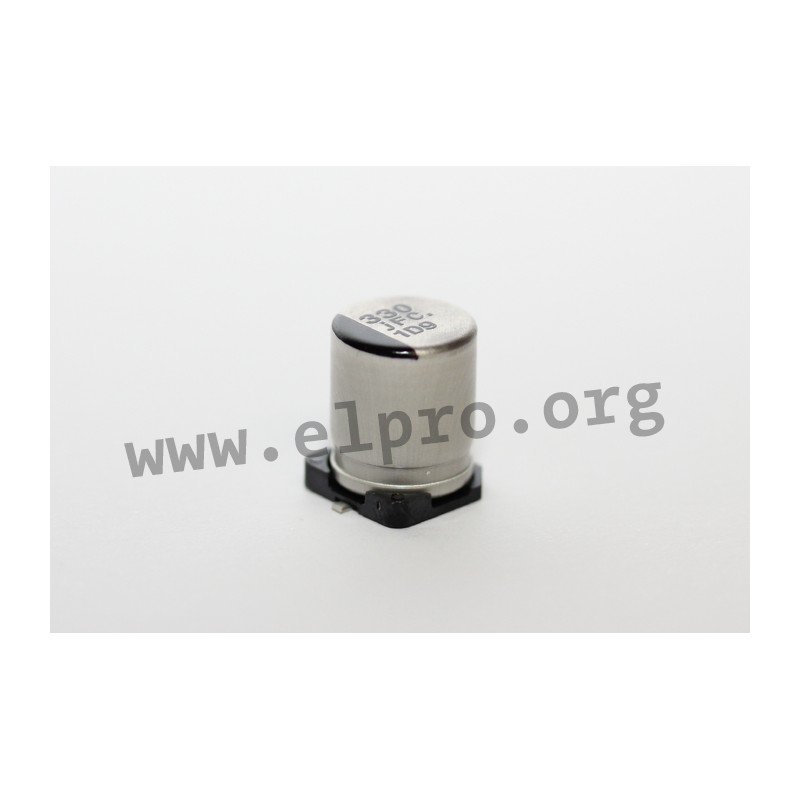

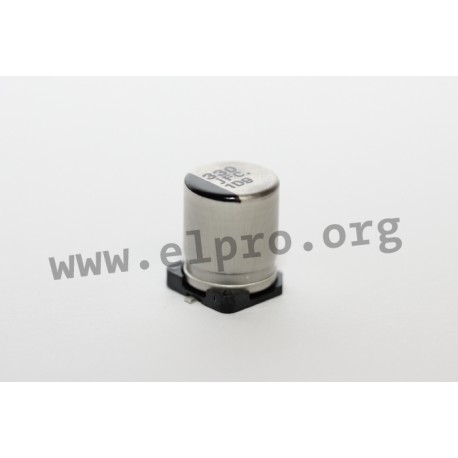

Panasonic electrolytic capacitor series FC

  • SMD electrolytic capacitors
  • with a service life of 1000h (at 105°C)
  • suitable for high temperature lead-free reflow soldering (EEEFC_AP/EEEFC_AR) as well as for direct PCB mounting
  • low ESR
  • operating temperature: -40 to +105°C
  • capacitance tolerance: ±20%
  • taped
EEEFC0J221P

EEEFC0J221P

36671 EEEFC0J221P EEEFC0J221P Panasonic electrolytic capacitor series FC. SMD electrolytic capacitors with a service life of 1000h (at 105°C) suitable for high temperature lead-free reflow soldering (EEEFC_AP/EEEFC_AR) as well as for direct PCB mounting low ESR operating temperature: -40 to +105°C capacitance tolerance: ±20% taped

Specifications

manufacturer
Manufacturer's name EEEFC0J221P
Reverse current [mA] 230
Nominal voltage [V DC] 6,3
Impedance [Ω] 0,4
Loss factor at 120Hz, 20°C 0,26
Capacity [µF] 220
Length [mm] 6,2
Data Sheet

Unit price

0,219 €

Stock: 1800
Further delivery:
CW 22/2025

Minimum order quantity 100 units or
multiples of 100.
