> Passive elements>Capacitors>Electrolytic capacitors>Panasonic electrolytic capacitors, SMD, 105°, 1000h, FC series>EEEFC1C471AP

Manufacturers

EEEFC1C471AP

SMD electrolytic capacitors series FC

We are offering the following SMD electrolytic capacitors in a taped style by Panasonic: EEEFC1A101AP, EEEFC1A102AP, EEEFC1C101AP, EEEFC1C471AP, EEEFC1E101AP, EEEFC1E471AP, EEEFC1V1R0AR, EEEFC1V220AP, EEEFC1V470AP, EEEFC1V101AP, EEEFC1V331AP and EEEFC1C100AR.

• rated voltage, max.: 10 to 35V DC
• capacitance tolerance: ±20%
• temperature range: -40 to +105°C
• operating life (at 105°C): 1000h

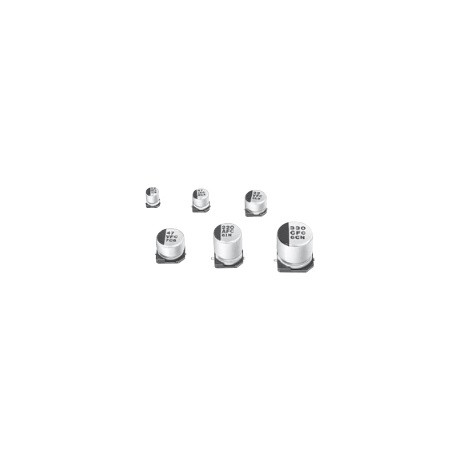

SMD-electrolytic capacitors series FC

EEEFC1C471AP

109814 EEEFC1C471AP EEEFC1C471AP SMD electrolytic capacitors series FC. We are offering the following SMD electrolytic capacitors in a taped style by Panasonic: EEEFC1A101AP, EEEFC1A102AP, EEEFC1C101AP, EEEFC1C471AP, EEEFC1E101AP, EEEFC1E471AP, EEEFC1V1R0AR, EEEFC1V220AP, EEEFC1V470AP, EEEFC1V101AP, EEEFC1V331AP and EEEFC1C100AR. • rated voltage, max.: 10 to 35V DC• capacitance tolerance: ±20%• temperature range: -40 to +105°C• operating life (at 105°C): 1000h

Specifications

manufacturer
Manufacturer's name EEEFC1C471AP
Reverse current [mA] 670
Nominal voltage [V DC] 16
Impedance [Ω] 0,15
Loss factor at 120Hz, 20°C 0,16
Capacity [µF] 470
Data Sheet

Unit price

0,345 €

Stock: 3900
Further delivery:
CW 18/2025

Minimum order quantity 100 units or
multiples of 100.
