> Passive elements>Capacitors>Electrolytic capacitors>Panasonic electrolytic capacitors, SMD, 105°, 1000h, FC series>EEEFC1A101AP

Manufacturers

EEEFC1A101AP

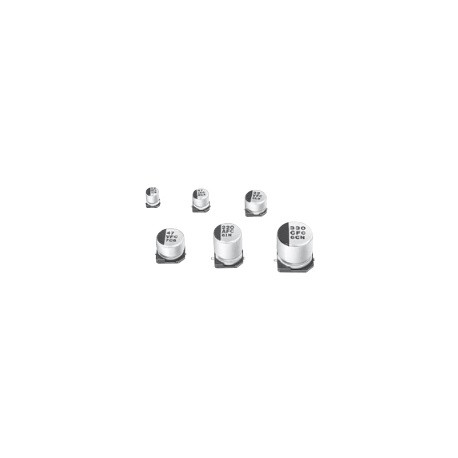

SMD electrolytic capacitors series FC

We are offering the following SMD electrolytic capacitors in a taped style by Panasonic: EEEFC1A101AP, EEEFC1A102AP, EEEFC1C101AP, EEEFC1C471AP, EEEFC1E101AP, EEEFC1E471AP, EEEFC1V1R0AR, EEEFC1V220AP, EEEFC1V470AP, EEEFC1V101AP, EEEFC1V331AP and EEEFC1C100AR.

• rated voltage, max.: 10 to 35V DC
• capacitance tolerance: ±20%
• temperature range: -40 to +105°C
• operating life (at 105°C): 1000h

SMD-electrolytic capacitors series FC

EEEFC1A101AP

109810 EEEFC1A101AP EEEFC1A101AP SMD electrolytic capacitors series FC. We are offering the following SMD electrolytic capacitors in a taped style by Panasonic: EEEFC1A101AP, EEEFC1A102AP, EEEFC1C101AP, EEEFC1C471AP, EEEFC1E101AP, EEEFC1E471AP, EEEFC1V1R0AR, EEEFC1V220AP, EEEFC1V470AP, EEEFC1V101AP, EEEFC1V331AP and EEEFC1C100AR. • rated voltage, max.: 10 to 35V DC• capacitance tolerance: ±20%• temperature range: -40 to +105°C• operating life (at 105°C): 1000h

Specifications

manufacturer
Manufacturer's name EEEFC1A101AP
Design E
Reverse current [mA] 230
Nominal voltage [V DC] 10
Impedance [Ω] 0,4
Loss factor at 120Hz, 20°C 0,19
Data Sheet

Unit price

0,23 €

Stock: 800
Further delivery:
CW 22/2025

Minimum order quantity 100 units or
multiples of 100.
