EYGS0506ZLMM

Compressible pyrolytic graphite sheets of the series EYGS by Panasonic

These lightweight and flexible graphite sheets are very thin (200 µm), easy to cut and up to 40% compressible (600k Pa). They have an operating temperature range of -55°C to +400°C and an excellent thermal conductivity for an efficient thermal management in limited spaces. These pyrolytic graphite sheets are therefore suited for IGBTs, inverters, converters, motor control units, automotive LEDs, medical equipment as well as PCs and peripherals. We offer the following types of this series: EYGS0909ZLX2, EYGS0918ZLX2, EYGS1818ZLX2, EYGS0309ZLMF, EYGS0409ZLMG, EYGS0507ZLML, EYGS0407ZLAL,  EYGS0506ZLMM, EYGS0404ZLMP, EYGS0410ZLSJ, EYGS0609ZLSK, EYGS0305ZLSM and EYGS0204ZLSN.

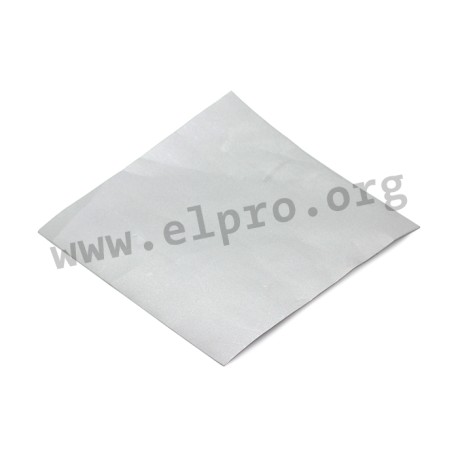

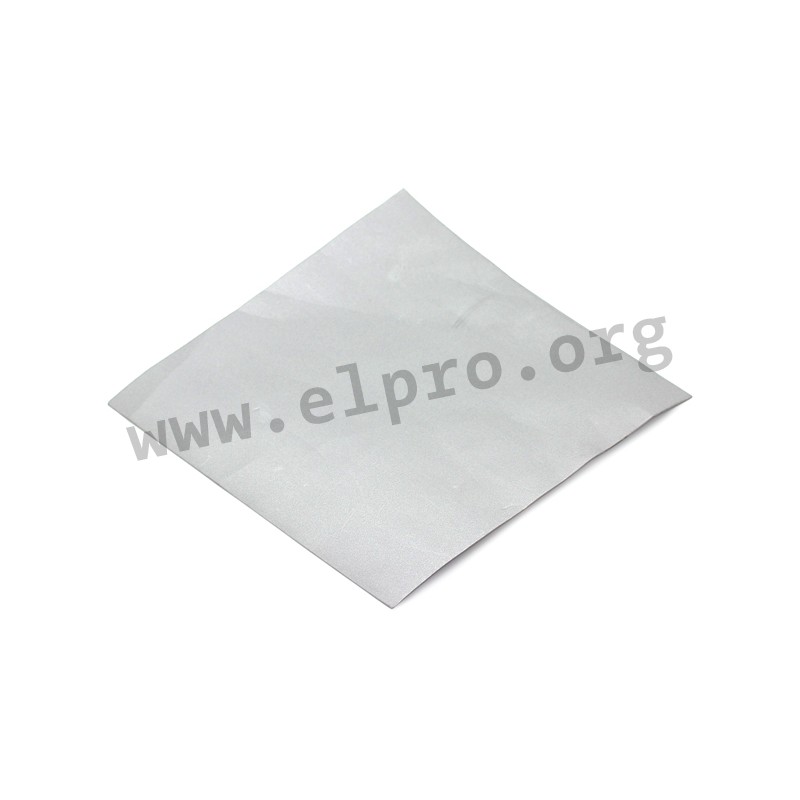

EYGS0506ZLMM, Panasonic pyrolytic graphite sheets, compressible, EYGS series

EYGS0506ZLMM

111750 EYGS0506ZLMM EYGS0506ZLMM Compressible pyrolytic graphite sheets of the series EYGS by Panasonic. These lightweight and flexible graphite sheets are very thin (200 µm), easy to cut and up to 40% compressible (600k Pa). They have an operating temperature range of -55°C to +400°C and an excellent thermal conductivity for an efficient thermal management in limited spaces. These pyrolytic graphite sheets are therefore suited for IGBTs, inverters, converters, motor control units, automotive LEDs, medical equipment as well as PCs and peripherals. We offer the following types of this series: EYGS0909ZLX2, EYGS0918ZLX2, EYGS1818ZLX2, EYGS0309ZLMF, EYGS0409ZLMG, EYGS0507ZLML, EYGS0407ZLAL,  EYGS0506ZLMM, EYGS0404ZLMP, EYGS0410ZLSJ, EYGS0609ZLSK, EYGS0305ZLSM and EYGS0204ZLSN.

Specifications

manufacturer
Manufacturer's name EYGS0506ZLMM
Dimensions [mm] 48x55
Data Sheet

Unit price

3,79 €

Stock: 29
Further delivery:
CW 13/2025
