EYGS0409ZLMG

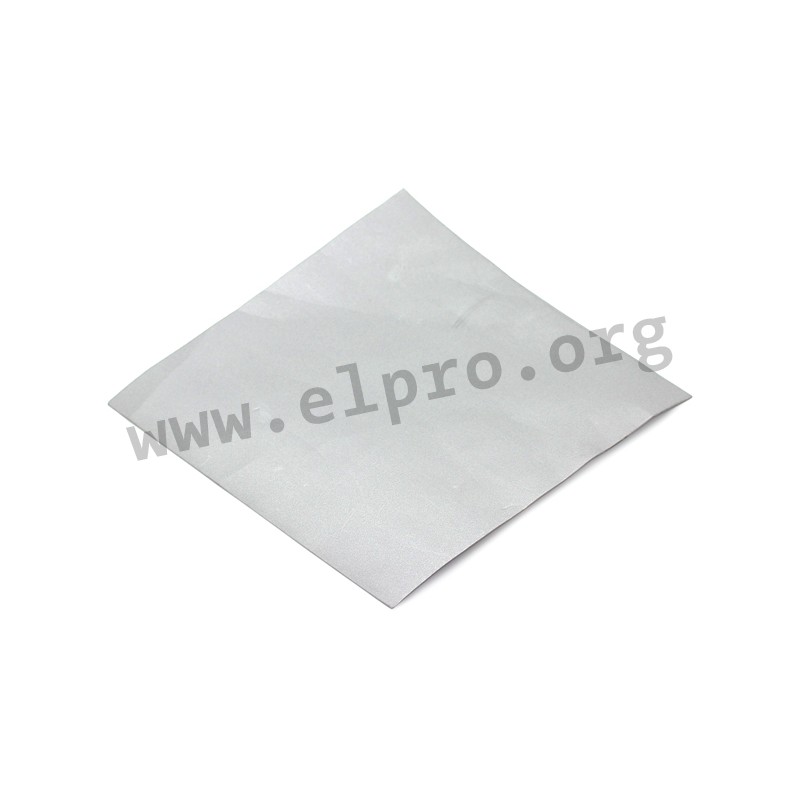

Compressible pyrolytic graphite sheets of the series EYGS by Panasonic

These lightweight and flexible graphite sheets are very thin (200 µm), easy to cut and up to 40% compressible (600k Pa). They have an operating temperature range of -55°C to +400°C and an excellent thermal conductivity for an efficient thermal management in limited spaces. These pyrolytic graphite sheets are therefore suited for IGBTs, inverters, converters, motor control units, automotive LEDs, medical equipment as well as PCs and peripherals. We offer the following types of this series: EYGS0909ZLX2, EYGS0918ZLX2, EYGS1818ZLX2, EYGS0309ZLMF, EYGS0409ZLMG, EYGS0507ZLML, EYGS0407ZLAL,  EYGS0506ZLMM, EYGS0404ZLMP, EYGS0410ZLSJ, EYGS0609ZLSK, EYGS0305ZLSM and EYGS0204ZLSN.

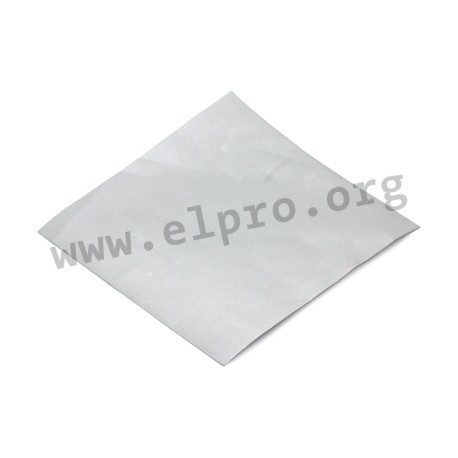

EYGS0409ZLMG, Panasonic pyrolytic graphite sheets, compressible, EYGS series

EYGS0409ZLMG

111748 EYGS0409ZLMG EYGS0409ZLMG Compressible pyrolytic graphite sheets of the series EYGS by Panasonic. These lightweight and flexible graphite sheets are very thin (200 µm), easy to cut and up to 40% compressible (600k Pa). They have an operating temperature range of -55°C to +400°C and an excellent thermal conductivity for an efficient thermal management in limited spaces. These pyrolytic graphite sheets are therefore suited for IGBTs, inverters, converters, motor control units, automotive LEDs, medical equipment as well as PCs and peripherals. We offer the following types of this series: EYGS0909ZLX2, EYGS0918ZLX2, EYGS1818ZLX2, EYGS0309ZLMF, EYGS0409ZLMG, EYGS0507ZLML, EYGS0407ZLAL,  EYGS0506ZLMM, EYGS0404ZLMP, EYGS0410ZLSJ, EYGS0609ZLSK, EYGS0305ZLSM and EYGS0204ZLSN.

Specifications

manufacturer
Manufacturer's name EYGS0409ZLMG
Dimensions [mm] 41x88
Data Sheet

Unit price

5,39 €

Stock: 29
Further delivery:
CW 13/2025
