EVQPUK02K

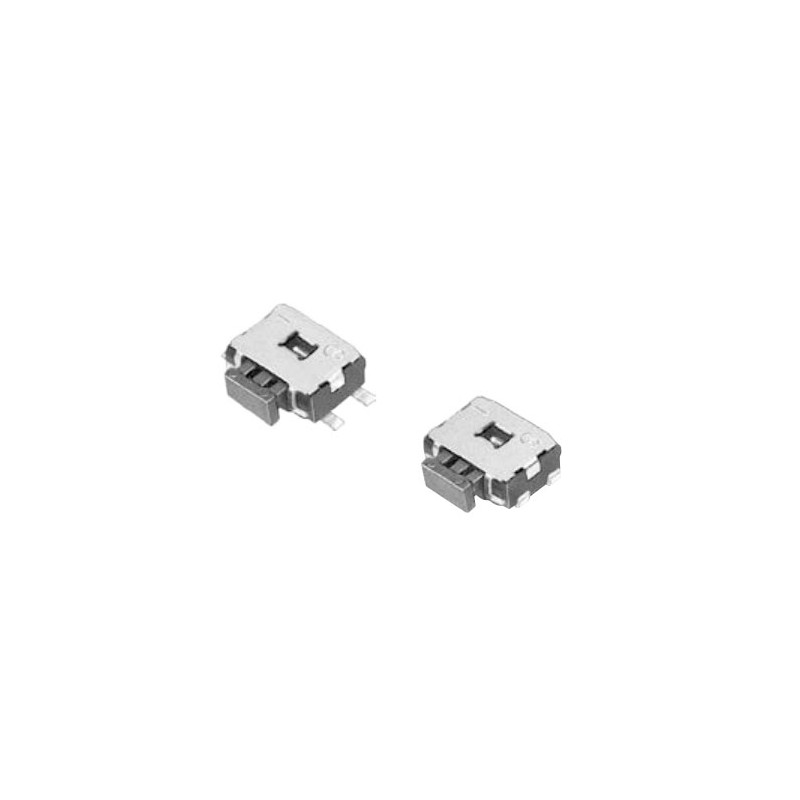

Panasonic SMD switch series EVQPU

Tactile switches with external dimensions of 4,7x3,5x1,65mm and an operating force of 1,6 resp. 2,2N. These devices have a service life of at least 100.000 actuation cycles and are suitable for direct PCB mounting (SMD). They are space-saving and built as a normally open contact (1xNO / SPST). We offer the following types of this Panasonic series: EVQPUJ02K, EVQPUA02K, EVQPUL02K, EVQPUC02K, EVQPUK02K and EVQPUD02K.

  • dimensions: 4,7x3,5x1,65mm
  • operating force: 1,6 to 2,2N
  • rated voltage: 2 to 12V DC
  • rated current: 10µA to 50mA

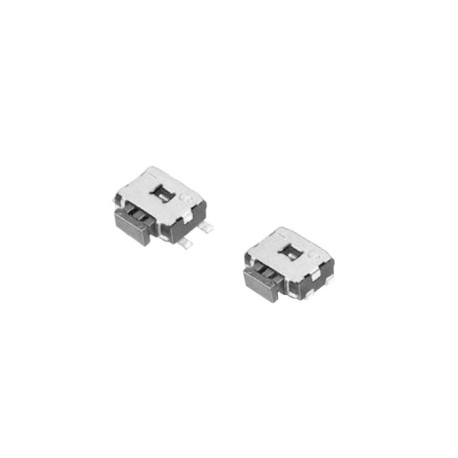

EVQPUK02K, Panasonic tact switches, SMD, 4,7x3,5mm, 1,6N/2,2N, EVQPU series

EVQPUK02K

242587 EVQPUK02K EVQPUK02K Panasonic SMD switch series EVQPU. Tactile switches with external dimensions of 4,7x3,5x1,65mm and an operating force of 1,6 resp. 2,2N. These devices have a service life of at least 100.000 actuation cycles and are suitable for direct PCB mounting (SMD). They are space-saving and built as a normally open contact (1xNO / SPST). We offer the following types of this Panasonic series: EVQPUJ02K, EVQPUA02K, EVQPUL02K, EVQPUC02K, EVQPUK02K and EVQPUD02K. dimensions: 4,7x3,5x1,65mm operating force: 1,6 to 2,2N rated voltage: 2 to 12V DC rated current: 10µA to 50mA

Specifications

manufacturer
Manufacturer's name EVQPUK02K
Operating force [N] 1,6
Dimensions [mm] 4,7x3,5x1,65
Data Sheet

Unit price

0,377 €

Stock: 100
Further delivery:
CW 05/2025

Minimum order quantity 25 units or
multiples of 25.
