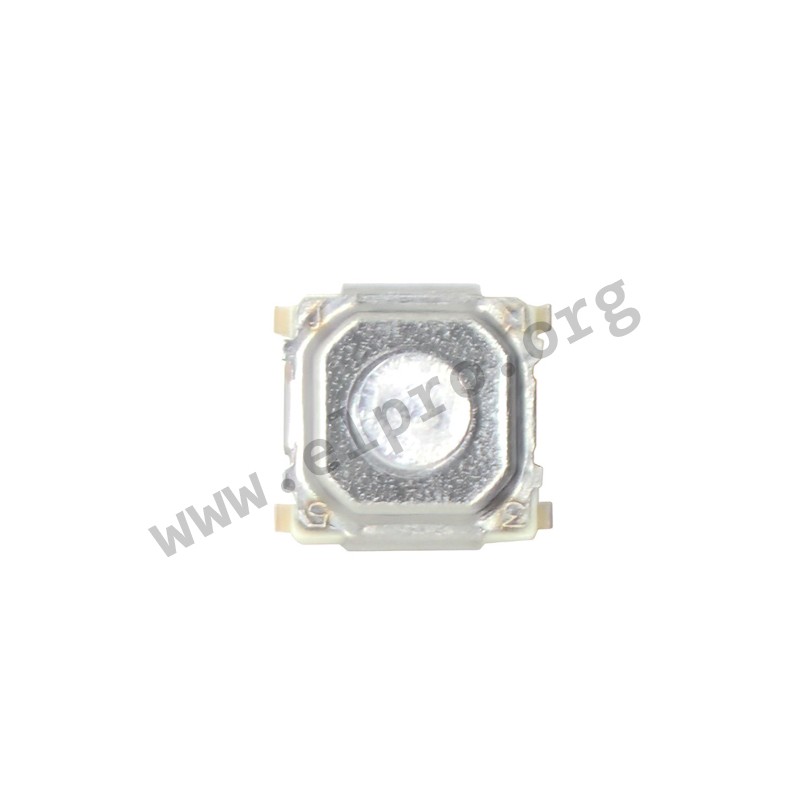

EVQPLMA15

Panasonic SMD switch series EVQPL

Tactile switches with outer dimensions of 4,9x4,9x1,5mm and an operating force of 1N, 1,6N or 2,6N. These devices are suitable for direct PCB mounting (SMD) and are built as normally open contacts (1xNO). They are space-saving and have a service life of at least 200.000 actuation cycles. We offer the following types of this Panasonic series: EVQPLDA15, EVQPLHA15 and EVQPLMA15.

  • dimensions: 4,9x4,9x1,5mm
  • operating force: 1N / 1,6N / 2,6N
  • rated voltage: 2 to 15V DC
  • rated current: 10µA to 20mA

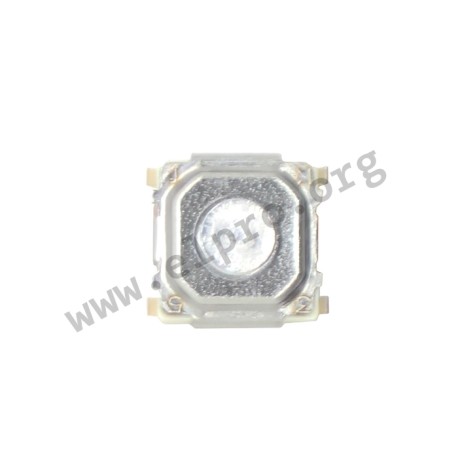

EVQPLMA15, Panasonic tact switches, SMD, 4,9x4,9mm, 1N/1,6N/2,6N, EVQPL series

EVQPLMA15

242545 EVQPLMA15 EVQPLMA15 Panasonic SMD switch series EVQPL. Tactile switches with outer dimensions of 4,9x4,9x1,5mm and an operating force of 1N, 1,6N or 2,6N. These devices are suitable for direct PCB mounting (SMD) and are built as normally open contacts (1xNO). They are space-saving and have a service life of at least 200.000 actuation cycles. We offer the following types of this Panasonic series: EVQPLDA15, EVQPLHA15 and EVQPLMA15. dimensions: 4,9x4,9x1,5mm operating force: 1N / 1,6N / 2,6N rated voltage: 2 to 15V DC rated current: 10µA to 20mA

Specifications

manufacturer
Manufacturer's name EVQPLMA15
Operating force [N] 2,6
Dimensions [mm] 4,9x4,9x1,5
Data Sheet

Unit price

0,165 €

Stock: 75
Further delivery:
CW 10/2025

Minimum order quantity 25 units or
multiples of 25.
