EVPAWED4A

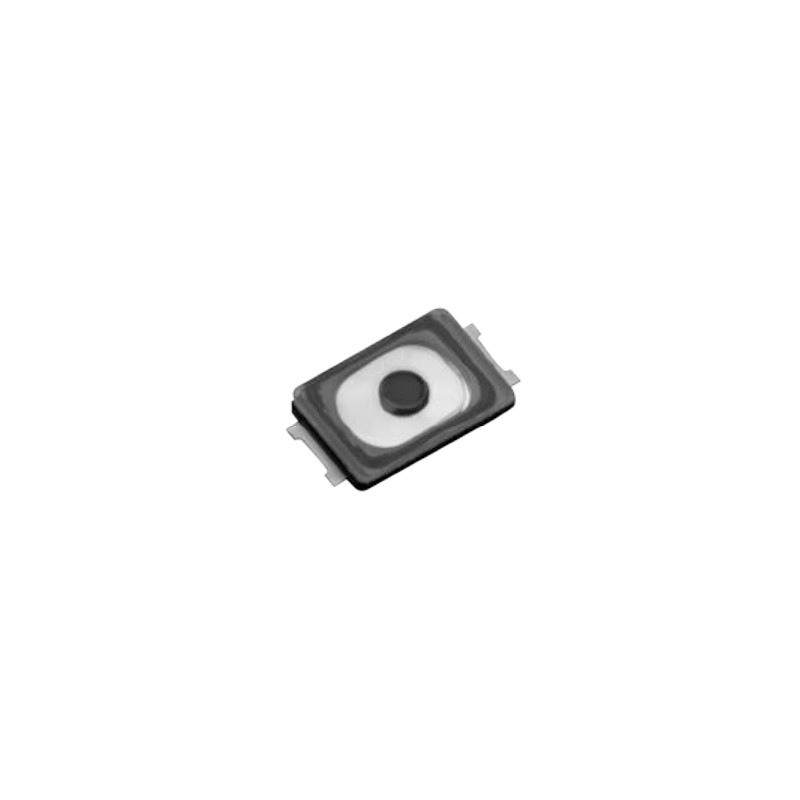

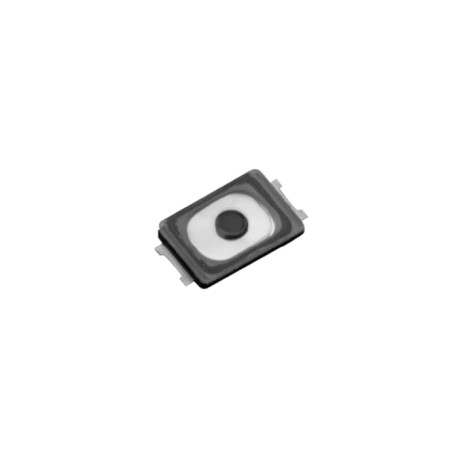

Panasonic SMD switch series EVPAW

Tactile switches with external dimensions of 3x2mm and an operating force of 1,6N (EVAPAWBD4A) resp. 2,4N (EVPAWCD4A) or 3,3N (EVPAWED4A). These switches are suitable for direct PCB mounting (SMD) and are built as normally open contacts (1xNO). They have a height of 0,6mm and a service life of at least 300.000 (EVPAWB_/EVPAWC_) resp. 500.000 (EVPAWED4A) actuation cycles as well as an IP67 rating. We offer the following types of this Panasonic series: EVPAWBD4A, EVPAWCD4A and EVPAWED4A.

  • dimensions: 3x2mm
  • operating force: 1,6N / 2,4N / 3,3N
  • rated voltage: 2 to 15V DC
  • rated current: 10µA to 20mA
EVPAWED4A, Panasonic tactile switches, SMD, 3x2mm, 1,6N/2,4N/3,3N, IP67, EVPAW series

EVPAWED4A

242531 EVPAWED4A EVPAWED4A Panasonic SMD switch series EVPAW. Tactile switches with external dimensions of 3x2mm and an operating force of 1,6N (EVAPAWBD4A) resp. 2,4N (EVPAWCD4A) or 3,3N (EVPAWED4A). These switches are suitable for direct PCB mounting (SMD) and are built as normally open contacts (1xNO). They have a height of 0,6mm and a service life of at least 300.000 (EVPAWB_/EVPAWC_) resp. 500.000 (EVPAWED4A) actuation cycles as well as an IP67 rating. We offer the following types of this Panasonic series: EVPAWBD4A, EVPAWCD4A and EVPAWED4A. dimensions: 3x2mm operating force: 1,6N / 2,4N / 3,3N rated voltage: 2 to 15V DC rated current: 10µA to 20mA

Specifications

manufacturer
Manufacturer's name EVPAWED4A
Operating force [N] 3,3
Dimensions [mm] 3x2
Data Sheet

Unit price

0,313 €

Stock: 100
Further delivery:
CW 10/2025

Minimum order quantity 25 units or
multiples of 25.
