EVPAF7B65

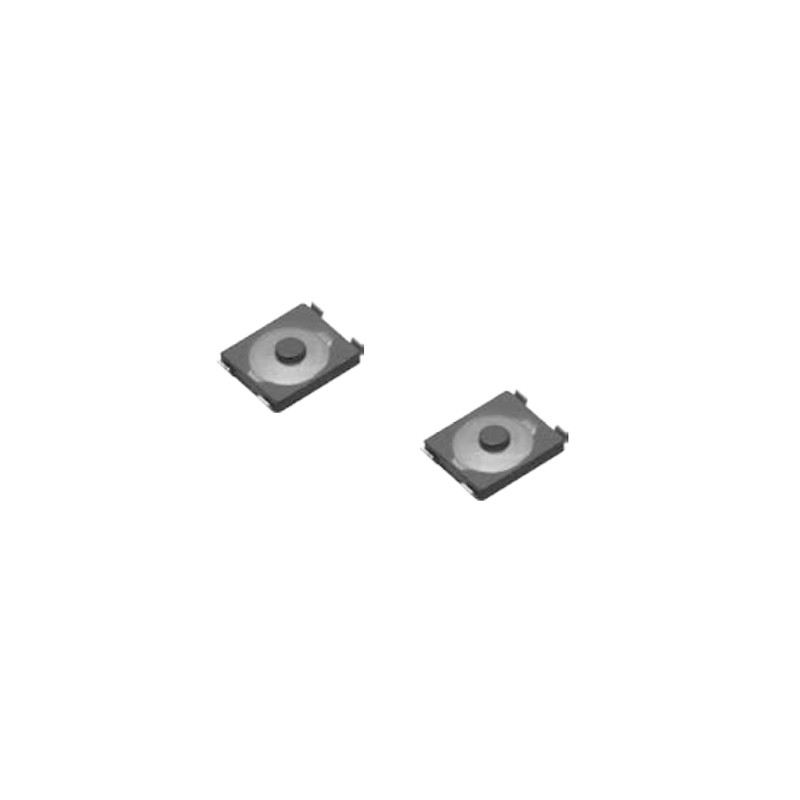

Panasonic SMD switch series EVPAFF

Tactile switches with external dimensions of 3x2,6mm and an operating force of 1,6N (EVPAFFB_), 2,4 (EVPAF7B_) or 3,4N (EVPAF5B_). These devices have a height of 0,65 resp. 0,7mm and are suitable for direct PCB mounting (SMD). They are built as normally open contacts (1xNO) and have a service life of at least 100.000 actuation cycles. We offer the following types of this Panasonic series: EVPAFFB65, EVPAF5B70, EVPAF7B70 and EVPAF7B65.

  • dimensions: 3x2,6mm
  • operating force: 1,6N / 2,4N / 3,4N
  • rated voltage: 2 to 15V DC
  • rated current: 10µA to 20mA

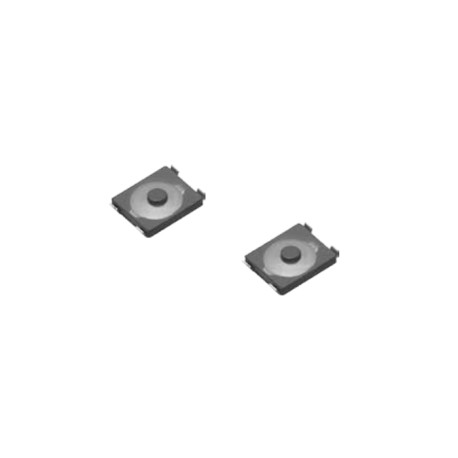

EVPAF7B65, Panasonic tact switches, SMD, 3x2,6mm, 1,6N/2,4N/3,4N, EVPAFF series

EVPAF7B65

242533 EVPAF7B65 EVPAF7B65 Panasonic SMD switch series EVPAFF. Tactile switches with external dimensions of 3x2,6mm and an operating force of 1,6N (EVPAFFB_), 2,4 (EVPAF7B_) or 3,4N (EVPAF5B_). These devices have a height of 0,65 resp. 0,7mm and are suitable for direct PCB mounting (SMD). They are built as normally open contacts (1xNO) and have a service life of at least 100.000 actuation cycles. We offer the following types of this Panasonic series: EVPAFFB65, EVPAF5B70, EVPAF7B70 and EVPAF7B65. dimensions: 3x2,6mm operating force: 1,6N / 2,4N / 3,4N rated voltage: 2 to 15V DC rated current: 10µA to 20mA

Specifications

manufacturer
Manufacturer's name EVPAF7B65
Operating force [N] 2,4
Dimensions [mm] 3x2,6x0,65
Data Sheet

Unit price

0,173 €

Stock: 100
Further delivery:
CW 05/2025

Minimum order quantity 25 units or
multiples of 25.
