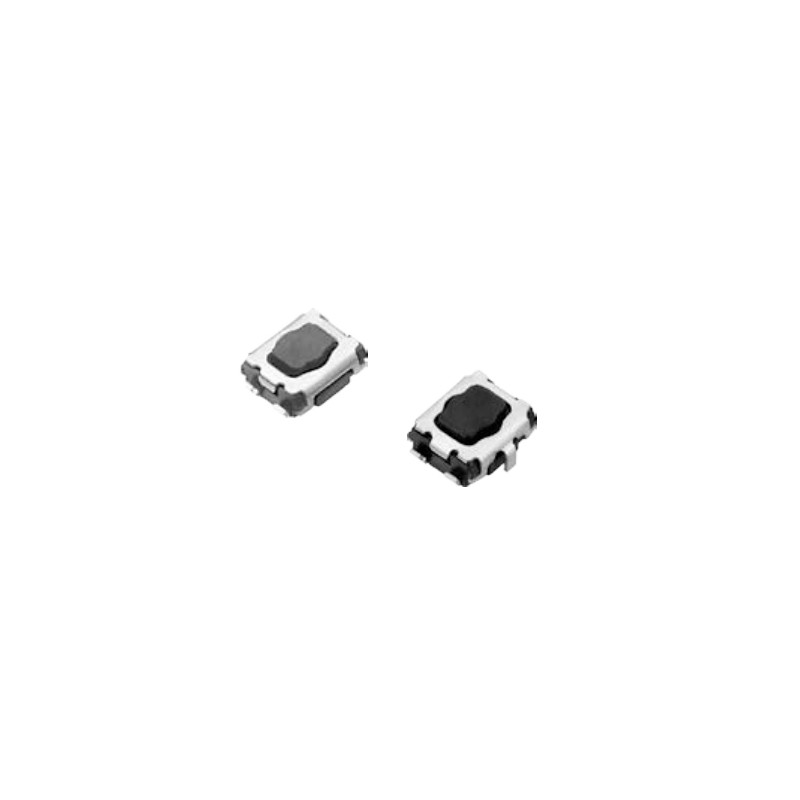

EVPAA602W

Panasonic SMD switch series EVPAA

Tactile switches with external dimensions of 3,5x2,9x1,7mm and an operating force of 1 to 7N. These devices are built as normally open contacts (1xNO) and have a service life of at least 100.000 actuation cycles. They are suitable for direct PCB mounting (SMD) and ideal for applications that require a space-saving switch. We offer the following types of this Panasonic series: EVPAA002K, EVPAA202K, EVPAA402W, EVPAA602W, EVPAA802Q, EVPAAU02Q and EVPAA502W.

  • dimensions: 3,5x2,9x1,7mm
  • operating force: 1 to 7N
  • rated voltage: 2 to 15V DC
  • rated current: 10µA to 20mA
EVPAA602W, Panasonic tactile switches, SMD, 3,5x2,9mm, 1N/1,6N/2,4N/3,5N/5N/7N, EVPAA series

EVPAA602W

242540 EVPAA602W EVPAA602W Panasonic SMD switch series EVPAA. Tactile switches with external dimensions of 3,5x2,9x1,7mm and an operating force of 1 to 7N. These devices are built as normally open contacts (1xNO) and have a service life of at least 100.000 actuation cycles. They are suitable for direct PCB mounting (SMD) and ideal for applications that require a space-saving switch. We offer the following types of this Panasonic series: EVPAA002K, EVPAA202K, EVPAA402W, EVPAA602W, EVPAA802Q, EVPAAU02Q and EVPAA502W. dimensions: 3,5x2,9x1,7mm operating force: 1 to 7N rated voltage: 2 to 15V DC rated current: 10µA to 20mA

Specifications

manufacturer
Manufacturer's name EVPAA602W
Operating force [N] 3,5
Dimensions [mm] 3,5x2,9x1,7
Data Sheet

Unit price

0,285 €

Stock: 3650
Further delivery:
CW 10/2025

Minimum order quantity 25 units or
multiples of 25.
