ETQP8M2R5JFA

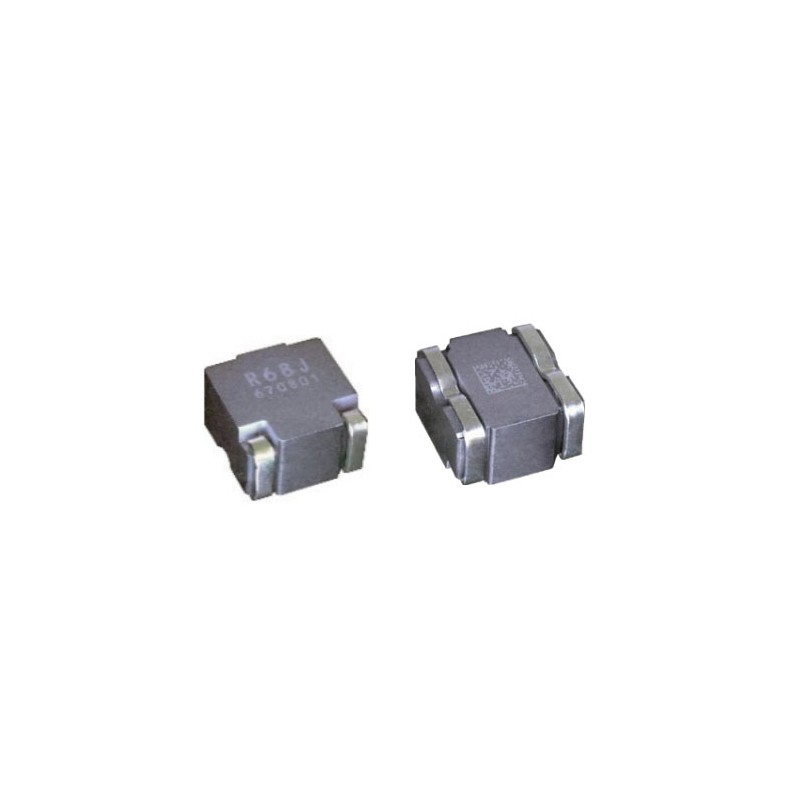

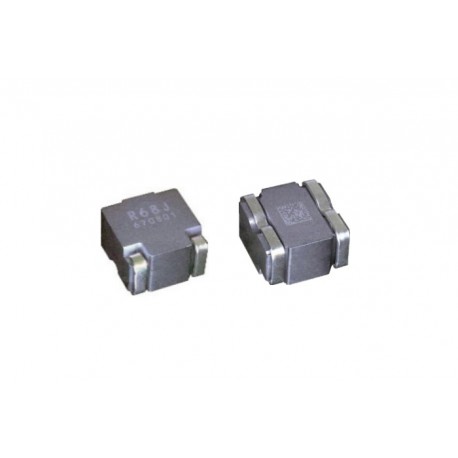

Panasonic SMD inductor series ETQP/PCC-M1280MF

  • shielded SMD power choke coils
  • in a 12,6x13,2x8mm resp. 12,6x13,1x8mm housing
  • comply with AEC-Q200 (suitable for automotive applications)
  • with a high temperature stability, reliability, efficiency as well as bias current
  • a low buzz noise due to a gapless structure
  • suitable for direct PCB mounting
  • operating temperature: -40 to +160°C
  • inductance tolerance: ±20%

ETQP8M2R5JFA

240822 ETQP8M2R5JFA ETQP8M2R5JFA Panasonic SMD inductor series ETQP/PCC-M1280MF. shielded SMD power choke coils in a 12,6x13,2x8mm resp. 12,6x13,1x8mm housing comply with AEC-Q200 (suitable for automotive applications) with a high temperature stability, reliability, efficiency as well as bias current a low buzz noise due to a gapless structure suitable for direct PCB mounting operating temperature: -40 to +160°C inductance tolerance: ±20%

Specifications

manufacturer
Manufacturer's name ETQP8M2R5JFA
DC resistance [mΩ] 2,86
Inductance [µH] 2,5
Dimensions [mm] 12,6x13,2x8
Data Sheet

Unit price

1,40 €

Stock: 100
Further delivery:
CW 24/2025

Minimum order quantity 5 units or
multiples of 5.
