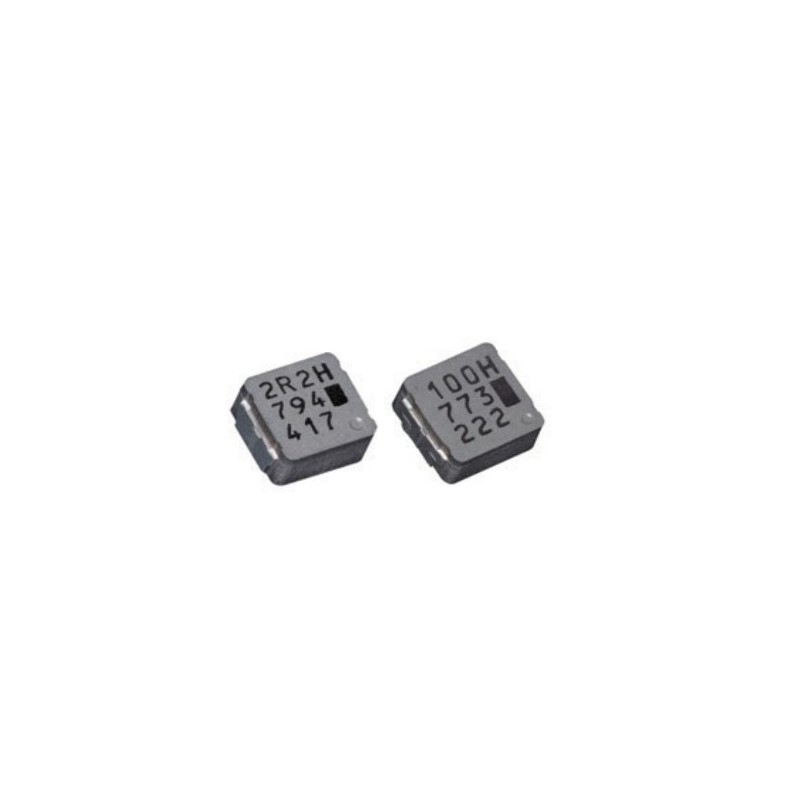

ETQP3M2R2HFP

Panasonic SMD inductor series ETQP/PCC-M0530/0630M-H

  • shielded SMD power choke coils
  • with a high reliability, heat resistance (up to 150°C), efficiency and bias current
  • suitable for automotive applications
  • low profile (3mm)
  • low buzz noise due to a gapless structure
  • comply with AEC-Q200
  • inductance tolerance: ±20%
ETQP3M2R2HFP, Panasonic SMD power choke coils, automotive grade, 5,5x5x3mm and 6,5x6x3mm, ETQP/PCC-M0530/0630M-H series

ETQP3M2R2HFP

240765 ETQP3M2R2HFP ETQP3M2R2HFP Panasonic SMD inductor series ETQP/PCC-M0530/0630M-H. shielded SMD power choke coils with a high reliability, heat resistance (up to 150°C), efficiency and bias current suitable for automotive applications low profile (3mm) low buzz noise due to a gapless structure comply with AEC-Q200 inductance tolerance: ±20%

Specifications

manufacturer
Manufacturer's name ETQP3M2R2HFP
DC resistance [mΩ] 21,45
Inductance [µH] 2,2
Dimensions [mm] 5,5x5x3
Data Sheet

Unit price

0,16 €

Stock: 1635
Further delivery:
CW 10/2025

Minimum order quantity 5 units or
multiples of 5.
