ESE31R11T

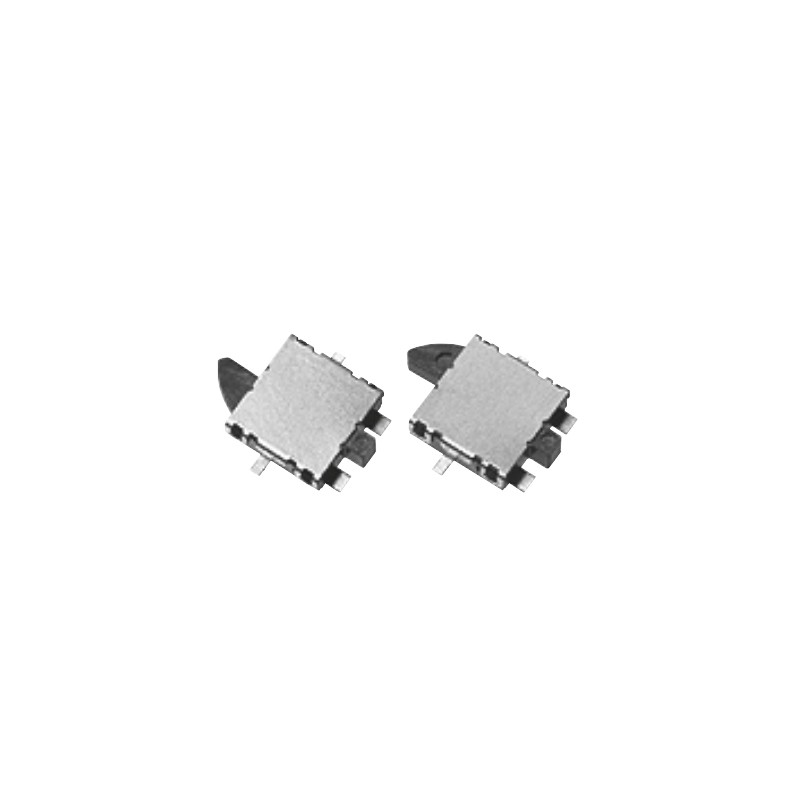

Panasonic microswitch series ESE31

Detector switches (SPST) in a 5,75x1,7x8,65mm housing with a service life of at least 50.000 cycles. These switches have an increased mounting strength of 80N and require an operating force of only 390mN. They have a space-saving design and are suitable for PCB mounting. We offer the following types of this Panasonic series: ESE31R11T and ESE31L11T.

  • rated voltage: 3 to 5V DC
  • rated current: 50µA to 10mA
  • operating force: max. 390mN
  • dimensions: 5,75x1,7x8,65mm

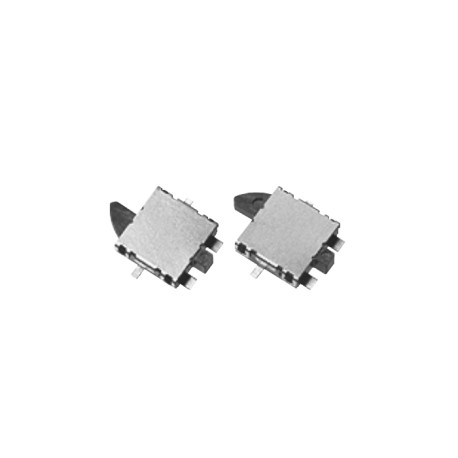

ESE31R11T, Panasonic microswitches, 5,75x1,7x8,65mm, ESE31 series

ESE31R11T

242606 ESE31R11T ESE31R11T Panasonic microswitch series ESE31. Detector switches (SPST) in a 5,75x1,7x8,65mm housing with a service life of at least 50.000 cycles. These switches have an increased mounting strength of 80N and require an operating force of only 390mN. They have a space-saving design and are suitable for PCB mounting. We offer the following types of this Panasonic series: ESE31R11T and ESE31L11T. rated voltage: 3 to 5V DC rated current: 50µA to 10mA operating force: max. 390mN dimensions: 5,75x1,7x8,65mm

Specifications

manufacturer
Manufacturer's name ESE31R11T
Data Sheet

Unit price

0,374 €

Stock: 50
Further delivery:
CW 10/2025

Minimum order quantity 25 units or
multiples of 25.
