ESE20D423

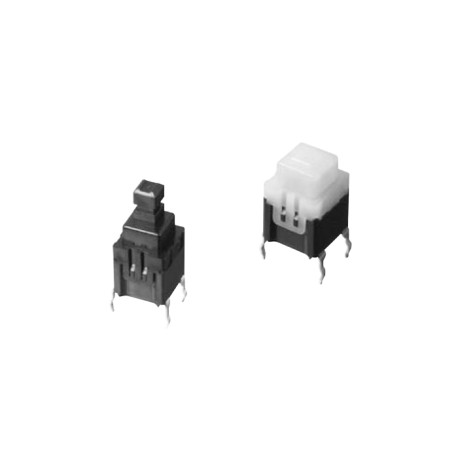

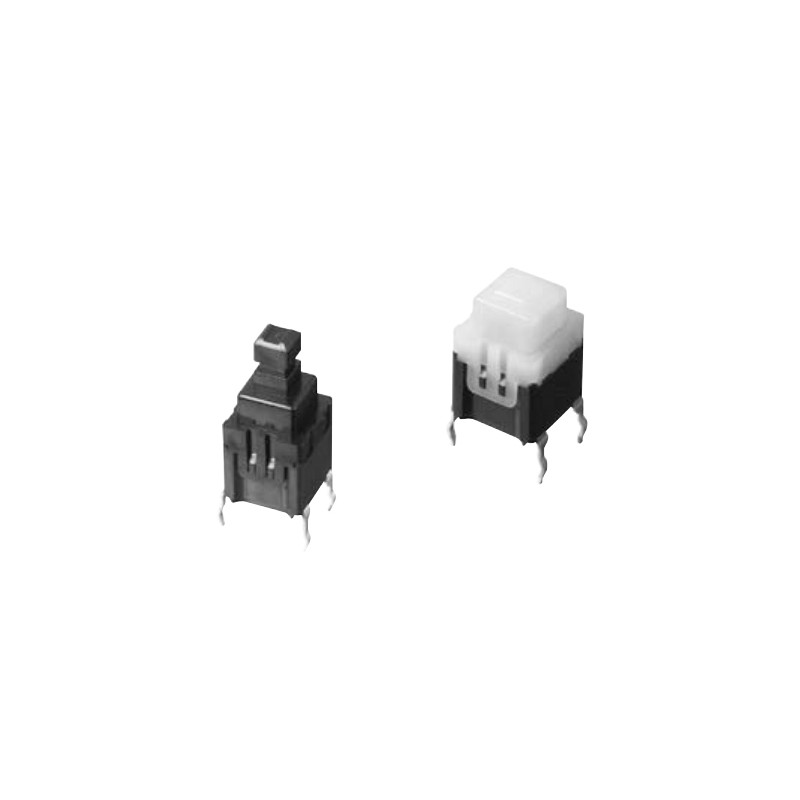

Panasonic switch series ESE20

Tactile switches with outer dimensions of 7,8x7,9mm and an operating force of 2N. These push switches are suitable for PCB mounting and have a long over-travel as well as a height of 8,9mm (without lever). They feature a normally open contact (1xNO) and have a service life of at least 30.000 cycles. We offer the following types of this Panasonic series: ESE20D321 and ESE20D423.

  • dimensions: 7,8x7,9x8,9mm
  • operating force: 2N
  • rated voltage: 5 to 14V DC
  • rated current: 0,01 to 0,1A
ESE20D423, Panasonic tact switches, 7,8x7,9mm, 2N, ESE20 series

ESE20D423

242521 ESE20D423 ESE20D423 Panasonic switch series ESE20. Tactile switches with outer dimensions of 7,8x7,9mm and an operating force of 2N. These push switches are suitable for PCB mounting and have a long over-travel as well as a height of 8,9mm (without lever). They feature a normally open contact (1xNO) and have a service life of at least 30.000 cycles. We offer the following types of this Panasonic series: ESE20D321 and ESE20D423. dimensions: 7,8x7,9x8,9mm operating force: 2N rated voltage: 5 to 14V DC rated current: 0,01 to 0,1A

Specifications

manufacturer
Manufacturer's name ESE20D423
Operating force [N] 2
Dimensions [mm] 7,8x7,9
Data Sheet

Unit price

0,917 €

Stock: 50
Further delivery:
CW 06/2025

Minimum order quantity 25 units or
multiples of 25.
