ESE11MH2T

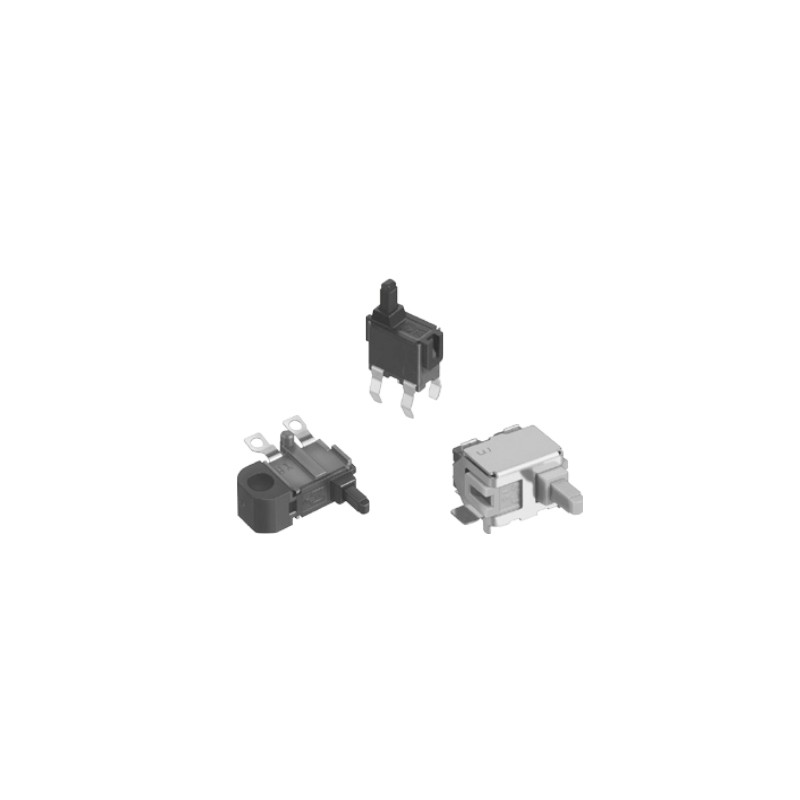

Panasonic microswitch series ESE11

Detector switches with a size of only 3x5,2x6,1mm (ESE11SV1) resp. 6,1x6,4x4,25mm and a service life of at least 50.000 actuation cycles. These switches are suitable for direct PCB mounting (SMD) and have an operating force of max. 350mN. They are single-pole types (SPST) and have a space-saving design. We offer the following types of this Panasonic series: ESE11SV1, ESE11MH1T and ESE11MH2T.

  • rated voltage: 3 to 5V DC
  • rated current: 50µA to 10mA
  • operating force: max. 350mN
  • dimensions: 3x5,2x6,1mm (ESE11SV1) resp. 6,1x6,4x4,25mm

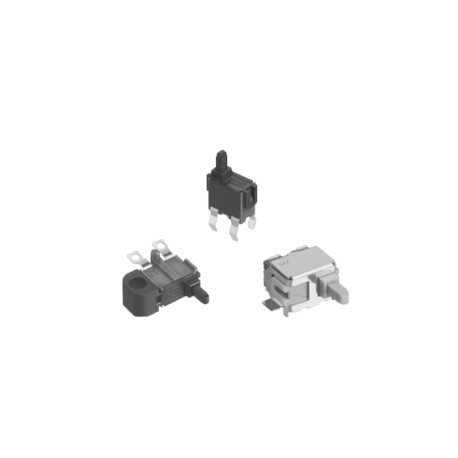

ESE11MH2T, Panasonic microswitches, SMD, 3x5,2x6,1mm / 6,1x6,4x4,25mm, ESE11 series

ESE11MH2T

242591 ESE11MH2T ESE11MH2T Panasonic microswitch series ESE11. Detector switches with a size of only 3x5,2x6,1mm (ESE11SV1) resp. 6,1x6,4x4,25mm and a service life of at least 50.000 actuation cycles. These switches are suitable for direct PCB mounting (SMD) and have an operating force of max. 350mN. They are single-pole types (SPST) and have a space-saving design. We offer the following types of this Panasonic series: ESE11SV1, ESE11MH1T and ESE11MH2T. rated voltage: 3 to 5V DC rated current: 50µA to 10mA operating force: max. 350mN dimensions: 3x5,2x6,1mm (ESE11SV1) resp. 6,1x6,4x4,25mm

Specifications

manufacturer
Manufacturer's name ESE11MH2T
Data Sheet

Unit price

0,275 €

Stock: 50
Further delivery:
CW 10/2025

Minimum order quantity 25 units or
multiples of 25.
