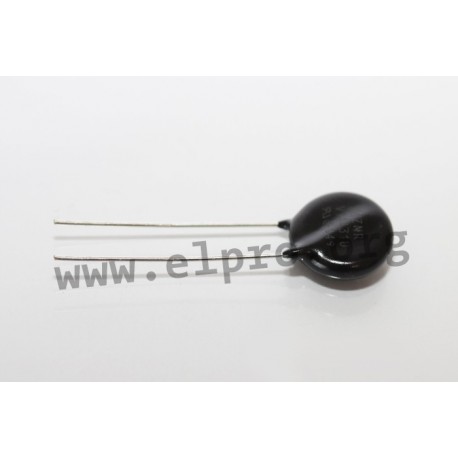

ERZV14D331

Panasonic metal oxide varistor series ERZV

  • varistors (MOV) for absorbing transient overvoltages
  • "ZNR" transient / surge absorbers (type D)
  • with a high energy handling capability as well as a large withstanding surge current capability
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
ERZV14D331

ERZV14D331

45407 ERZV14D331 ERZV14D331 Panasonic metal oxide varistor series ERZV. varistors (MOV) for absorbing transient overvoltages  "ZNR" transient / surge absorbers (type D) with a high energy handling capability as well as a large withstanding surge current capability   operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

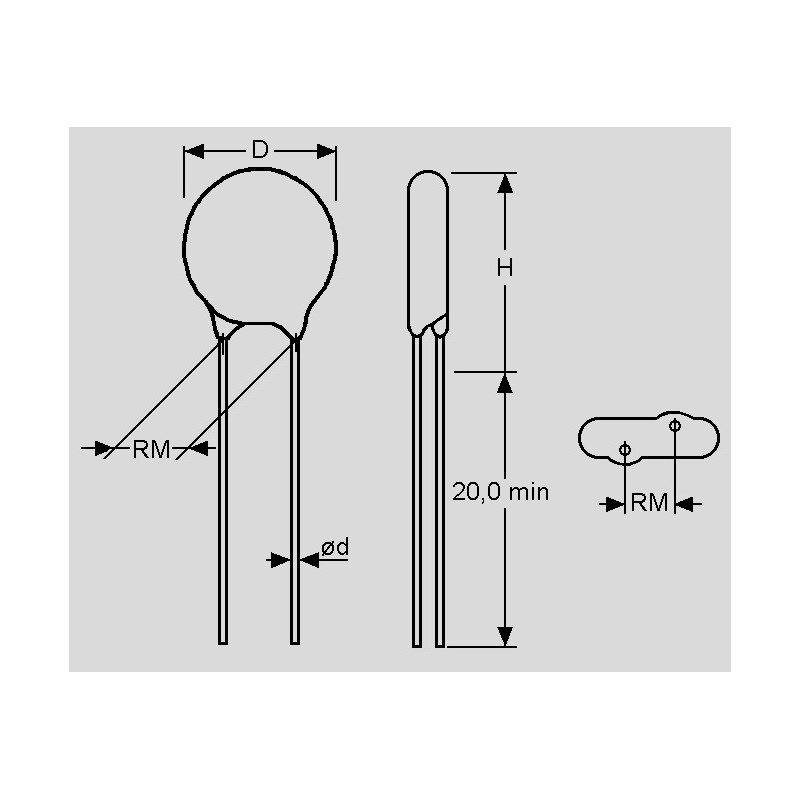

Specifications

manufacturer
Manufacturer's name ERZV14D331
Current [A] 6000
Diameter [mm] 15,5
Height [mm] 18,5
(Max.) RMS voltage [V] 210
Pitch [mm] 7,5
Operating voltage [V] 270
Varistor voltage at 1mA [V] 330
D [mm] 0,8
Data Sheet

Unit price

0,194 €

Stock: 0
Further delivery:
CW 10/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
