ERZV10D560

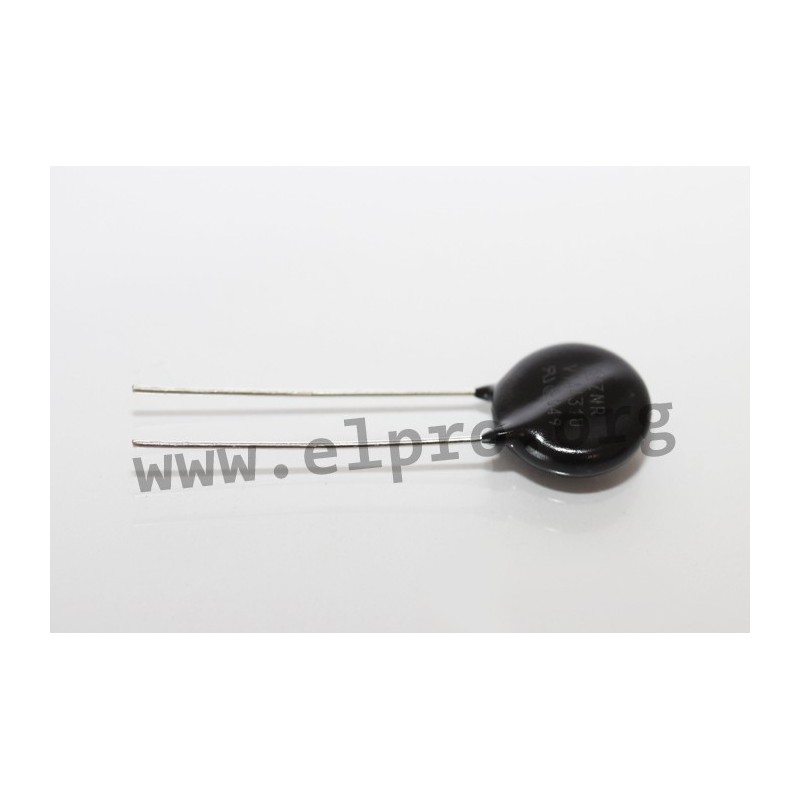

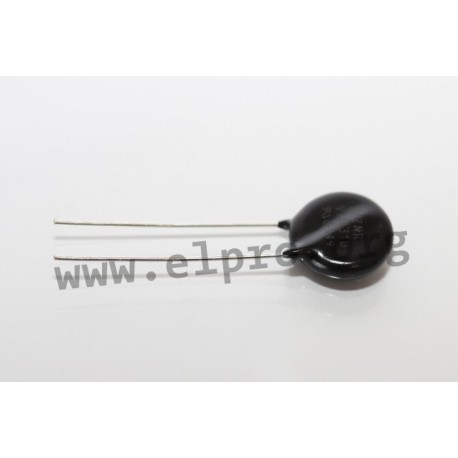

Panasonic metal oxide varistor series ERZV

  • varistors (MOV) for absorbing transient overvoltages
  • "ZNR" transient / surge absorbers (type D)
  • with a high energy handling capability as well as a large withstanding surge current capability
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
ERZV10D560

ERZV10D560

45398 ERZV10D560 ERZV10D560 Panasonic metal oxide varistor series ERZV. varistors (MOV) for absorbing transient overvoltages  "ZNR" transient / surge absorbers (type D) with a high energy handling capability as well as a large withstanding surge current capability   operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name ERZV10D560
Current [A] 1000

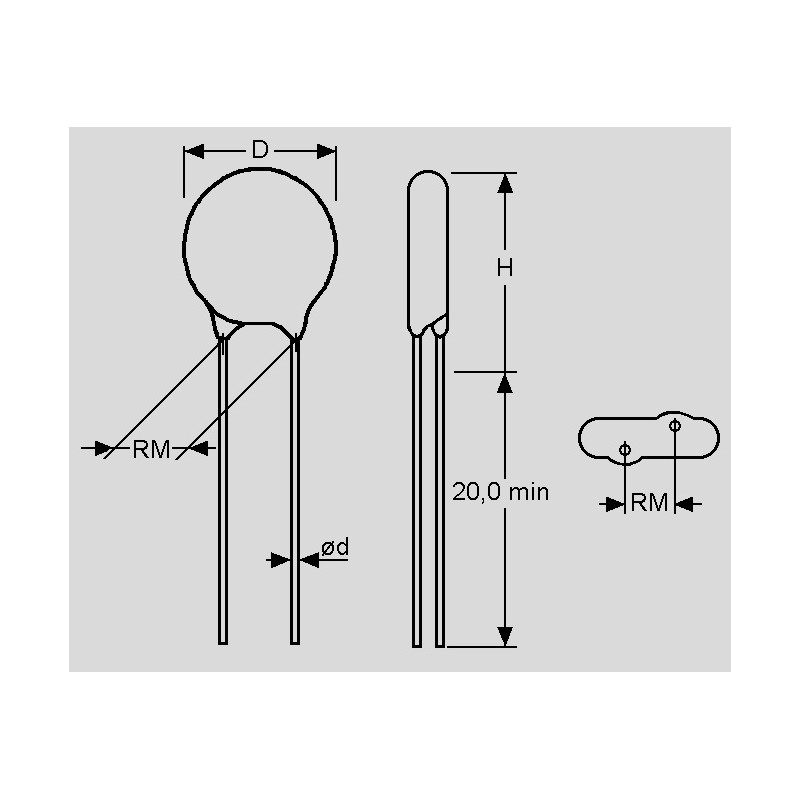

Diameter [mm] 11,5
Height [mm] 14,5
(Max.) RMS voltage [V] 35
Pitch [mm] 7,5
Operating voltage [V] 45
Varistor voltage at 1mA [V] 56
D [mm] 0,8
Data Sheet

Unit price

0,121 €

Stock: 300
Further delivery:
CW 21/2025

Minimum order quantity 25 units or
multiples of 25.
