> Passive elements>NTCs/PTCs/varistors>Varistors>Panasonic metal oxide varistors, pitch 5/7,5/10mm, ERZV series>ERZV07D390

Manufacturers

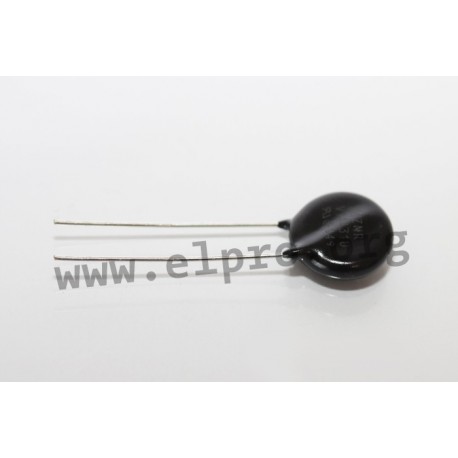

ERZV07D390

Panasonic metal oxide varistor series ERZV

  • varistors (MOV) for absorbing transient overvoltages
  • "ZNR" transient / surge absorbers (type D)
  • with a high energy handling capability as well as a large withstanding surge current capability
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
ERZV07D390

ERZV07D390

45377 ERZV07D390 ERZV07D390 Panasonic metal oxide varistor series ERZV. varistors (MOV) for absorbing transient overvoltages  "ZNR" transient / surge absorbers (type D) with a high energy handling capability as well as a large withstanding surge current capability   operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name ERZV07D390
Current [A] 500

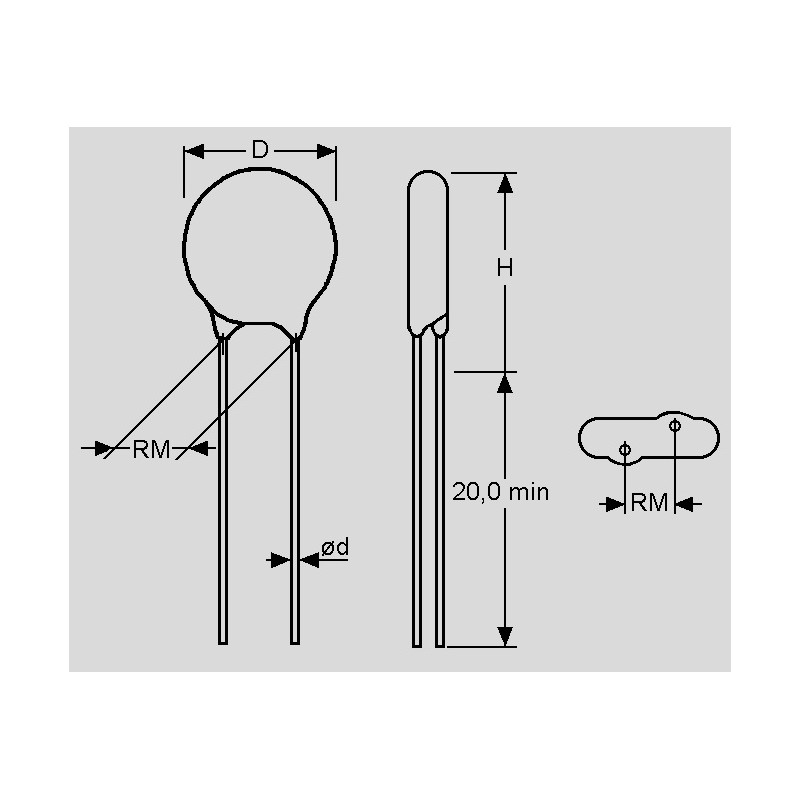

Diameter [mm] 8,5
Height [mm] 11,5
(Max.) RMS voltage [V] 25
Pitch [mm] 5
Operating voltage [V] 31
Varistor voltage at 1mA [V] 39
D [mm] 0,6
Data Sheet

Unit price

0,089 €

Stock: 50
Next incoming goods:
CW 06/2025
1000 units

Further delivery:
CW 21/2025

Minimum order quantity 25 units or
multiples of 25.
