> Passive elements>NTCs/PTCs/varistors>Varistors>Panasonic metal oxide varistors, pitch 5/7,5/10mm, ERZV series>ERZV05D680

Manufacturers

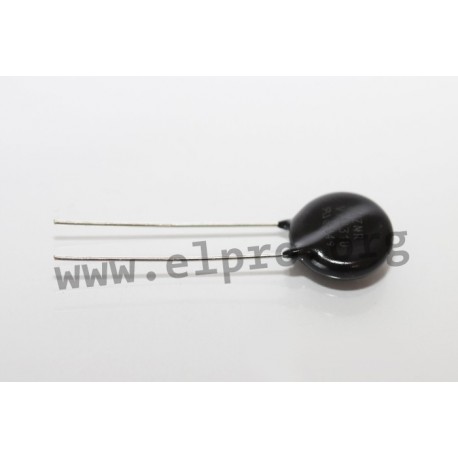

ERZV05D680

Panasonic metal oxide varistor series ERZV

  • varistors (MOV) for absorbing transient overvoltages
  • "ZNR" transient / surge absorbers (type D)
  • with a high energy handling capability as well as a large withstanding surge current capability
  • operating temperature: -40 to +85°C
  • pitch: 5 resp. 7,5mm
  • bulk
ERZV05D680

ERZV05D680

45370 ERZV05D680 ERZV05D680 Panasonic metal oxide varistor series ERZV. varistors (MOV) for absorbing transient overvoltages  "ZNR" transient / surge absorbers (type D) with a high energy handling capability as well as a large withstanding surge current capability   operating temperature: -40 to +85°C pitch: 5 resp. 7,5mm bulk

Specifications

manufacturer
Manufacturer's name ERZV05D680
Current [A] 250

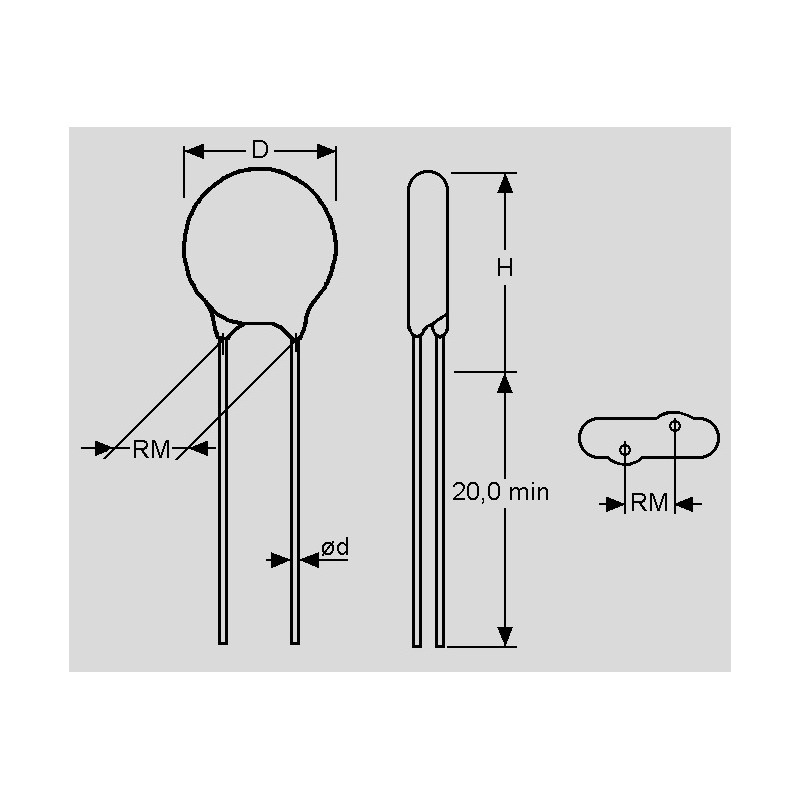

Diameter [mm] 7
Height [mm] 10
(Max.) RMS voltage [V] 40
Pitch [mm] 5
Operating voltage [V] 56
Varistor voltage at 1mA [V] 68
D [mm] 0,6
Data Sheet

Unit price

0,049 €

Stock: 0
Further delivery:
CW 21/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
