ERJ8BWJR068V

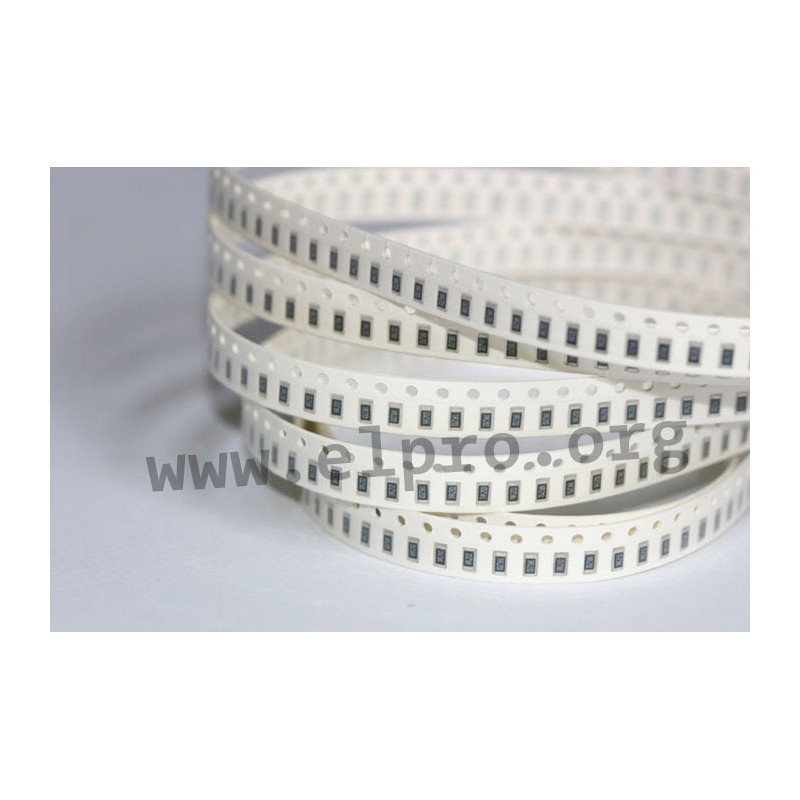

Panasonic SMD resistor series ERJ8BW

  • small surface mount thick film resistors in a 1206 housing
  • for current sensing
  • with a high reliability due to three layers of electrodes and a metal glaze thick film resistive element
  • improved high-power/resistance to pulse characteristics
  • operating temperature: -55 to +155°C
  • rated dissipation (70°C): 1W
  • taped

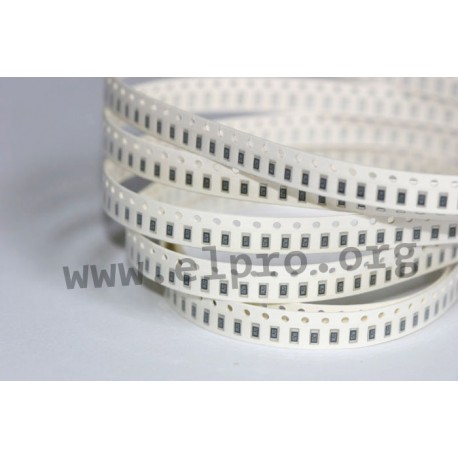

ERJ8BWJR068V, Panasonic SMD resistors, up to 155°C, 1206 housing, 1/5, 1W, ERJ8BW series

ERJ8BWJR068V

133400 ERJ8BWJR068V ERJ8BWJR068V Panasonic SMD resistor series ERJ8BW. small surface mount thick film resistors in a 1206 housing for current sensing with a high reliability due to three layers of electrodes and a metal glaze thick film resistive element improved high-power/resistance to pulse characteristics operating temperature: -55 to +155°C rated dissipation (70°C): 1W taped

Specifications

manufacturer
Manufacturer's name ERJ8BWJR068V
Resistance tolerance [%] 5
Resistance [Ω] 0,068
Data Sheet

Unit price

0,172 €

Stock: 4500
Further delivery:
CW 24/2025

Minimum order quantity 100 units or
multiples of 100.
