ERJ6GEYJ471V

Panasonic SMD resistor series ERJ6GE

  • thick film resistors in a 0805 SMD housing
  • suitable for current measurement as well as for flow and reflow soldering
  • comply with AEC-Q200 (automotive grade)
  • with a high reliability due to three layers of electrodes and a metal glaze resistive element
  • rated power: 0,125W (70°C)
  • tolerance: ±5%
  • taped

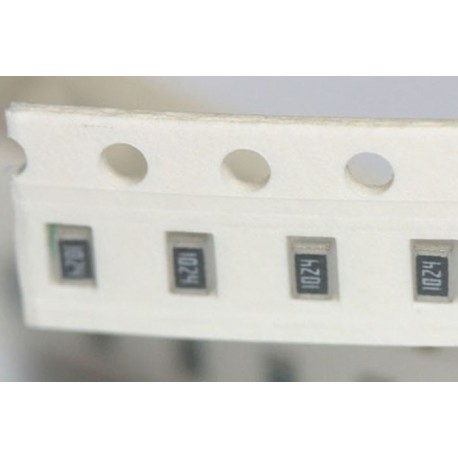

ERJ6GEYJ471V, Panasonic SMD resistors, 0805 housing, 5%, 0,125W, ERJ6GE series

ERJ6GEYJ471V

108018 ERJ6GEYJ471V ERJ6GEYJ471V Panasonic SMD resistor series ERJ6GE. thick film resistors in a 0805 SMD housing suitable for current measurement as well as for flow and reflow soldering comply with AEC-Q200 (automotive grade) with a high reliability due to three layers of electrodes and a metal glaze resistive element rated power: 0,125W (70°C) tolerance: ±5% taped

Specifications

manufacturer
Manufacturer's name ERJ6GEYJ471V
Case 0805
Design taped
Resistance [Ω] 470
Power [W] 0,125
Tolerance [%] 5
Data Sheet

Unit price

0,0079 €

Stock: 8000
Further delivery:
CW 23/2025

Minimum order quantity 100 units or
multiples of 100.
