> Passive elements>Resistors>SMD resistors>Panasonic SMD resistors, 0805 housing, 1%, 0,125W, ERJ6EN series>ERJ6ENF1002V

Manufacturers

ERJ6ENF1002V

Panasonic SMD resistor series ERJ6EN

  • precision thick film resistors in a 0805 SMD housing
  • comply with AEC-Q200 (automotive grade)
  • suitable for current measurement as well as for flow and reflow soldering
  • with a high reliability due to three layers of electrodes and a metal glaze resistive element
  • rated power: 0,125W (70°C)
  • tolerance: ±1%
  • taped

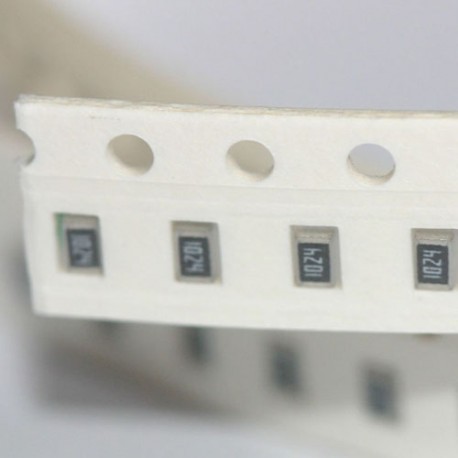

0805 housing

ERJ6ENF1002V

108055 ERJ6ENF1002V ERJ6ENF1002V Panasonic SMD resistor series ERJ6EN. precision thick film resistors in a 0805 SMD housing comply with AEC-Q200 (automotive grade) suitable for current measurement as well as for flow and reflow soldering with a high reliability due to three layers of electrodes and a metal glaze resistive element  rated power: 0,125W (70°C) tolerance: ±1% taped

Specifications

manufacturer
Manufacturer's name ERJ6ENF1002V
Case 0805
Design taped
Resistance [Ω] 10k
Power [W] 0,125
Tolerance [%] 1
Data Sheet

Unit price

0,0118 €

Stock: 1700
Next incoming goods:
CW 03/2025
5000 units

Further delivery:
CW 27/2025

Minimum order quantity 100 units or
multiples of 100.
