> Passive elements>Resistors>SMD resistors>Panasonic SMD resistors, 0402 housing, 0,1%, 0,1W, ERA2A series>ERA2AEB563X

Manufacturers

ERA2AEB563X

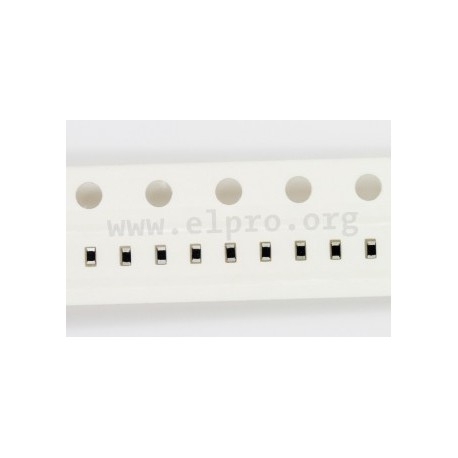

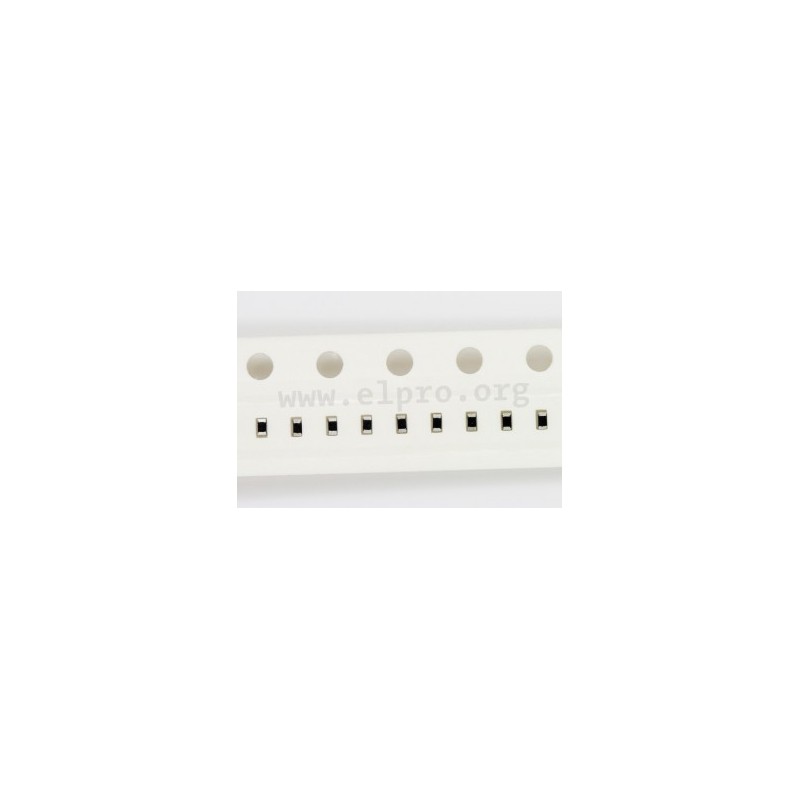

Panasonic SMD resistor series ERA2A

  • thin film chip resistors in a 0402 housing
  • suitable for direct PCB mounting
  • with a low temperature coefficient (Tc=25ppm/°C) and a high reliability at high temperature and humidity
  • comply with AEC-Q200, IEC 60115-8, JIS C 5201-8 and EIAJ RC-2133B
  • power rating: 0,063W
  • resistance tolerance: ±0,1%
  • taped
ERA2AEB563X, Panasonic SMD resistors, 0402 housing, 0,1%, 0,1W, ERA2A series

ERA2AEB563X

234448 ERA2AEB563X ERA2AEB563X Panasonic SMD resistor series ERA2A. thin film chip resistors in a 0402 housing  suitable for direct PCB mounting with a low temperature coefficient (Tc=25ppm/°C) and a high reliability at high temperature and humidity  comply with AEC-Q200, IEC 60115-8, JIS C 5201-8 and EIAJ RC-2133B power rating: 0,063W resistance tolerance: ±0,1% taped

Specifications

manufacturer
Manufacturer's name ERA2AEB563X
Design 0402
Resistance [Ω] 56k
Power [W] 0,063
Tolerance [%] 0,1
Data Sheet

Unit price

0,043 €

Stock: 2800
Further delivery:
CW 19/2025

Minimum order quantity 100 units or
multiples of 100.
