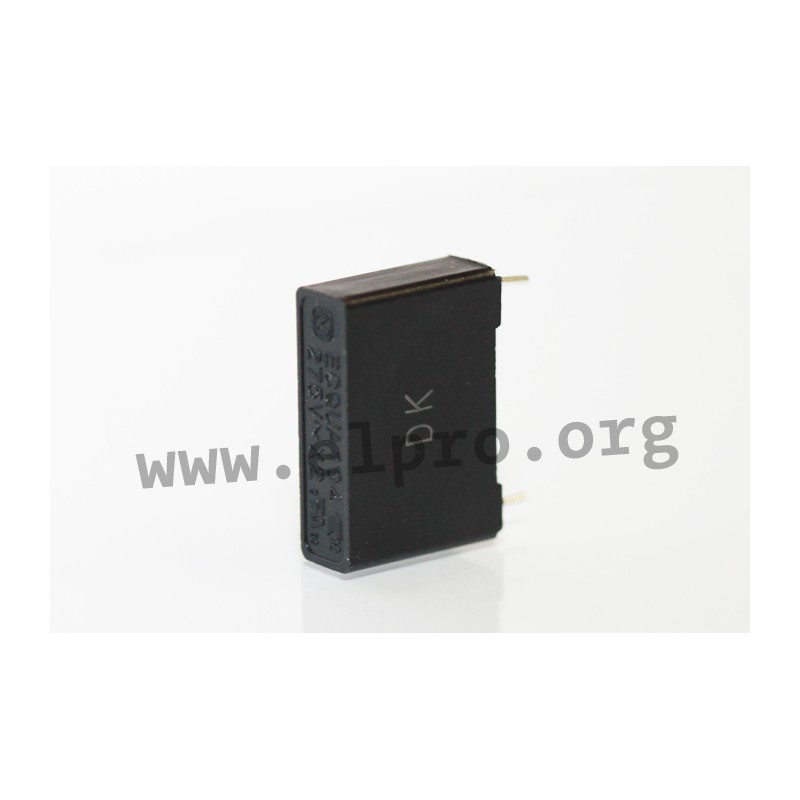

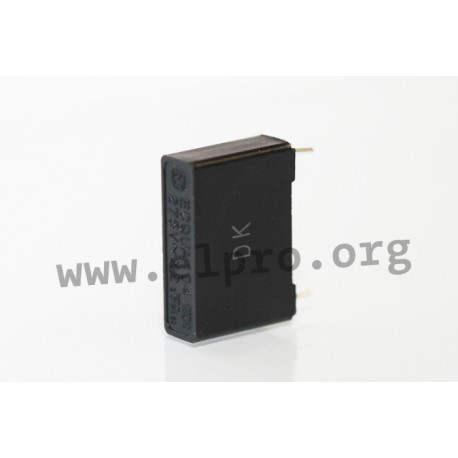

ECQUAAF154KA

MKP- ECQUA metallized film capacitors by Panasonic

* series: ECQUA
* wound technology
* class X2
* style: bulk
* by Panasonic
* compact
* equipped with a safety mechanism
* flame-retardant plastic case
* non-combustible resign
* high insulation resistance
* rated voltage (50/60Hz): 275V AC
* capacitance tolerance: ±10%
* temperature range: -40...+110°C
insulation resistance
* C<0,33µF: >15x103 MΩ (20°C, 100VDC, 60s)
* C>0,33µF: >5x103 MΩ (20°C, 100VDC, 60s)
* C<0,47µF: >2x103 MΩ (20°C, 500VDC, 60s)
dissipation factor tan d (1kHz, 20°C)
* C<1 µF: <1,0%
* C>1 µF: <2,0%

ECQUAAF154KA

ECQUAAF154KA

40846 ECQUAAF154KA ECQUAAF154KA MKP- ECQUA metallized film capacitors by Panasonic. * series: ECQUA* wound technology* class X2 * style: bulk* by Panasonic* compact* equipped with a safety mechanism* flame-retardant plastic case* non-combustible resign* high insulation resistance* rated voltage (50/60Hz): 275V AC* capacitance tolerance: ±10%* temperature range: -40...+110°Cinsulation resistance* C&lt;0,33µF: &gt;15x103 MΩ (20°C, 100VDC, 60s)* C&gt;0,33µF: &gt;5x103 MΩ (20°C, 100VDC, 60s)* C&lt;0,47µF: &gt;2x103 MΩ (20°C, 500VDC, 60s)dissipation factor tan d (1kHz, 20°C)* C&lt;1 µF: &lt;1,0%* C&gt;1 µF: &lt;2,0%

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name ECQUAAF154KA
Rated capacitance [µF] 0,15
Height [mm] 13
Pitch [mm] 15
T [mm] 6
Length [mm] 17,5
Data Sheet

Unit price

0,122 €

Stock: 15500

Minimum order quantity 100 units or
multiples of 100.
