ECQUAAF474TA

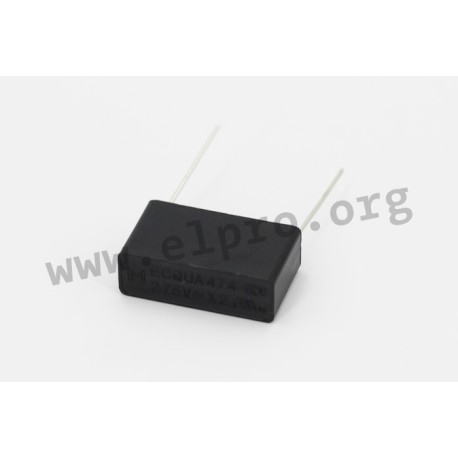

Panasonic MKP EMI/RFI suppression capacitor series ECQUA

MKP EMI/RFI suppression capacitors in a compact, flame-retardant plastic case. These class X2 capacitors are equipped with a safety mechanism, have short pins (4mm) and a high insulation resistance. They are suited for automotive applications and are AEC-Q200-compliant.

  • rated voltage (50/60Hz): 275V AC
  • capacitance tolerance ECQUAA_T_: ±10%
  • capacitance tolerance ECQUAA_S_: ±20%
  • temperature range: -40 to +110°C
ECQUAAF474TA, Panasonic MKP EMI/RFI suppression capacitors, class X2, 275V, for automotive, ECQUA series

ECQUAAF474TA

127344 ECQUAAF474TA ECQUAAF474TA Panasonic MKP EMI/RFI suppression capacitor series ECQUA. MKP EMI/RFI suppression capacitors in a compact, flame-retardant plastic case. These class X2 capacitors are equipped with a safety mechanism, have short pins (4mm) and a high insulation resistance. They are suited for automotive applications and are AEC-Q200-compliant. rated voltage (50/60Hz): 275V ACcapacitance tolerance ECQUAA_T_: ±10%capacitance tolerance ECQUAA_S_: ±20%temperature range: -40 to +110°C

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name ECQUAAF474TA
Nominal voltage [V AC] 275
Capacity [µF] 0,47
Pitch [mm] 22,5
Data Sheet

Unit price

0,346 €

Stock: 1200

Minimum order quantity 50 units or
multiples of 50.
