> Passive elements>Capacitors>Electrolytic capacitors>Panasonic electrolytic capacitors, radial, 105°C, EB series>EEUEB1A332

Manufacturers

EEUEB1A332

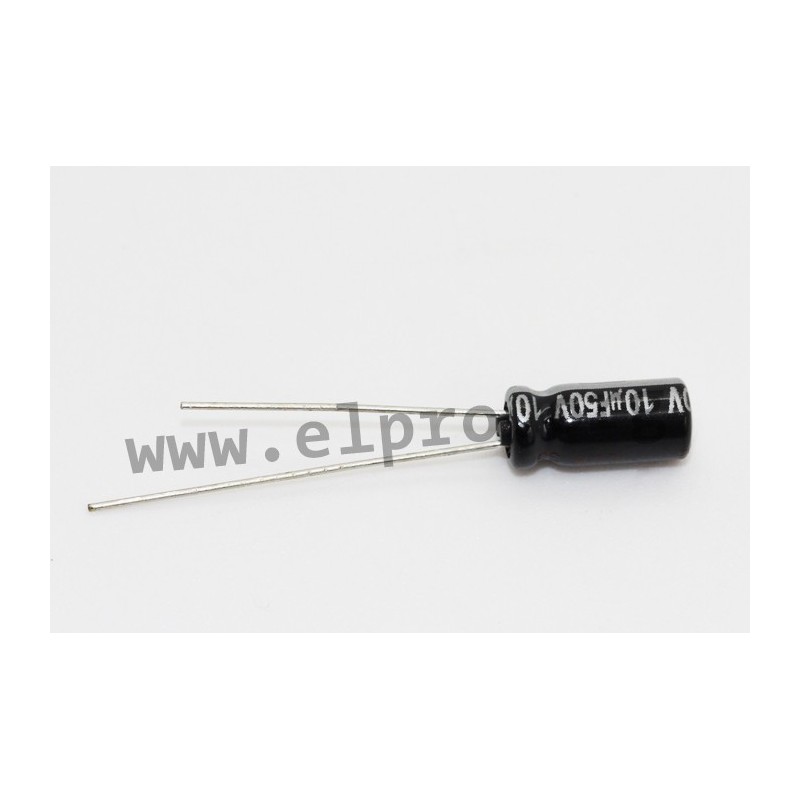

Panasonic electrolytic capacitor series EB

  • aluminium electrolytic capacitors
  • radial type
  • service life: 5000 to 10 000h (at 105°C)
  • operating temperature 10 to 63V: -40 to +105°C
  • operating temperature 160 to 400V: -25 to 105°C
  • capacitance tolerance: ±20%
  • rated voltage: 10 to 400V DC
  • bulk and taped (EEUEB_H/EEUEB_B)

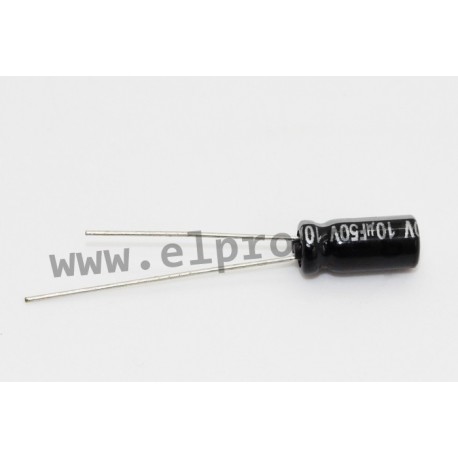

EEUEB1A332, Panasonic electrolytic capacitors, radial, 105°C, EB series

EEUEB1A332

237086 EEUEB1A332 EEUEB1A332 Panasonic electrolytic capacitor series EB. aluminium electrolytic capacitors radial type service life: 5000 to 10 000h (at 105°C) operating temperature 10 to 63V: -40 to +105°C operating temperature 160 to 400V: -25 to 105°C capacitance tolerance: ±20% rated voltage: 10 to 400V DC bulk and taped (EEUEB_H/EEUEB_B)

Specifications

manufacturer
Manufacturer's name EEUEB1A332
Ripple Current (105°C, 100kHz) [mA] 802
Nominal voltage [V DC] 10
Loss factor at 120Hz, 20°C 0,34
Capacity [µF] 3300
Pitch [mm] 5
Dimensions [mm] 12,5x25
Data Sheet

Unit price

0,20 €

Stock: 950
Further delivery:
CW 17/2025

Minimum order quantity 50 units or
multiples of 50.
