ALQ112

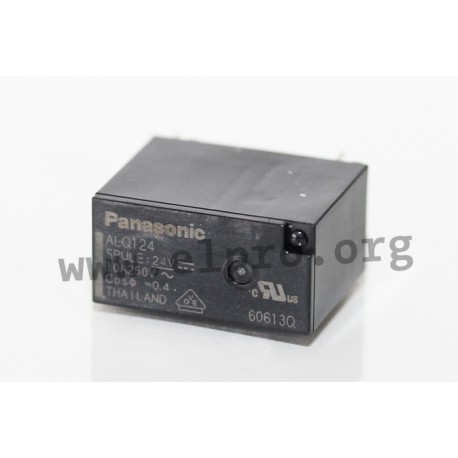

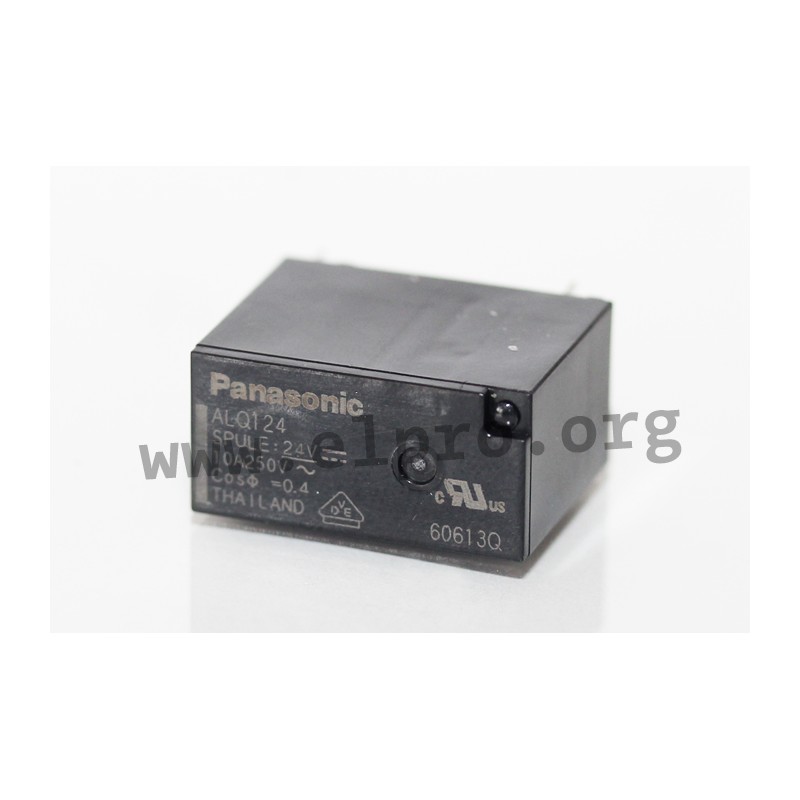

PCB relays series ALQ by Panasonic

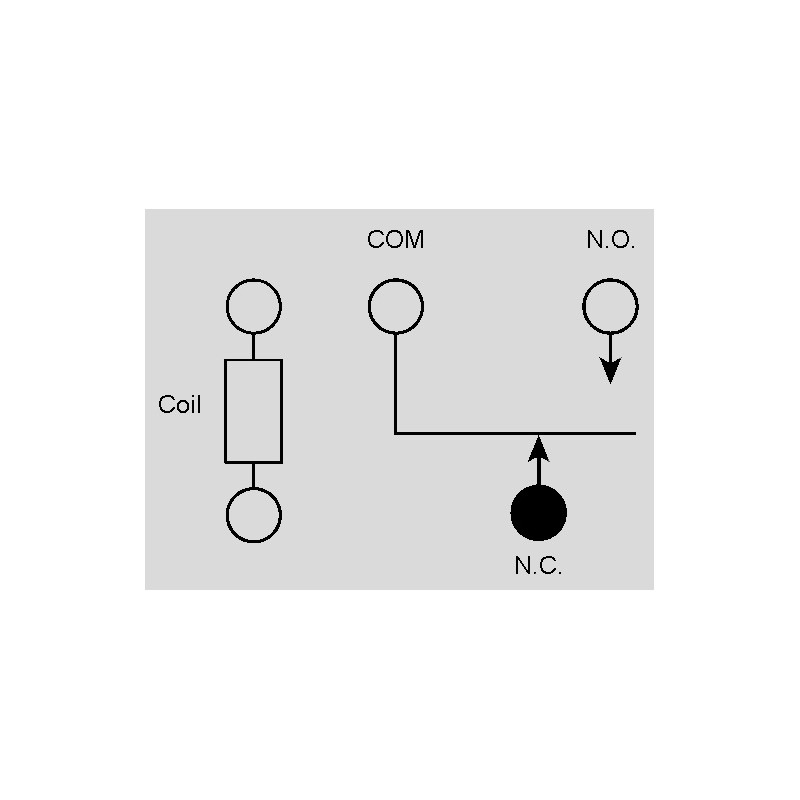

• SPDT
• rated current: 5 A

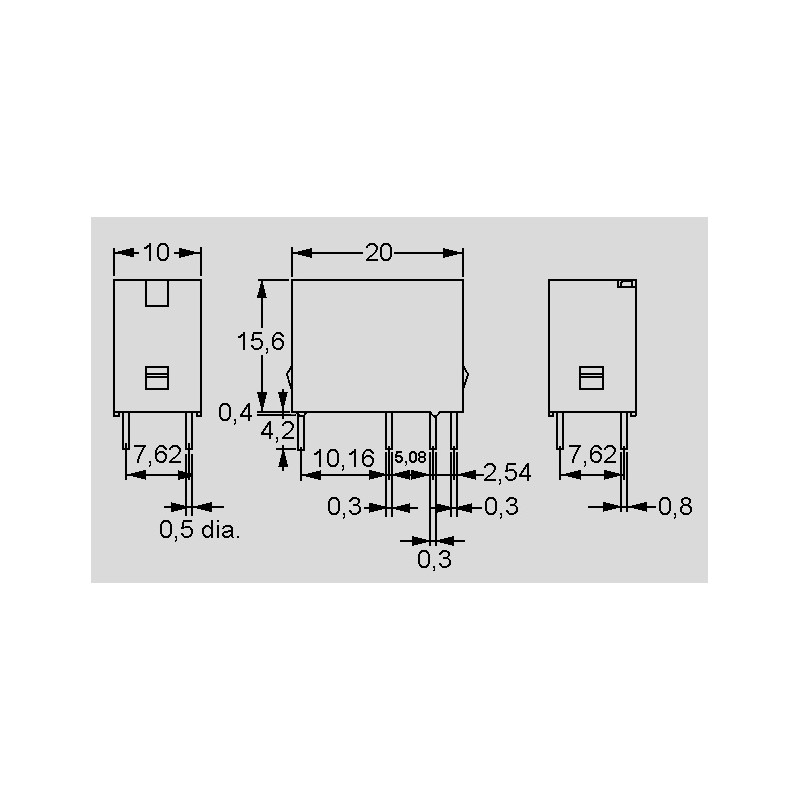

• housing: 20x10x15.6 mm
* compact housing, high switching capacity
* high electrical noise immunity
* 8000 V surge voltage beweeen coil and contact
* high sensibility, 400 mW
* high insulation, min. 4 mm between contact and coil
• contact material: AgNi
* N.O. side - max. switching power: 150 W, 1250 VA
* N.C. side - max. switching power: 30 W, 500 VA
* 250 VA max. switching voltage
* insulation restistance, min.: 1000 MΩ
* 20/20 ms max. operate/release time
• testing voltage coil/contact ( 1 min.): 4000 V AC
• testing voltage open contacts ( 1 min.): 750 V AC
• operation speed (1 min.): max. 20 operations
• mechanical lifetime, min.: 1x106 operations
• operating temperature: -40 to +85 °C
• weight: approx. 7 g

series ALQ by Panasonic

ALQ112

106906 ALQ112 ALQ112 PCB relays series ALQ by Panasonic. • SPDT• rated current: 5 A• housing: 20x10x15.6 mm* compact housing, high switching capacity* high electrical noise immunity* 8000 V surge voltage beweeen coil and contact* high sensibility, 400 mW* high insulation, min. 4 mm between contact and coil• contact material: AgNi* N.O. side - max. switching power: 150 W, 1250 VA* N.C. side - max. switching power: 30 W, 500 VA* 250 VA max. switching voltage* insulation restistance, min.: 1000 MΩ* 20/20 ms max. operate/release time• testing voltage coil/contact ( 1 min.): 4000 V AC• testing voltage open contacts ( 1 min.): 750 V AC• operation speed (1 min.): max. 20 operations• mechanical lifetime, min.: 1x106 operations• operating temperature: -40 to +85 °C• weight: approx. 7 g

Specifications

manufacturer
Manufacturer's name ALQ112
Nominal voltage [V DC] 12
Rated current [mA] 33,3
Coil resistance [Ω] 360
Data Sheet

Unit price

0,837 €

Stock: 1870
Further delivery:
CW 10/2025

Minimum order quantity 10 units or
multiples of 10.
