SI-CLIP 6,3

Osterrath fuse holder halves series 82

  • tinned fuse holder halves made of brass with a nickel-plated surface
  • suitable for microfuses 5x20mm (SI-CLIP 120/82-1487_) resp. 6,3x32mm (SI-CLIP 6,3)
  • made for direct PCB mounting
SI-CLIP 6,3

SI-CLIP 6,3

11485 SI-CLIP 6,3 82-2429-11/0030 82-2429-11/0030 Osterrath fuse holder halves series 82. tinned fuse holder halves made of brass with a nickel-plated surface suitable for microfuses 5x20mm (SI-CLIP 120/82-1487_) resp. 6,3x32mm (SI-CLIP 6,3) made for direct PCB mounting

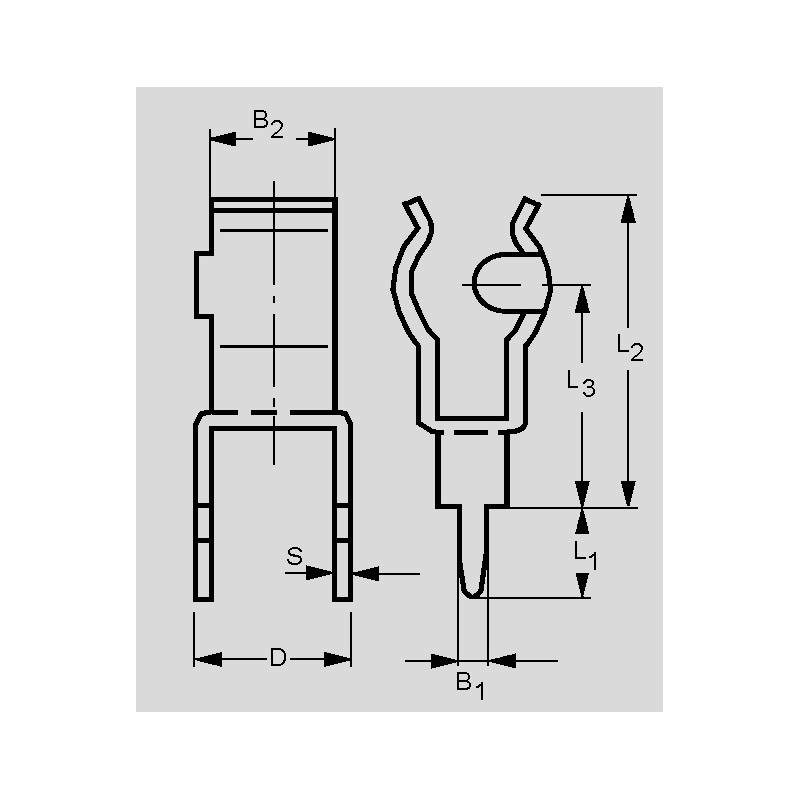

Specifications

manufacturer
Manufacturer's name 82-2429-11/0030
L1 [mm] 3,6
Rated diameter of the fuse [mm] 7,6
L3 [mm] 7,2
L2 [mm] 11
B1 [mm] 1,5
s [mm] 0,5
B2 [mm] 6/7
Data Sheet

Unit price

0,106 €

Stock: 158600
Further delivery:
CW 12/2025

Minimum order quantity 100 units or
multiples of 100.
