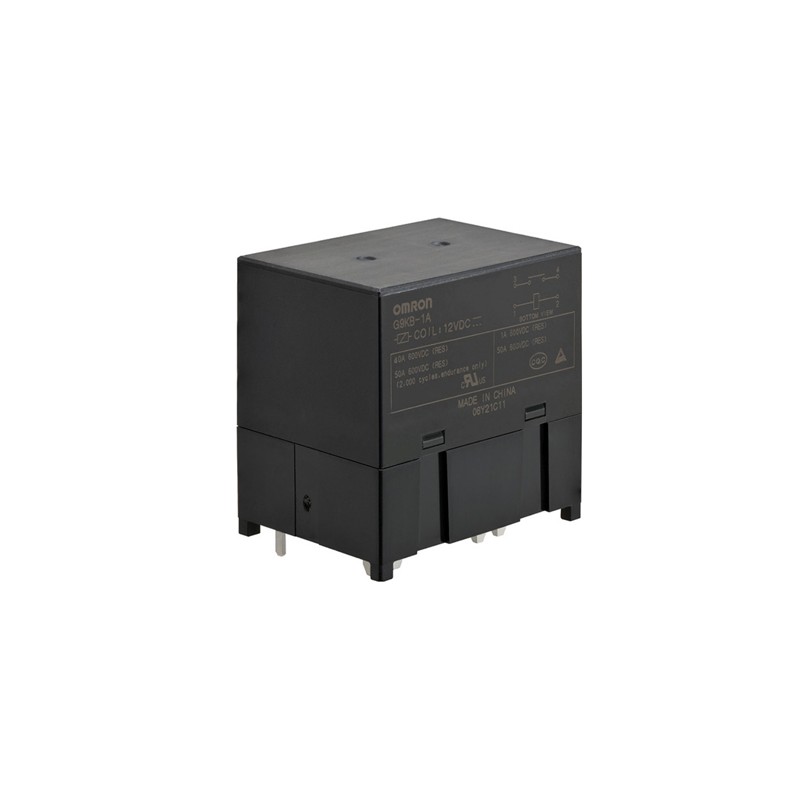

G9KB-1A DC24

Omron relay series G9KB

Relays in a 50,5x50,5x37mm housing with 50A and 1x normally open contact (SPST-NO/bidirectional). These power relays have a contact distance of at least 3,6mm and comply with RTII/IEC61810-1. They are UL60947-4-1 resp. EN61810-10 certified and are suitable for PCB mounting. We offer the following types of this Omron series: G9KB-1A-12VDC and G9KB-1A-24VDC.

  • contact: 1x normally open contact (SPST-NO/bidirectional)
  • contact material: Ag alloy
  • switching current: 50A
  • maximal switching voltage: 600V AC
  • service life mechanical: 1x106 cycles
  • service life electrical 2x103 cycles
  • operating temperature: -40 to +85°C
  • weight: 110g

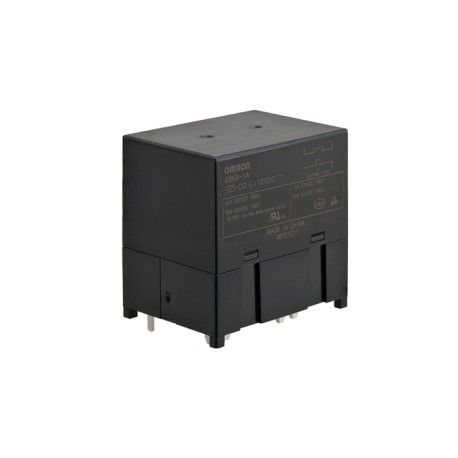

G9KB-1A-24VDC, Omron PCB relays, 50A, 1 normally open contact, G9KB series

G9KB-1A DC24

244170 G9KB-1A DC24 G9KB-1A-24VDC G9KB-1A-24VDC Omron relay series G9KB. Relays in a 50,5x50,5x37mm housing with 50A and 1x normally open contact (SPST-NO/bidirectional). These power relays have a contact distance of at least 3,6mm and comply with RTII/IEC61810-1. They are UL60947-4-1 resp. EN61810-10 certified and are suitable for PCB mounting. We offer the following types of this Omron series: G9KB-1A-12VDC and G9KB-1A-24VDC. contact: 1x normally open contact (SPST-NO/bidirectional) contact material: Ag alloy switching current: 50A maximal switching voltage: 600V AC service life mechanical: 1x106 cycles service life electrical 2x103 cycles operating temperature: -40 to +85°C weight: 110g

Specifications

manufacturer
Manufacturer's name G9KB-1A-24VDC
Nominal voltage [V DC] 24
Coil resistance [Ω] 206
Min. operating voltage [V DC] 18
Max. operating voltage [V DC] 26,4
Nominal capacity [mW] 575
Data Sheet

Unit price

43,19 €

Stock: 5
Further delivery:
CW 22/2025
