G 6 D-1 A 5V

rated current: 5A

* compact design with high switching current 5A
* washable construction

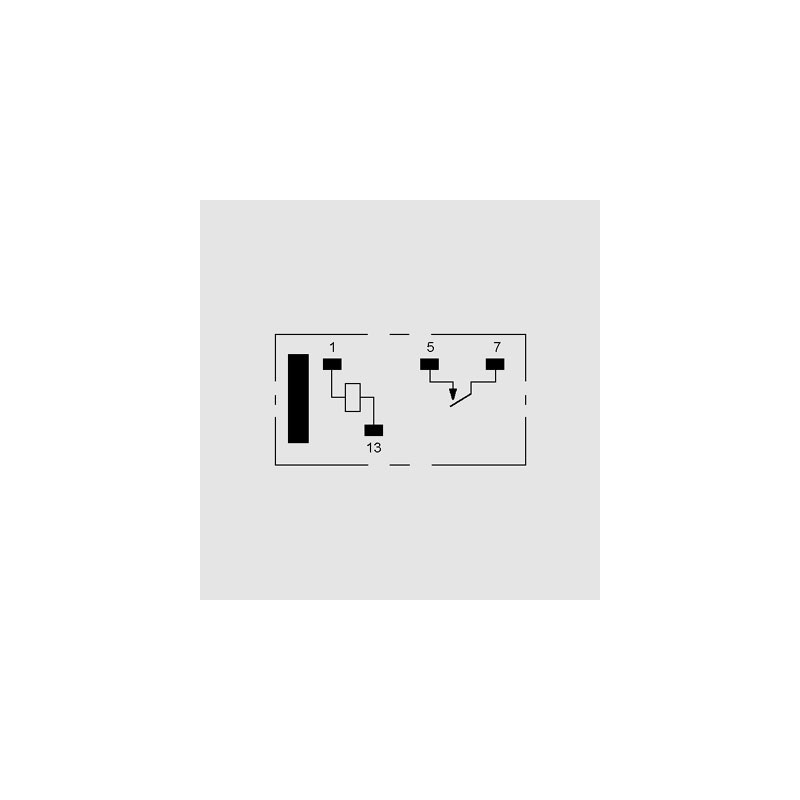

* contact: SPST-NO
* contact material: AgSnIn
* rated current: 5A
* max. switching current: 5A
* max. switching voltage: 250V AC / 30V DC
* max. switching power: 1250VA / 150W
* operate/release time: 10/5ms
* testing voltage
coil/contact: 3000V AC
contact/contact: 750V AC
* lifetime
mechanical: 20x106 operations
electrical: 70x103 operations
* operating temperature: -25...+70°C
* weight approx.: 3g

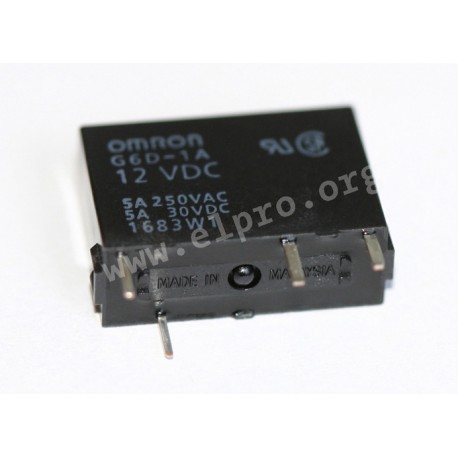

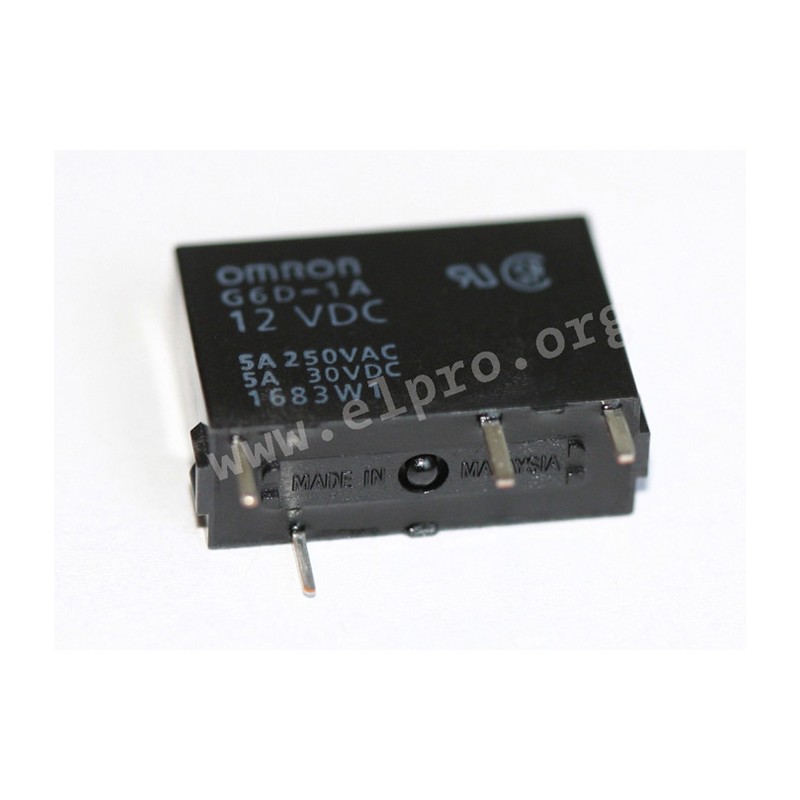

Omron G6D series

G 6 D-1 A 5V

11965 G 6 D-1 A 5V G6D-1A-ASI DC5 G6D-1A-ASI DC5 rated current: 5A. * compact design with high switching current 5A* washable construction* contact: SPST-NO* contact material: AgSnIn* rated current: 5A* max. switching current: 5A* max. switching voltage: 250V AC / 30V DC* max. switching power: 1250VA / 150W* operate/release time: 10/5ms* testing voltagecoil/contact: 3000V ACcontact/contact: 750V AC* lifetimemechanical: 20x106 operationselectrical: 70x103 operations* operating temperature: -25...+70°C* weight approx.: 3g

Specifications

manufacturer
Manufacturer's name G6D-1A-ASI DC5
Response voltage [V] 3,5...8
Max. switching voltage [V] 250
Data Sheet

Unit price

1,34 €

Stock: 578
Further delivery:
CW 26/2025

Minimum order quantity 1 to 3 units or multiples of 25 plus 0 to 3 .
