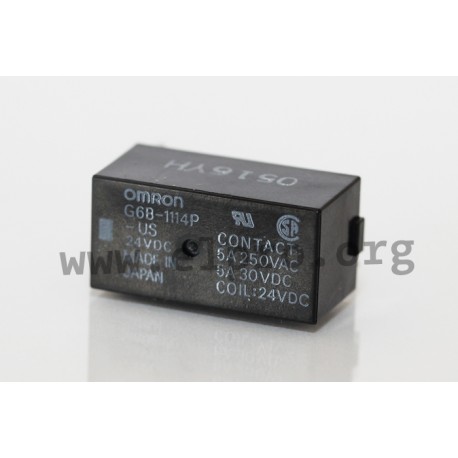

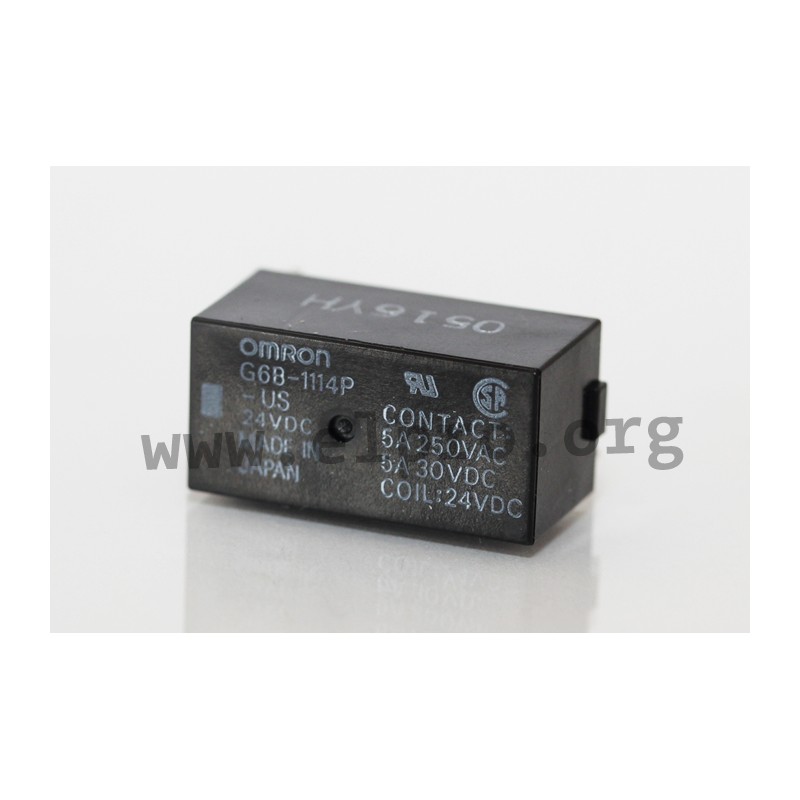

G6B-1114P-US 24DC

PCB relays series G6B by Omron

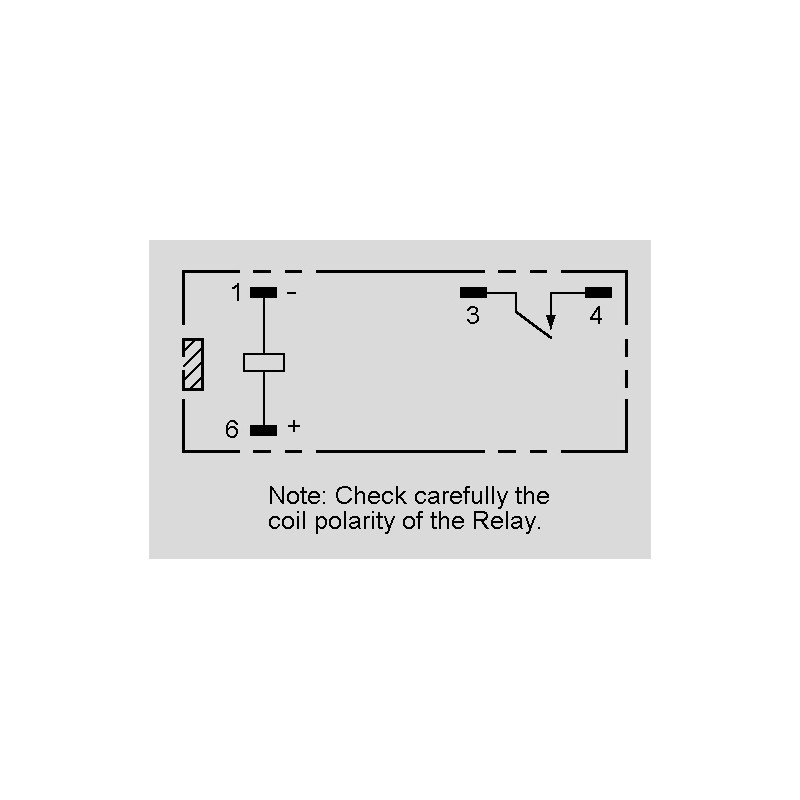

• SPST-NO
• rated current: 5 A

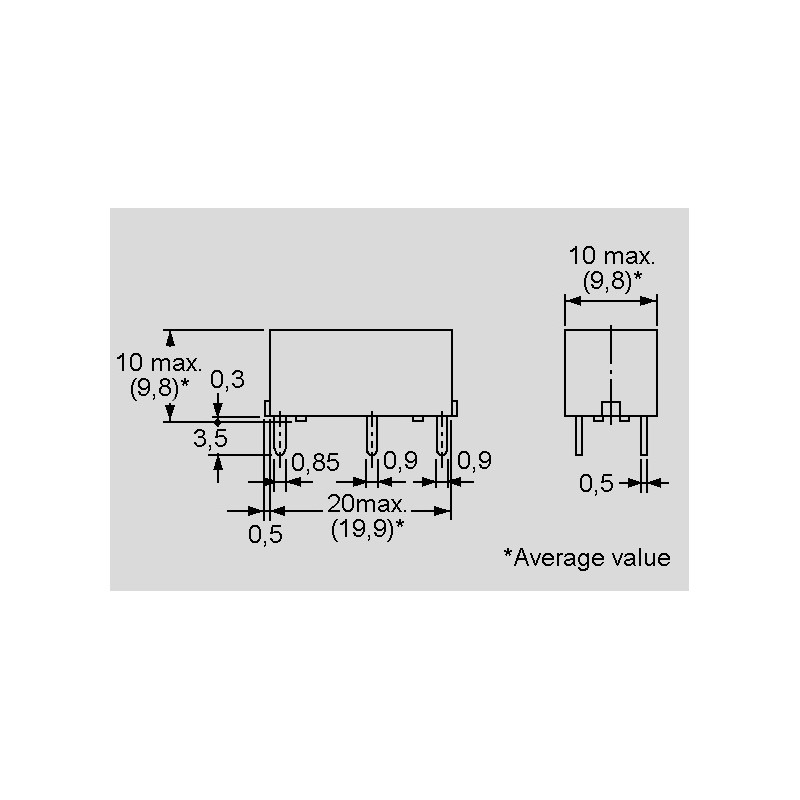

• housing: 20x10x10 mm
* miniature PCB power relays
* high dielectric strength and high capacity
* high sensitive coil, 98 mW
* high insulation
* dielectric strength of 3000 V AC between coil and contacts
* 6 kV impulse withstand voltage
• wash tight construction RTII
• for example to use for applications in building automation and security (temperature control and ventilation), at home (white goods for food preparation and preservation, gas and electric boilers), energy (smart meters, solar PV systems), healthcare and medical (ultrasound)
• contact material: Ag-alloy, Cd free
• max. switching voltage: 125 V DC, 380 V AC
• operate/release time: 10/10 ms
• testing voltage coil/contact, 1 min.: 3000 VRMS
• testing voltage contact/contact, 1 min.: 1000 VRMS
• mechanical lifetime, min.: 50x106 operations
• electrical lifetime, min.: 10x104 operations
• operating temperature: -25 to +70 °C
• weight: approx. 3,5 to 4,6 g

G6B-1114P-US 24DC

G6B-1114P-US 24DC

106921 G6B-1114P-US 24DC G6B1114PUS24DC G6B1114PUS24DC PCB relays series G6B by Omron. • SPST-NO• rated current: 5 A• housing: 20x10x10 mm* miniature PCB power relays* high dielectric strength and high capacity* high sensitive coil, 98 mW* high insulation* dielectric strength of 3000 V AC between coil and contacts* 6 kV impulse withstand voltage• wash tight construction RTII• for example to use for applications in building automation and security (temperature control and ventilation), at home (white goods for food preparation and preservation, gas and electric boilers), energy (smart meters, solar PV systems), healthcare and medical (ultrasound) • contact material: Ag-alloy, Cd free• max. switching voltage: 125 V DC, 380 V AC• operate/release time: 10/10 ms• testing voltage coil/contact, 1 min.: 3000 VRMS• testing voltage contact/contact, 1 min.: 1000 VRMS• mechanical lifetime, min.: 50x106 operations• electrical lifetime, min.: 10x104 operations• operating temperature: -25 to +70 °C• weight: approx. 3,5 to 4,6 g

Specifications

manufacturer
Manufacturer's name G6B1114PUS24DC
Nominal voltage [V DC] 24
Coil resistance [Ω] 2880
Response voltage [V] 16,8
Release voltage [V] 2,4
Data Sheet

Unit price

1,89 €

Stock: 510
Further delivery:
CW 38/2025

Minimum order quantity 10 units or
multiples of 10.
