G5V-1 12V

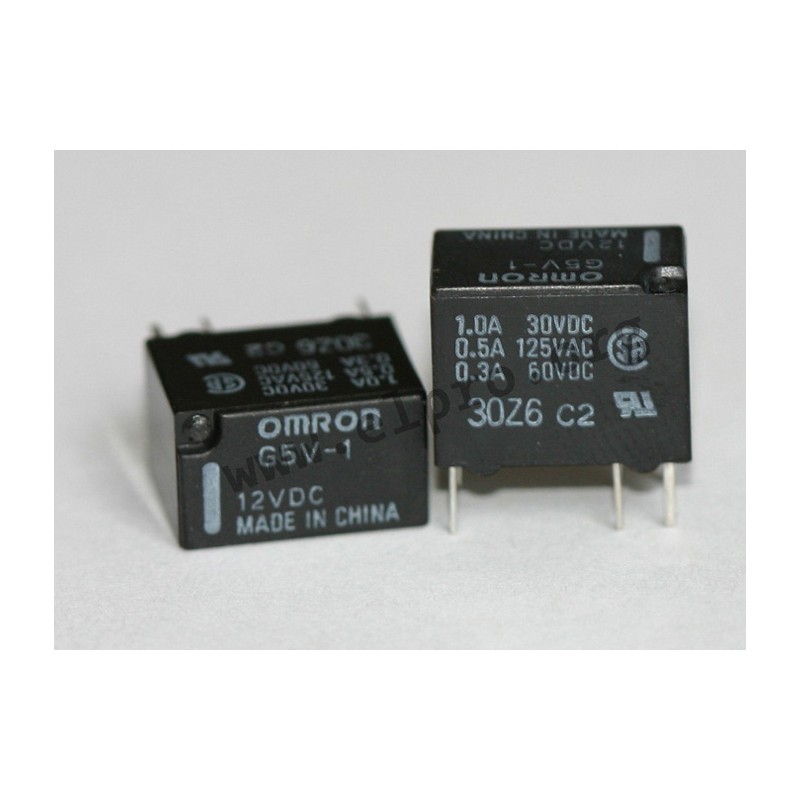

Omron PCB relay series G5V-1

PCB relays in a 12,5x7,5x10mm housing with 1A and 1x changeover contact (SPDT). These relays are wash tight and suitable for PCB mounting. They have a highly sensitive coil, gold-plated silver contacts and are insertable in a 10-pole IC socket. We offer the following types of this Omron series: G5V-1 3V, G5V-1 5V, G5V-1 12V and G5V-1 24V.

  • contact: 1x changeover (SPDT)
  • switching current: 1A
  • maximal switching voltage: 125V AC / 60V DC
  • switching power: 30W / 62,5VA
  • operating temperature: -40 to +70°C
  • weight: 2g
Omron G5V-1 series

G5V-1 12V

11977 G5V-1 12V G5V-1 DC12 G5V-1 DC12 Omron PCB relay series G5V-1. PCB relays in a 12,5x7,5x10mm housing with 1A and 1x changeover contact (SPDT). These relays are wash tight and suitable for PCB mounting. They have a highly sensitive coil, gold-plated silver contacts and are insertable in a 10-pole IC socket. We offer the following types of this Omron series: G5V-1 3V, G5V-1 5V, G5V-1 12V and G5V-1 24V. contact: 1x changeover (SPDT) switching current: 1A maximal switching voltage: 125V AC / 60V DC switching power: 30W / 62,5VA operating temperature: -40 to +70°C weight: 2g

Specifications

manufacturer
Manufacturer's name G5V-1 DC12
Rated current [mA] 12,5
Nominal resistance [Ω] 960
Response voltage [V] 9,6
Max. switching voltage [V] 125
Max. switching power [VA] 62,5
Data Sheet

Unit price

0,851 €

Stock: 3949
Next incoming goods:
CW 06/2025
2000 units

Further delivery:
CW 24/2025

Minimum order quantity 1 to 4 units or multiples of 25 plus 0 to 4 .
